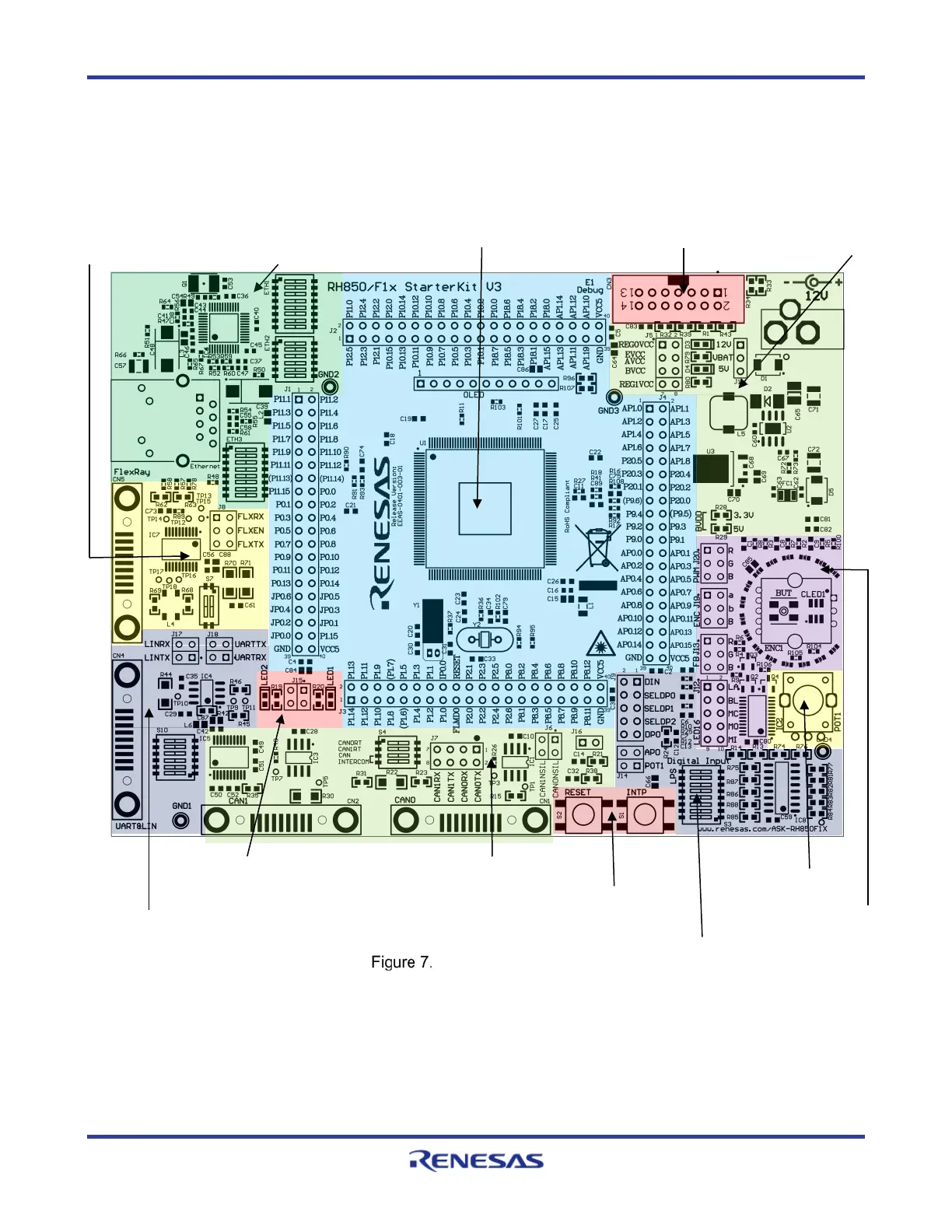

4.2 Functional Areas
The functional areas provide various circuits and components useful for interacting with the
microcontroller’s I/O:
Functional Areas
Shared LIN and RS232 Area
Reset and Interrupt Pushbuttons
Potentiometer
Debug Connector
Mikrocontroller Area
Power Supply Area
Indicator LEDs
FlexRay Area
(Only
available for RH850/F1H,
F1KM-S4 and F1KH-D8 )
2 Channel CAN Area
Analog and digital
input area (LPS)
Rotary Encoder with
RGB LED and push
button
Ethernet Area
(Only
available for RH850/F1H,
F1KM-S4 and F1KH-D8)

Renesas RH850 F1 Series Specifications

General

Core	RH850
Bit Size	32-bit
Operating Temperature	-40°C to +125°C
Category	Microcontroller
Series	RH850 F1
Package	LQFP
