Renesas RH850/F1Kx Series User Manual

Y-RH850-F1X-100PIN-PB-T1-V3 User’s Manual
R20UT3959ED0101, Rev. 1.01 8
2019-11-27

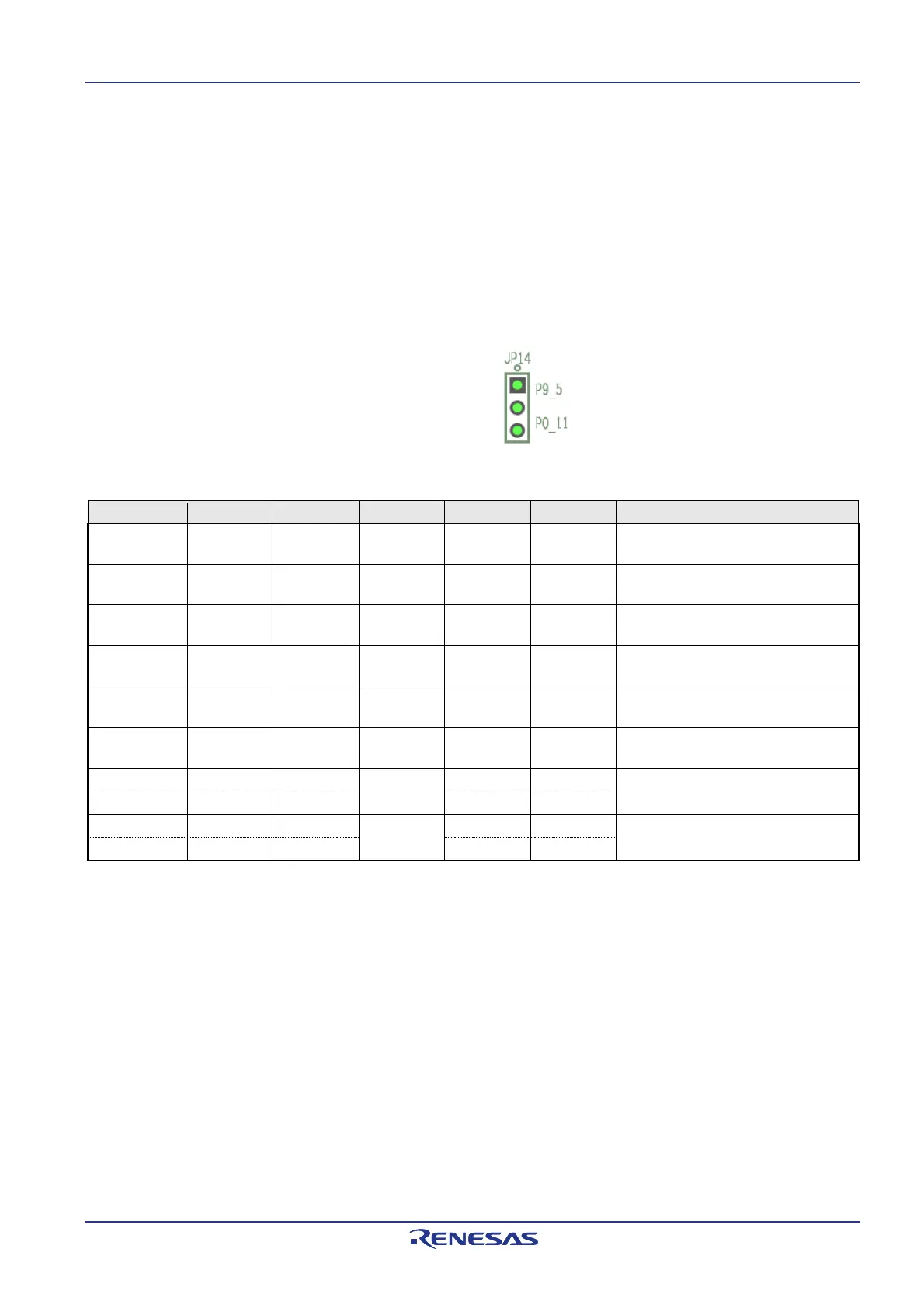

Chapter 3 Jumper Configuration
The function of the board can be configured via jumpers. This chapter describes
the standard configuration, i.e. jumper setting for the intended devices. For the
supported function of the used device, please refer to the corresponding HW
user’s manual.
The table has the following meaning:
• x-y: Connect the pins x and y; valid for 3-pin jumpers (e.g. JP14)
The pin #1 can be identified by a small circle in the vicinity of the jumper.
Depending on the used device a configuration of several jumpers is required. The
detailed configuration is shown below:
Jumper
F1L
R1L
F1K
F1KM-S1
F1KM-S4
Function
JP3
1-2
1-2
1-2
1-2
2-3
Selection pin pin #4:
Either P10_15 or ISOVCL
JP5
1-2
1-2
1-2
1-2
2-3
Selection pin pin #5:
Either P11_0 or VSS
JP7
1-2
1-2
1-2
1-2
2-3
Selection pin pin #42:
Either P8_0 or VSS
JP8
1-2
1-2
1-2
1-2
2-3
Selection pin pin #43:
Either P8_1 or ISOVCL
JP12
1-2
1-2
1-2
1-2
2-3
Selection pin pin #74:
Either P9_5 or VSS
JP13
1-2
1-2
1-2
1-2
2-3
Selection pin pin #75:
Either P9_6 or REGVCC
JP14 1-2
Close
-
Either - or
-
-
Selection of PWM34
JP14 2-3
-
-
Close
Close
Either from P9_5 or P0_11
JP15 1-2
Close
-
Either - or
-
-
Selection of PWM35
JP15 2-3
-
-
Close
Close
Either from P9_6 or P0_6
The jumper settings also are shown in the picture on the next page.
