3.1.3 Mic-in Pin Jack (CN3)
RTK79210XXB00000BE is equipped with the mic-in pin jack (CN3).

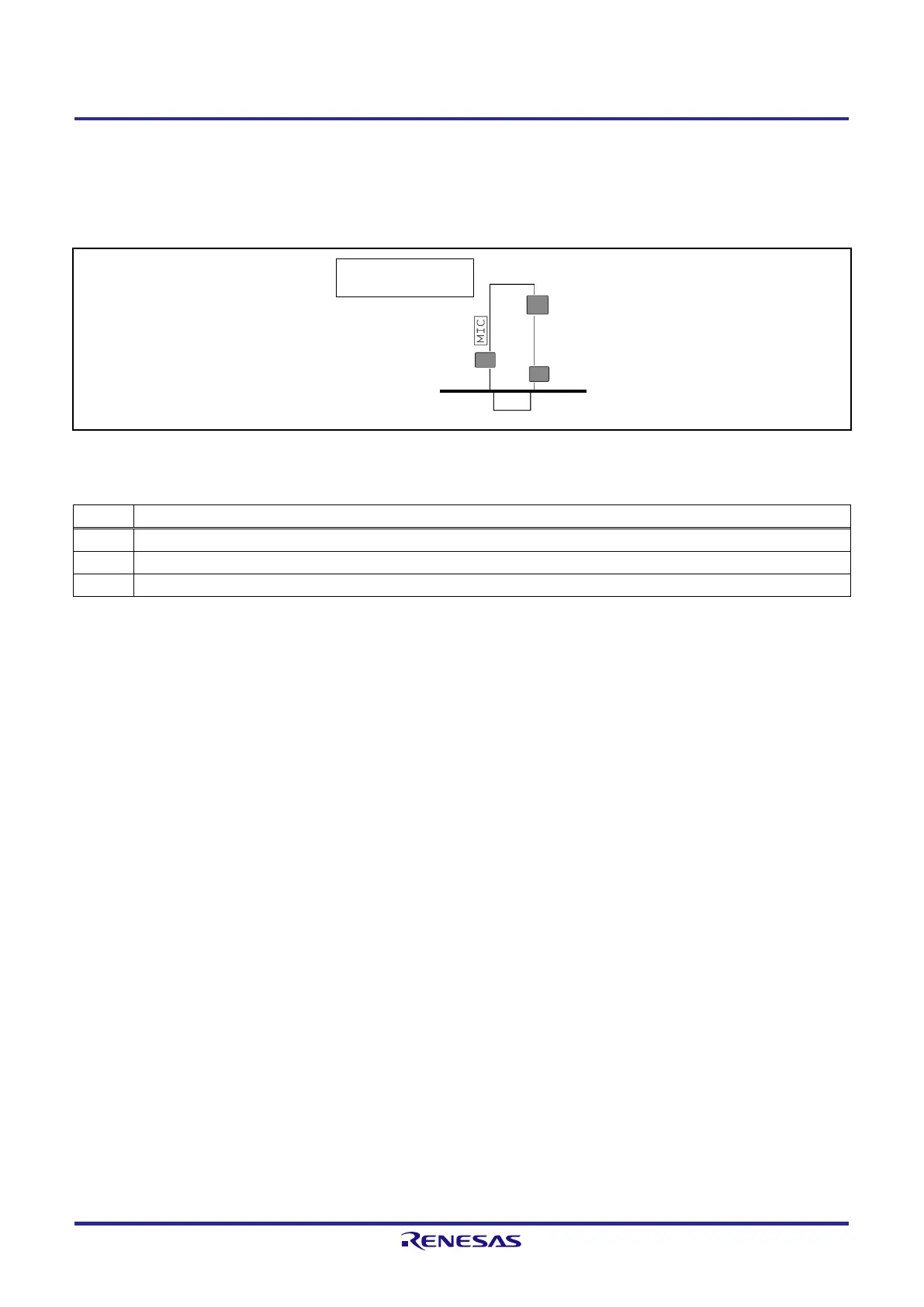

Figure 3.1.5 shows the mic pin jack layout diagram, and Table 3.1.5 shows the mic-in pin jack layout table.
Figure 3.1.5 Mic-in Pin Jack (CN3) Layout Diagram
Table 3.1.5 Mic-in Pin Jack (CN3) Layout Table
Pin
Signal name
1
GND (AVss)
2
L2 (audio CODEC Lch analog input pin)
3
R2 (audio CODEC Rch analog input pin)
1
2
3
CN3
C side top view
