Renesas RTK79210**B00000BE User Manual

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-13
2018.10.11
3.1.7 SD Card Slot (CN10)
RTK79210XXB00000BE is equipped with the SD card slot (CN10).

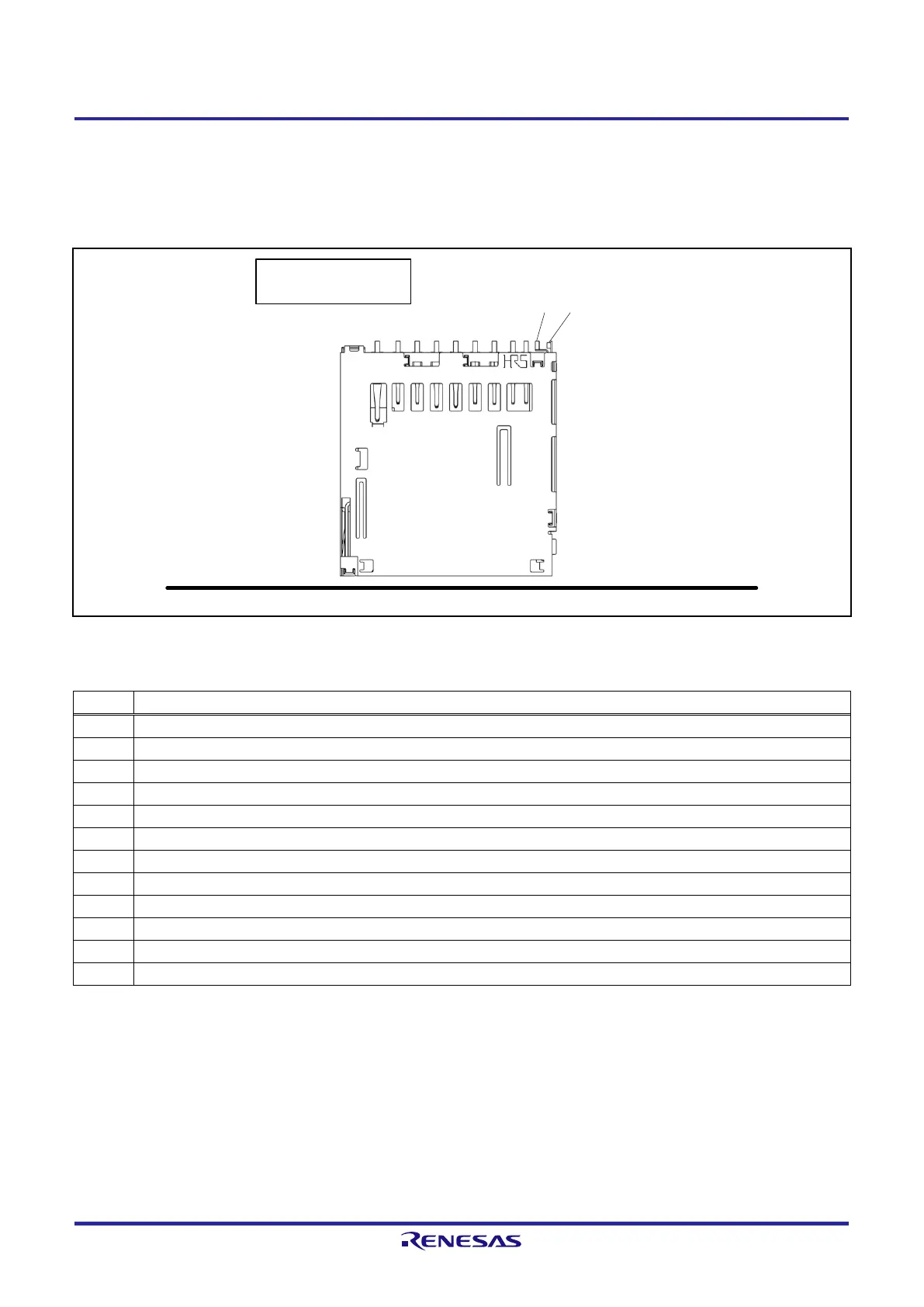

Figure 3.1.9 shows the SD card slot pin layout diagram, and Table 3.1.9 shows the SD card slot pin layout table.
Figure 3.1.9 SD Card Slot (CN10) Pin Layout Diagram
Table 3.1.9 SD Card Slot (CN10) Pin Layout Table
Pin
Signal name
1
CD/DAT3 (SD1_DAT3)
2
CMD (SD1_CMD)
3
VSS1 (Vss)
4
VDD (+3.3V)
5
CLK (SD1_CLK)
6
VSS2 (Vss)
7
DAT0 (SD1_DAT0)
8
DAT1 (SD1_DAT1)
9
DAT2 (SD1_DAT2)
10
Write_Protect (P5_5 / SD1_WP)
11
Card_Detect (P5_4 / SD1_CD)
12
COMMON (Vss)
[Note] Red characters indicate functions in use.
19 2 3 4 5 6 78
CN10
10
1211
S side top view
