RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-11
2018.10.11
3.1.5 Serial Board Connector (CN5)
RTK79210XXB00000BE is equipped with a serial board (USB Micro-B) connector (CN5).
Figure 3.1.7 shows the serial board connector pin layout diagram, and Table 3.1.7 shows the serial board connector pin
layout table.

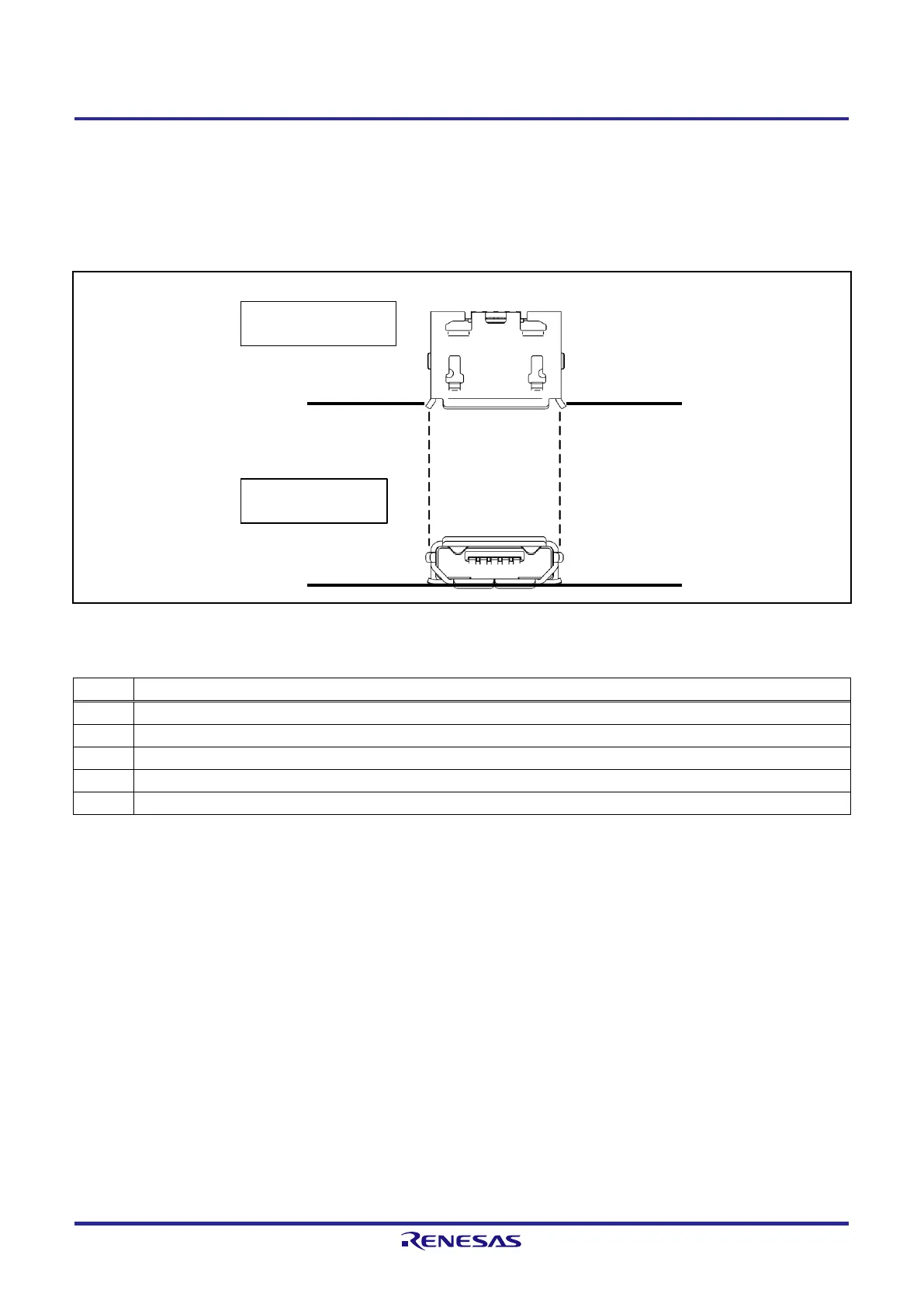

Figure 3.1.7 Serial Board Connector (CN5) Pin Layout Diagram
Table 3.1.7 Serial Board Connector (CN5) Pin Layout Table
Pin
Signal name
1
VBus (UVBUS)
2
D- (UDM0)
3
D+ (UDP0)
4
ID (NC)
5
GND (Vss)
CN5
1
5
Side view
C side top view
