CHAPTER 3 SOFTWARE CONFIGURATION
Application Note U17209EJ1V0AN
37

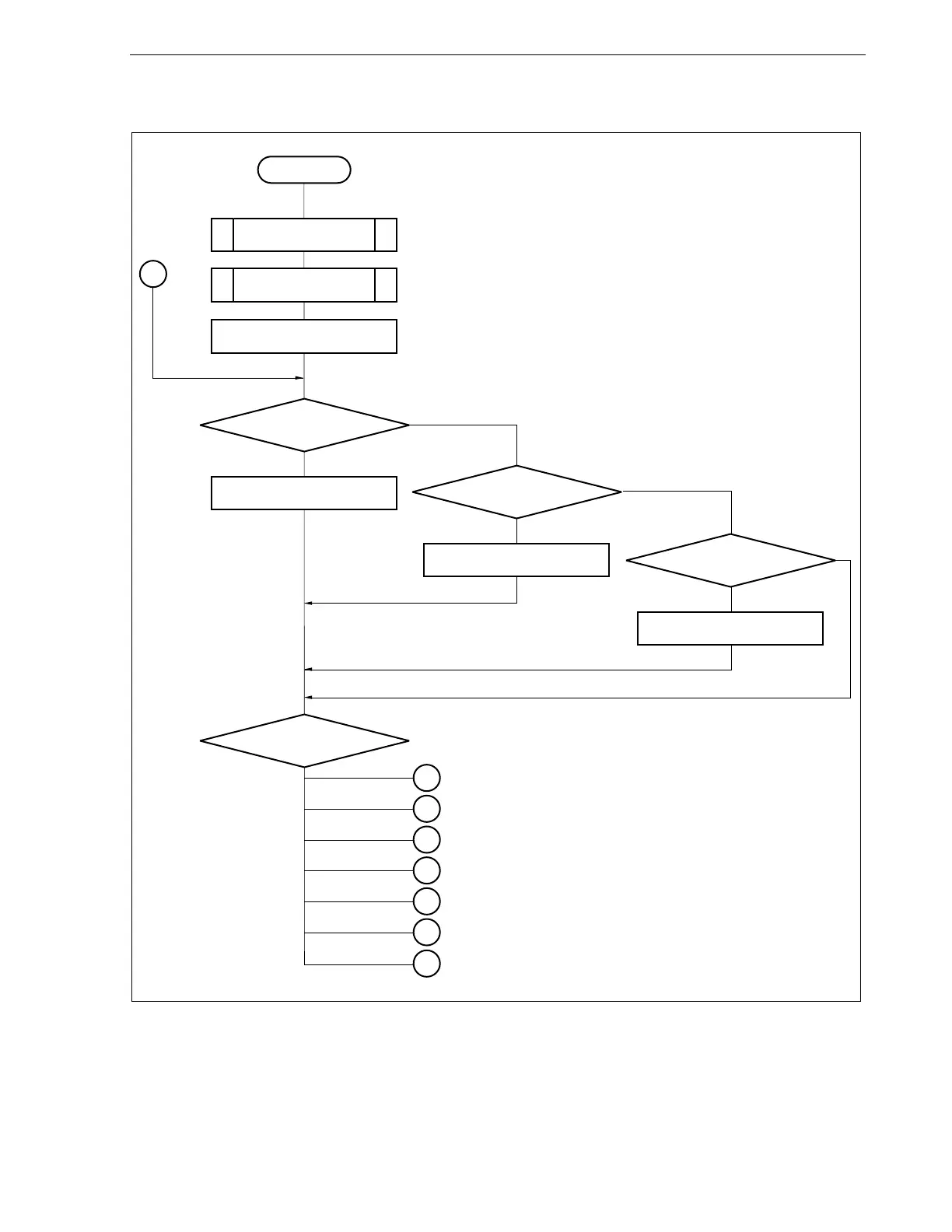

Figure 3-4. Main Processing
START
hinit
(hardware initialization)
ainit
(used area initialization)
Enable interrupts
: Refer to Figure 3-20 Hardware Initialization.
: Refer to 4.1.5, 4.2.5, 4.3.5, 4.4.5, 4.5.5 Main processing function.
: Refer to Figure 3-21 Common Area Initialization.
SW CW pressed?
Case?
(case 0 to case 7)
SW mode = CW
SW CCW pressed?
SW mode = CCW
SW STOP pressed?
SW mode = STOP
0
1
2
3
4
5
6
C
No
Yes
No
Yes
No
Yes
