4. Installation
4.1 Unpacking
⇒ Take the unit and all the accessories out of the package.
⇒ Check to ensure all delivery parts are complete (compare “Included in Delivery”).
4.2 Setting up
⇒ Place the unit on a level and stable base.
4.3 Connect foot switch
The following tubes (30, 31) are already connected to the foot switch.
4.3.1 2 Tank version:
⇒ Push the tube marked „A“ (30) as far as it will go into the tube
connection point „A“ (13).
⇒ Push the tube marked „B“ (31) as far as it will go into the tube
connection point „B“ (19).
When inserting the tubes you will notice a slight resistance which
must be overcome.
4.3.2 1 Tank version:
⇒ Push the tube marked „A“ (30) as far as it will go into the tube
connection point „A“ (13).
⇒ Push the tube marked „B“ (31) as far as it will go into the tube
connection point „B“ (22) (on sandblasting tank).
When inserting the tubes you will notice a slight resistance which
must be overcome.
4.4 Compressed air connection
⇒ Push the compressed air tube (11) onto the tube connection
point (14) as far as it will go. In doing so there will be a slight
resistance to overcome.
⇒ Select the relevant hose connection piece from the enclosed
attachmentsetandtitontotheendofthetube.
⇒ Attach to the compressed air network.

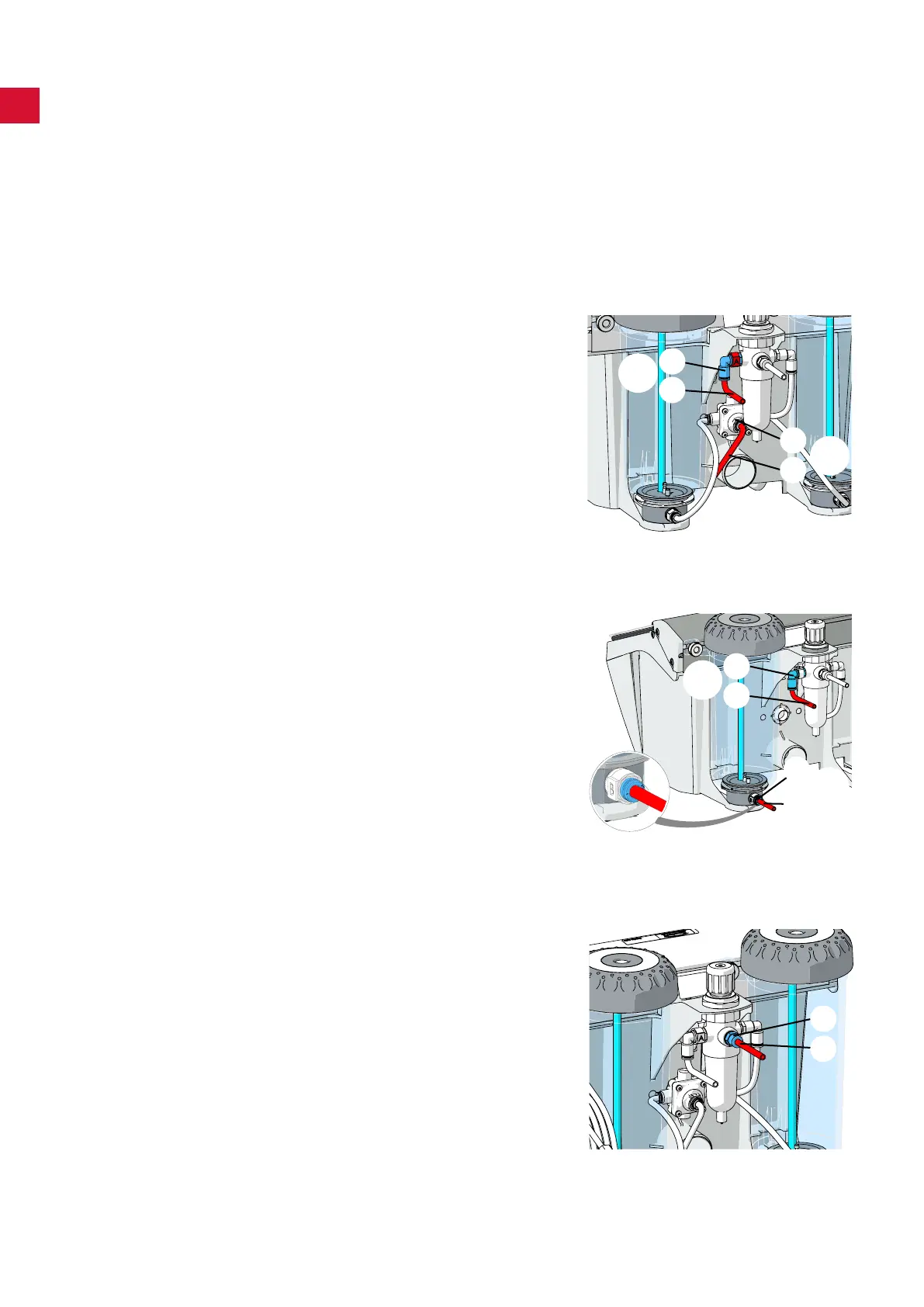

Fig. 2
19
31
A
B
13
30
Fig. 3
22
31
13
30
A
B
Fig. 4
11
14
