Renishaw PH20 - PH20 Mounting

PH20Mounting

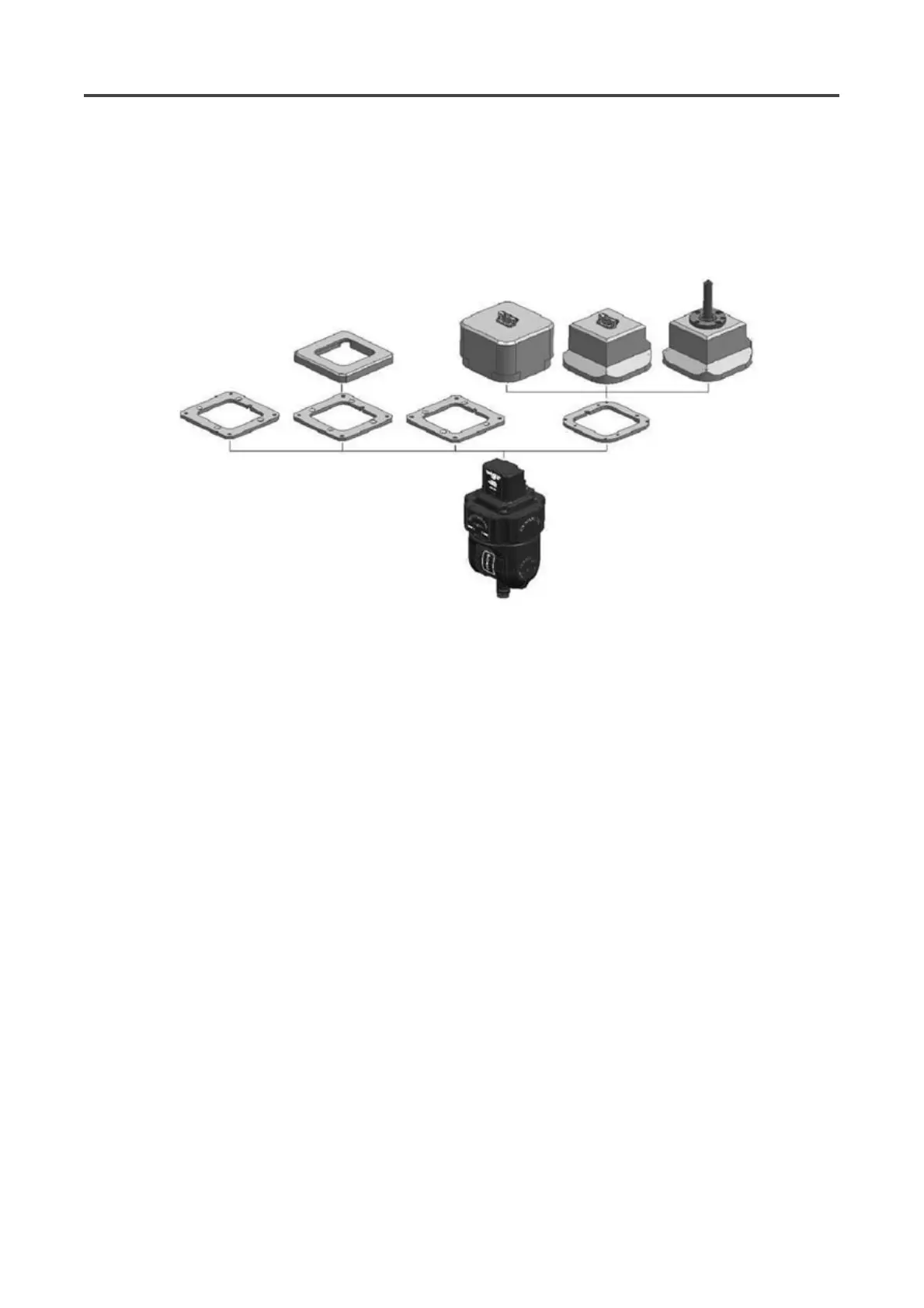

A range of mounting adaptors have been developed for use with PH20. Other variants can be manufactured
on request.
Dimensions for each type of mounting adaptor are available on the knowledgebase web pages for each
adaptor type.
