The standard force probe modules (SF, EM1 STD and EM2 STD) can be used with the following range of styli:
 Steel and carbide styli up to 40 mm long.
 Renishaw graphite fibre (GF) type styli up to 50 mm long.
 Star and cranked styli up to 20 mm offset.

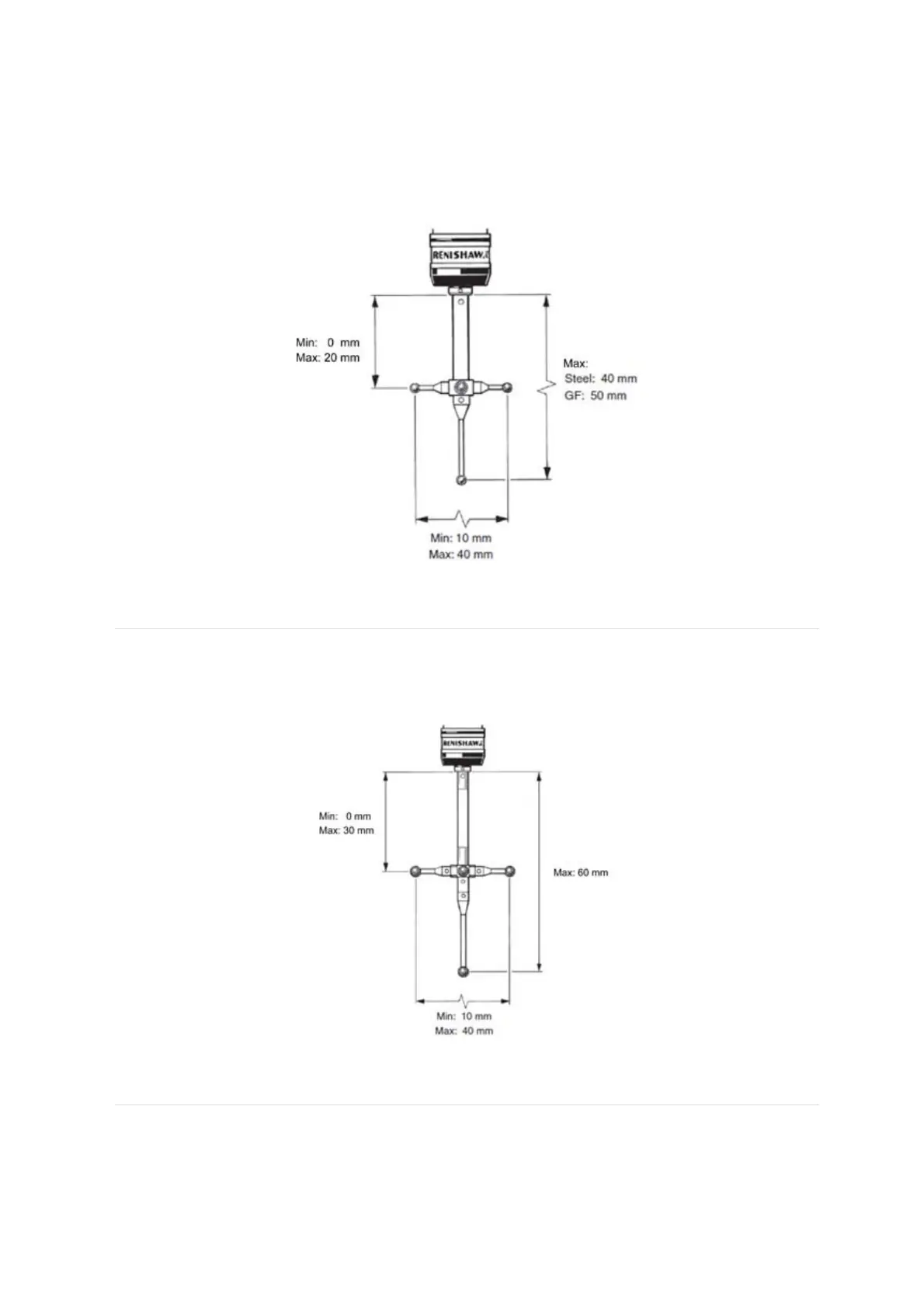

Figure 2 - Recommended stylus limits for standard force probe modules
Themediumforceprobemodules
The medium force probe modules have the following recommended stylus limits:
 Any stylus type up to 60 mm long.
 Star and cranked styli up to 20 mm offset.
Figure 3 - Recommended stylus limits for medium force probe modules
The6‐wayprobemodule
The recommended stylus limits for the 6-way probe module are:
 Any stylus type up to 30 mm long
