Star and cranked styli up to 10 mm offset

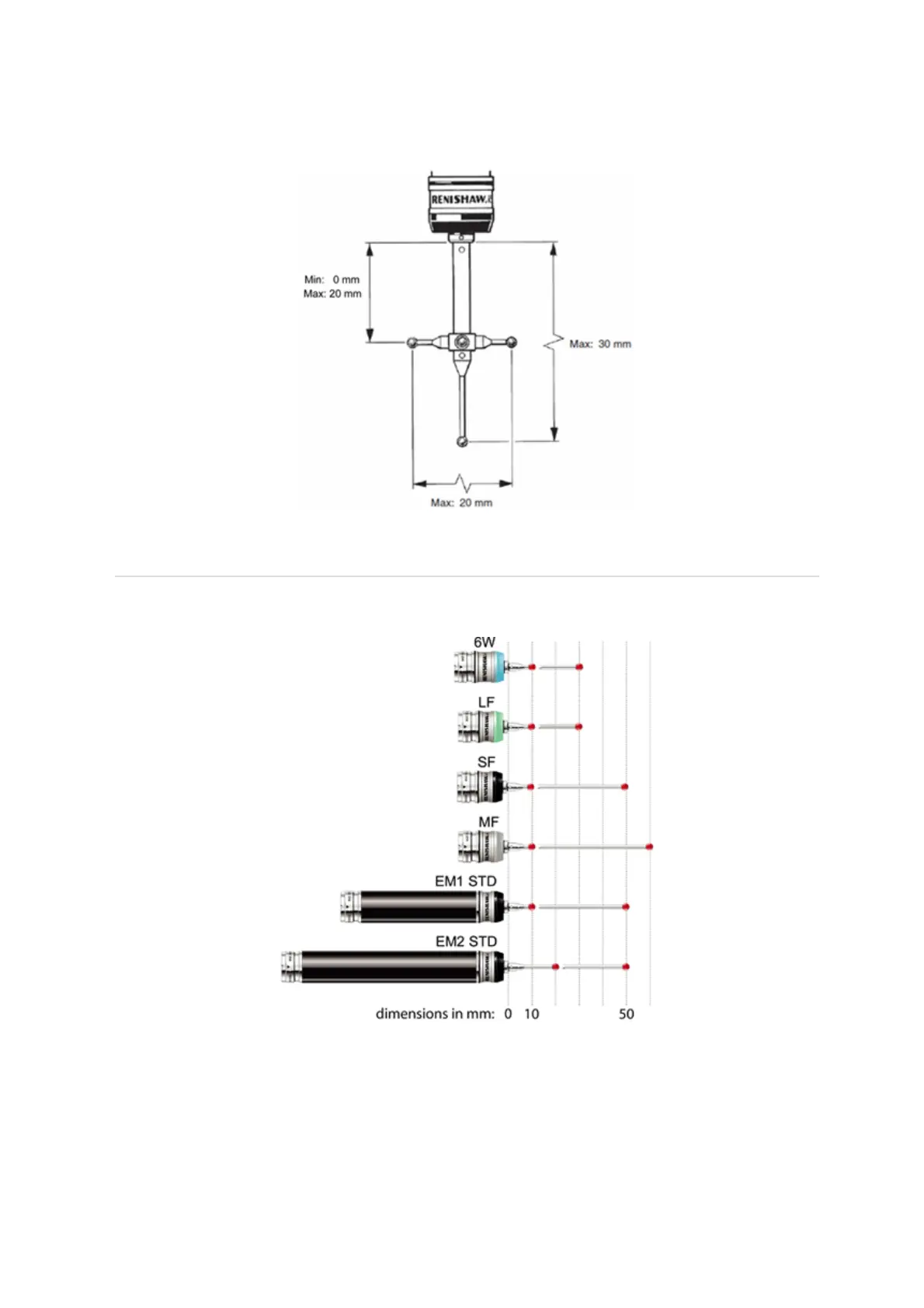

Figure 4 - Recommended stylus limits for 6-way probe module
Comparativestyluslengths
A comparison of the minimum and maximum stylus lengths for use with each probe module is shown in figure
5.
Figure 5 - Comparative stylus lengths
