Renishaw TS20 - TS20 mounted on an automatic arm with MI 8-4, HSI, or HSI-C interface; Probe - cable options

2-2
TS20 probe system: TS20 basics

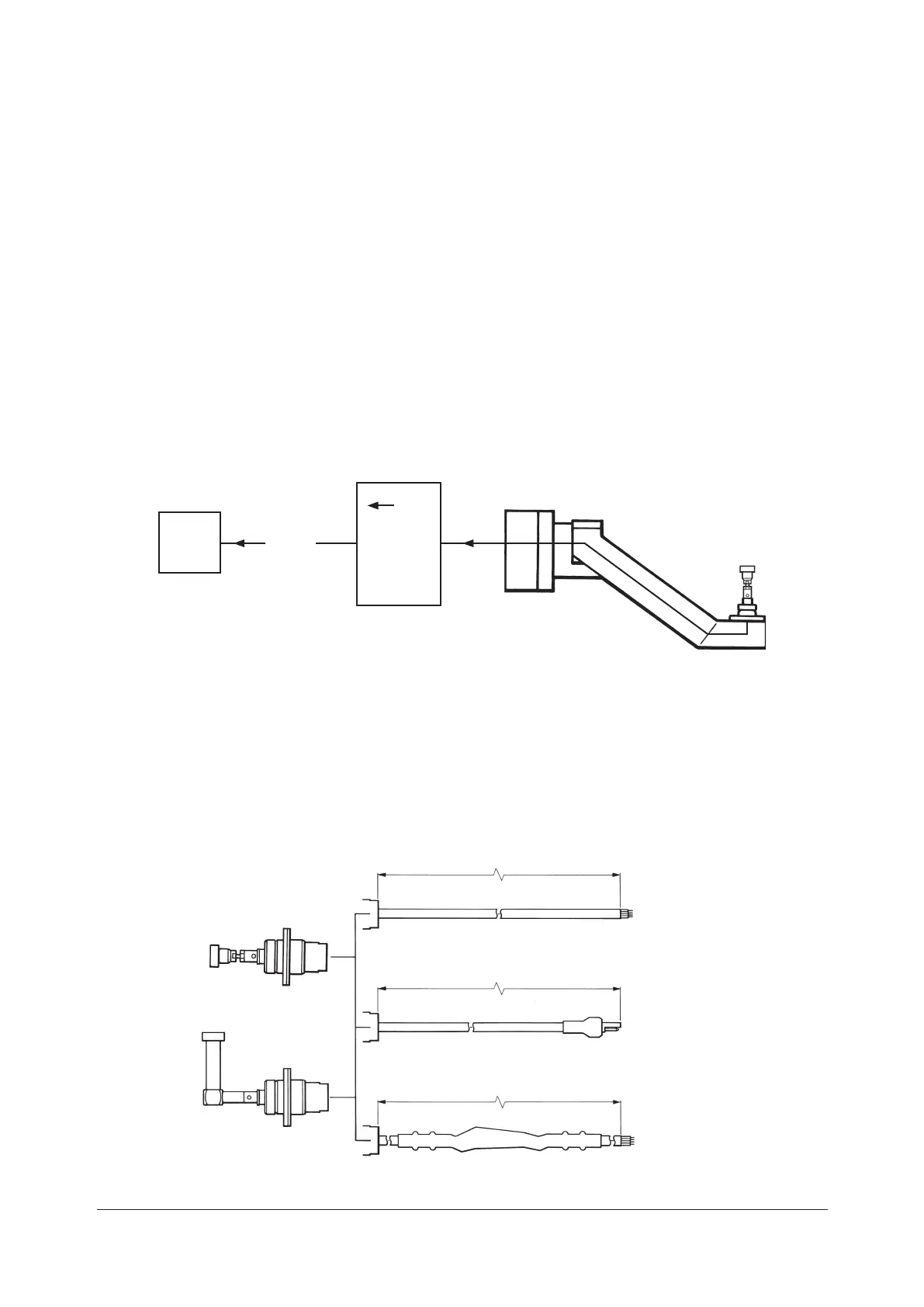

TS20 mounted on an automatic arm with MI 8-4, HSI, or HSI-C interface
MI 8 interface
An inhibit input enables an optical transmission type inspection probe and interface to be used on the
same machine input as the TS20.
MI 8-4 interface
Where an inspection probe with optical transmission and an MI 12 interface, are used on the same
machine as the TS20, the MI 8-4 interface is recommended.
The MI 8-4 interface accepts the probe output signal from the MI 12 interface. The user can then select
between inspection or tool setting probe outputs by selecting an ‘M’ code.
MI 8-4
interface
CNC
machine
control
SSR
output
Probe - cable options
Cable is four core 7/0.2 polyurethane insulated and screened. Cable diameter 4.4mm (0.17in). Probe
circuit - red and blue cores (yellow and green are not used).
Ensure the probe cable is routed away from other cables carrying high currents.
TS20 probe with cable
TS20 probe with cable and Lemo connector
TS20 probe with
straight stylus
TS20 probe with
cranked stylus
TS20 probe with cable and signal conditioning module (SCM)
Signal conditioning module
5000mm (16.4ft)
350mm (13.8in)
3360mm (11ft)
Lemo connector
