Renishaw TS20 - TS20 probe with cranked stylus for applications where the straight stylus is not suitable

3-3
www.renishaw.com/ts20

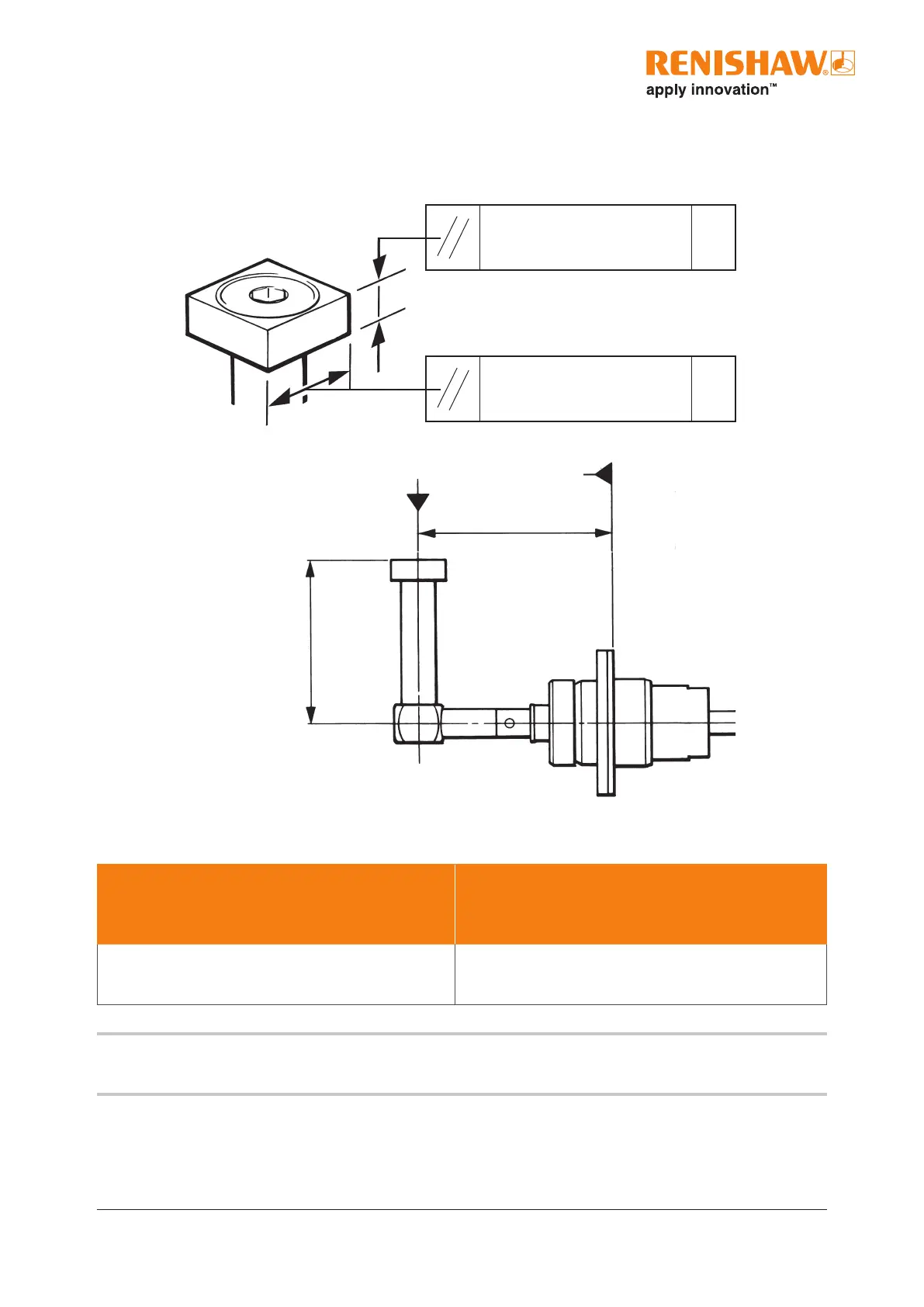

TS20 probe with cranked stylus for applications where the straight
stylus is not suitable
0.02 mm (0.0008 in) in Z
direction
A
Non probing direction
39mm (1.53in)
34mm
(1.34in)
0.03 mm (0.0012 in) in X
direction
A
A
Uni-directional repeatability 2σ
At a probing speed of 480 mm/min (1.57 ft/min)
Trigger force
(dependent on sense direction)
2µm
(0.00008in)
0.6 - 1.6N
60 - 160gf
(2.12 - 5.64ozf)
NOTE: The characteristics of cranked styli do not allow them to have as good a repeatability performance
as straight styli.
