Renishaw TS20 User Manual

3-6
TS20 probe system: System installation

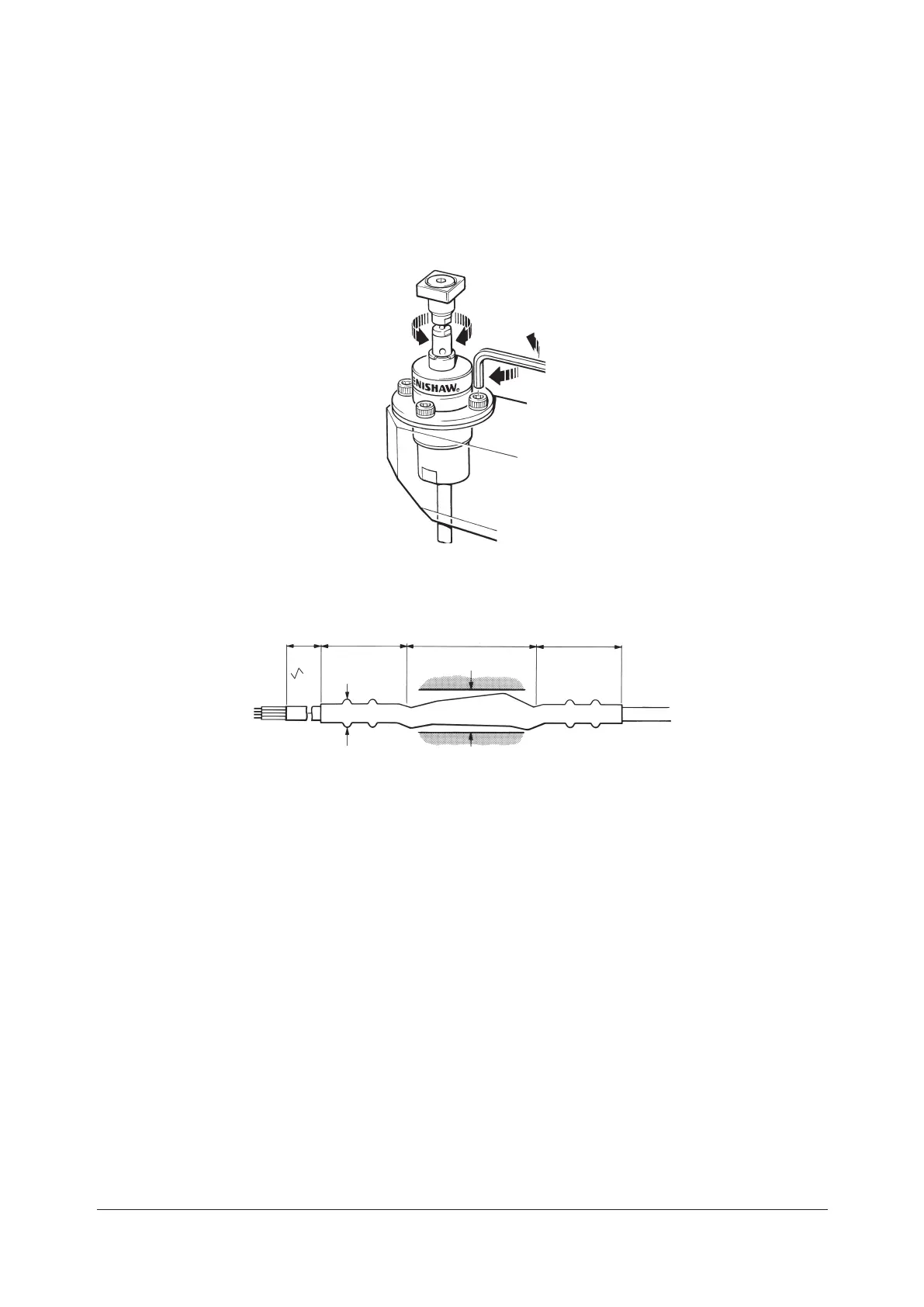

Stylus alignment in X and Z axes
Alignment of the stylus with the machine X and Z axes is obtained by slackening the four M3 × 8 mm
clamping screws and rotating the probe body.
When alignment is achieved, tighten the clamping screws.
Signal conditioning module
2950 (116)
32 (1.26)
Ø8 (Ø0.32)
47 (1.85) 32 (1.26)
Ø15 (0.59)
MINIMUM clearance
