Now tip the printer to its rear near the edge of the table and
attach the weight to the part of the toothed belt for the Z-direc-
tion that is now at the top using the cord.
The weight must be suspended to be freely movable but may
touch the mains unit housing. This is not a problem.

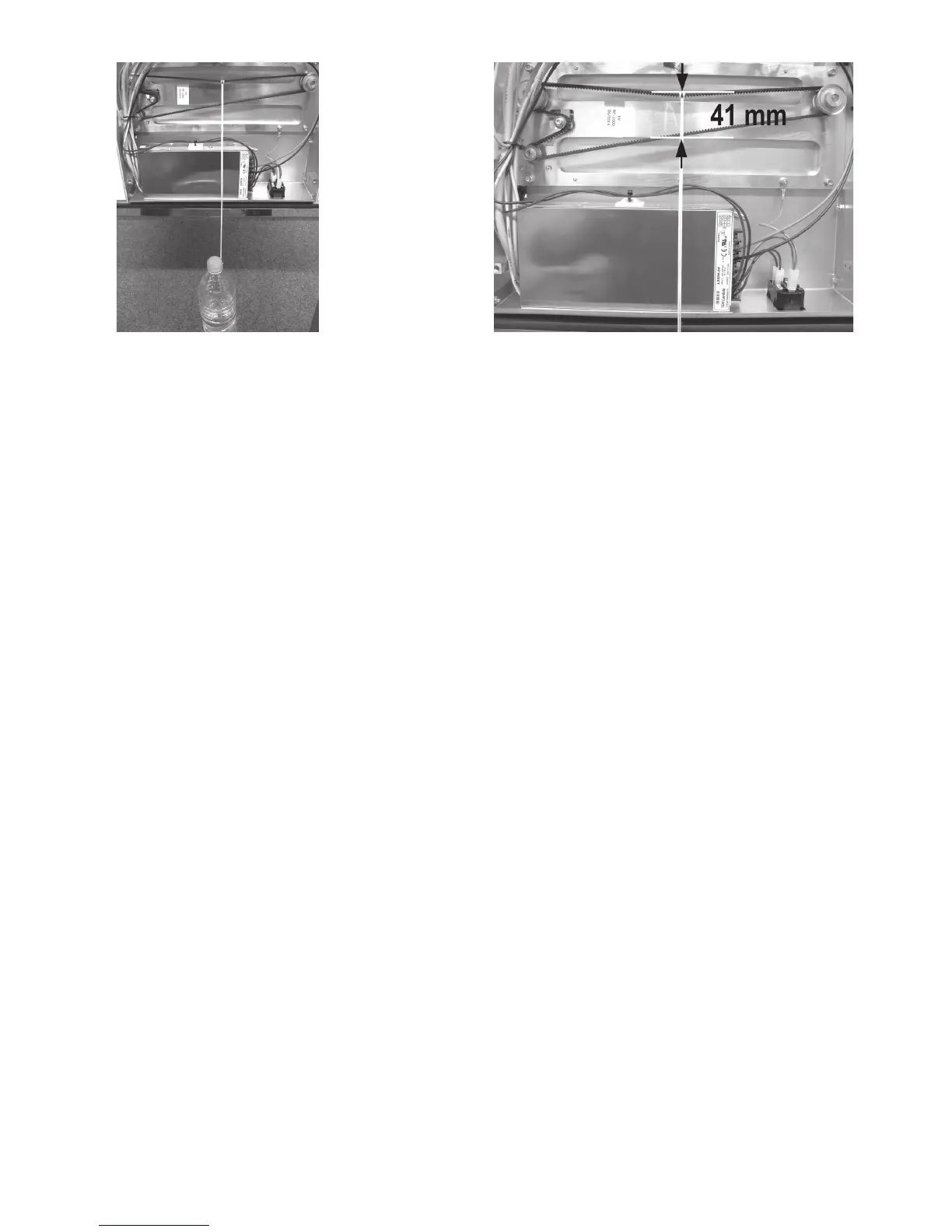

Measure the distance between the two toothed belt halves as
shown in the figure. Set a distance of 41 mm with the belt ten-
sioner.
