8. Assembly of the Outdoor Sensors
All sensors can be installed on the enclosed pole clamp. The parts of the outdoor sensor (temperature/humidity sen-
sor, rain sensor, wind speed sensor, wind direction sensor, solar module) are connected to each other with cables.
Thisway,allsensorscanbeoperatedviathesolarmodule(atsufcientbrightness)orviathetworechargeablebat-
teries (in the temperature/humidity sensor). Signing on of the sensors to the weather station is much easily than in
other weather stations because of this.
Proceed as follows to assemble/mount and connect the outdoor sensors:
First remove all components of the outdoor sensors from the packaging.
The attachment material contains various screws and 5 nuts:

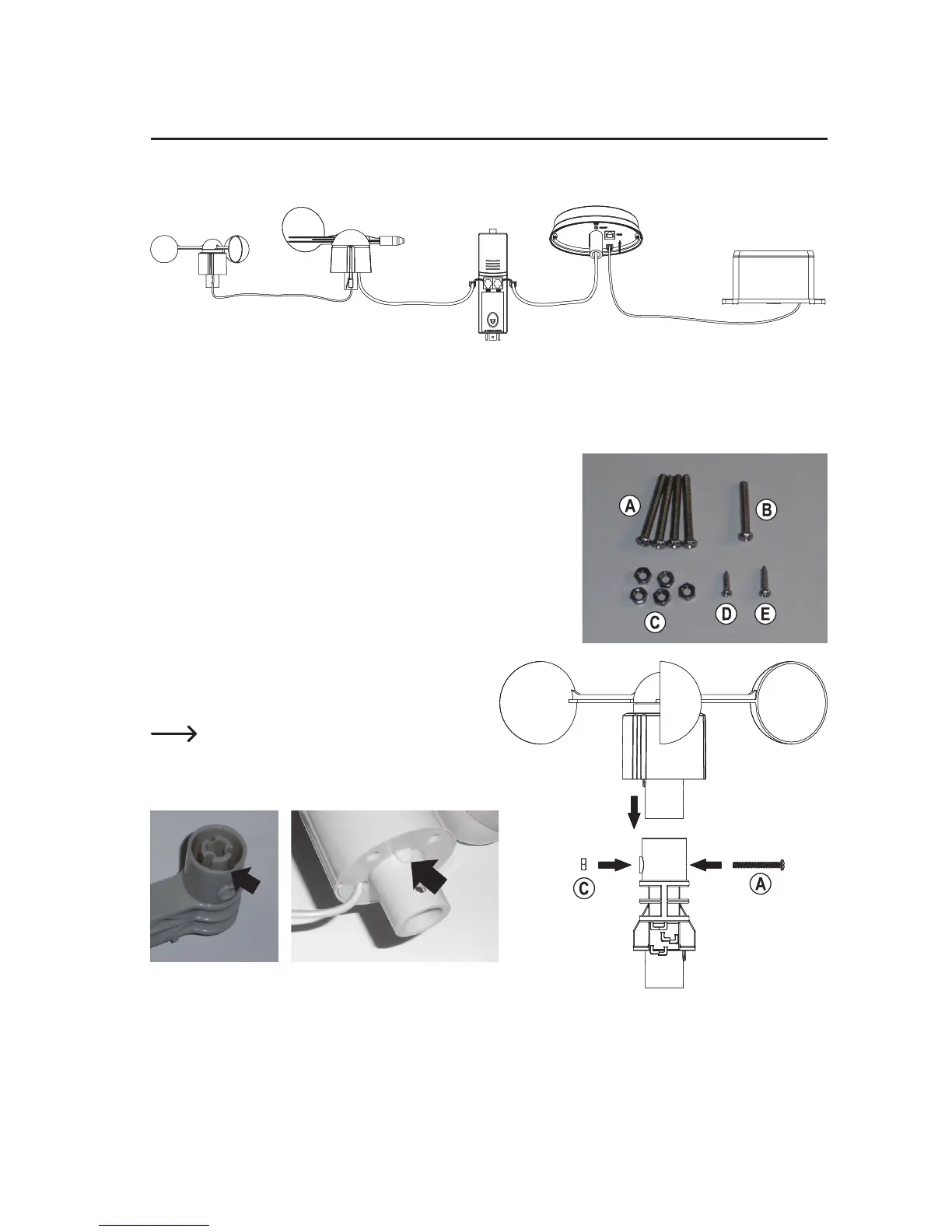

Plug the wind speed sensor into one of the two sockets
on the enclosed Y plastic holder and fasten it with a long
screw (A) and an M3 nut (C).
Observe that the tab at the wind speed sensor
is guided precisely into the plastic holder, since
the screw can otherwise not be pushed through.
