Resol DeltaSol BS User Manual

DeltaSol
®
BS
© RESOL 04272 deltasol_bs.mon.pmd
| 4

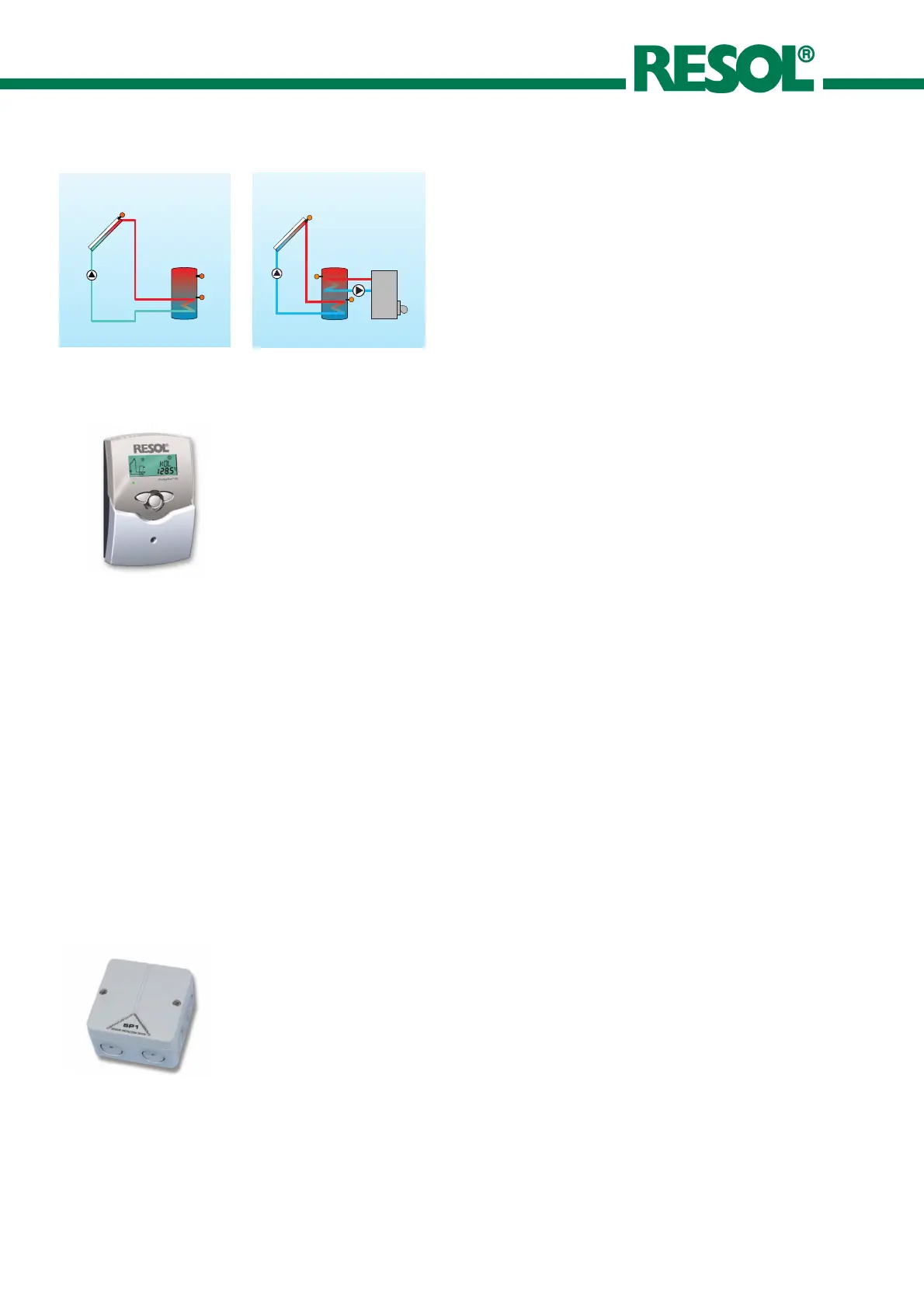

Examples DeltaSol
®
BS
Accessory
Overvoltage protection
It is highly recommended to connect this RESOL overvoltage protection SP1 to all collector
sensors in order to avoid overvoltages (e.g. by lightning).
RESOL SP1 Art.-No.: 180 110 10
Order indication
• Version 66.30: 1 standard relay, operation hours counter
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 1 115 410 10
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 1 - full kit
incl. 3 Temperature sensors Pt1000 (1 x FKP6, 2 x FRP6) 115 410 20
• Version 67.30: 1 semiconductor relay, speed control,
operation hours counter
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 2 115 410 30
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 2 - full kit
incl. 3 Temperature sensors Pt1000 (1 x FKP6, 2 x FRP6) 115 410 40
• Version 68.30: 2 standard relay, thermostat function,
operation hours counter
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 3 115 420 60
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 3 - full kit
incl. 3 Temperature sensors Pt1000 (1 x FKP6, 2 x FRP6) 115 410 70
• Version 69.30: 1 standard relay,1 standard relay,
speed control, operation hours counter, thermostat function
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 4 115 420 80
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
BS / 4 - full kit
incl. 3 Temperature sensors Pt1000 (1 x FKP6, 2 x FRP6) 115 420 90
Please find detailed
connection schemes for
the shown systems in
chapter 1.
Standard solar systems
Solar systems with
after-heating
(68.30/69.30)

Resol DeltaSol BS Specifications

General

Type	Solar Thermal Controller
Number of Inputs	4
Number of Outputs	2
Outputs	2 relay outputs
Enclosure Protection	IP20
Temperature Sensor Inputs	4 (Pt1000)
Mounting	Wall-mounted
Power Supply	220 … 240 V~
