Resol DeltaSol BS User Manual

DeltaSol
®
BS
© RESOL 04272 deltasol_bs.mon.pmd
| 6
S1
S2
S4 / TRL

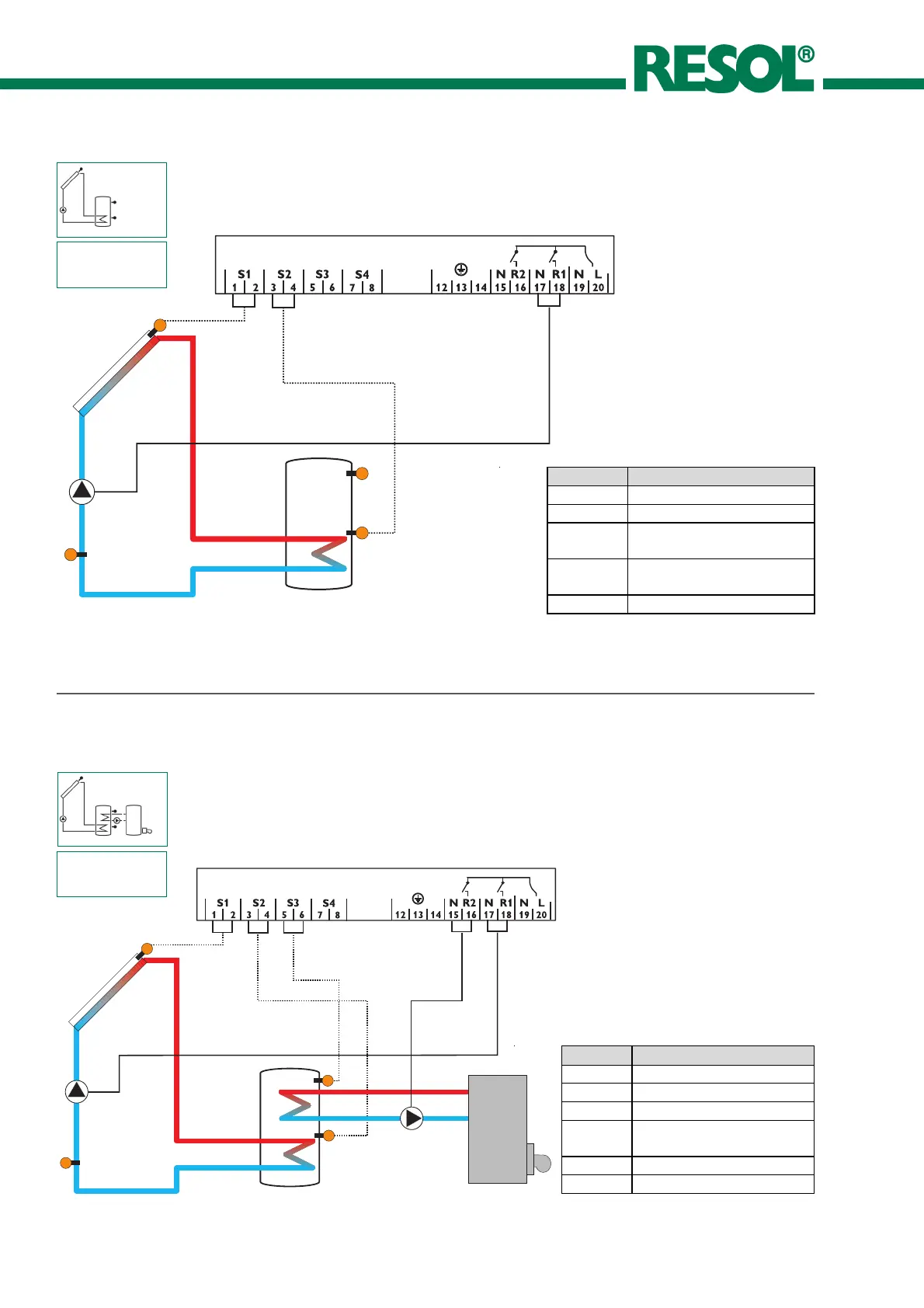

1.2.1 Allocation of clamps for system 1
Standard solar system with 1 store, 1 pump and 3
sensors. The sensor S4 / TRL can optionally be used for heat
quantity balancing.
R1
ANL 1
S3
R2
S1
S2
R1
S3
S4 / TRL
Solars ystem and after-heating with 1 store, 3 sensors
and after-heating. The sensor S4 / TRL can optionally be
used for heat quantity balancing.
ANL 2
1.2.2 Allocation of clamps for system 2
( PG 68.30 and PG 69.30 )
Symbol Specification
S1 Collector sensor
S2 Store sensor below
S3 Store sensor at the top
(optionally)
S4 / TRL Sensor for heat quantity
measurement (optionally)
R1 Solar pump
Symbol Specification
S1 collector sensor
S2 store sensor below
S3 store sensor at the top
S4 / TRL sensor for heat quantity
balancing (optionally)
R1 solar pump
R2 pump for heat exchange

Resol DeltaSol BS Specifications

General

Type	Solar Thermal Controller
Number of Inputs	4
Number of Outputs	2
Outputs	2 relay outputs
Enclosure Protection	IP20
Temperature Sensor Inputs	4 (Pt1000)
Mounting	Wall-mounted
Power Supply	220 … 240 V~
