DeltaSol
®
BS
© RESOL 04272 deltasol_bs.mon.pmd
3 |
!
ê
$
$
• system-monitoring-display
• up to 4 temperature sensors
Pt1000
• heat balancing
• function control
• user-friendly operation by
simple handling
• pump speed control, solar
operating hours counter and
thermostat function optionally

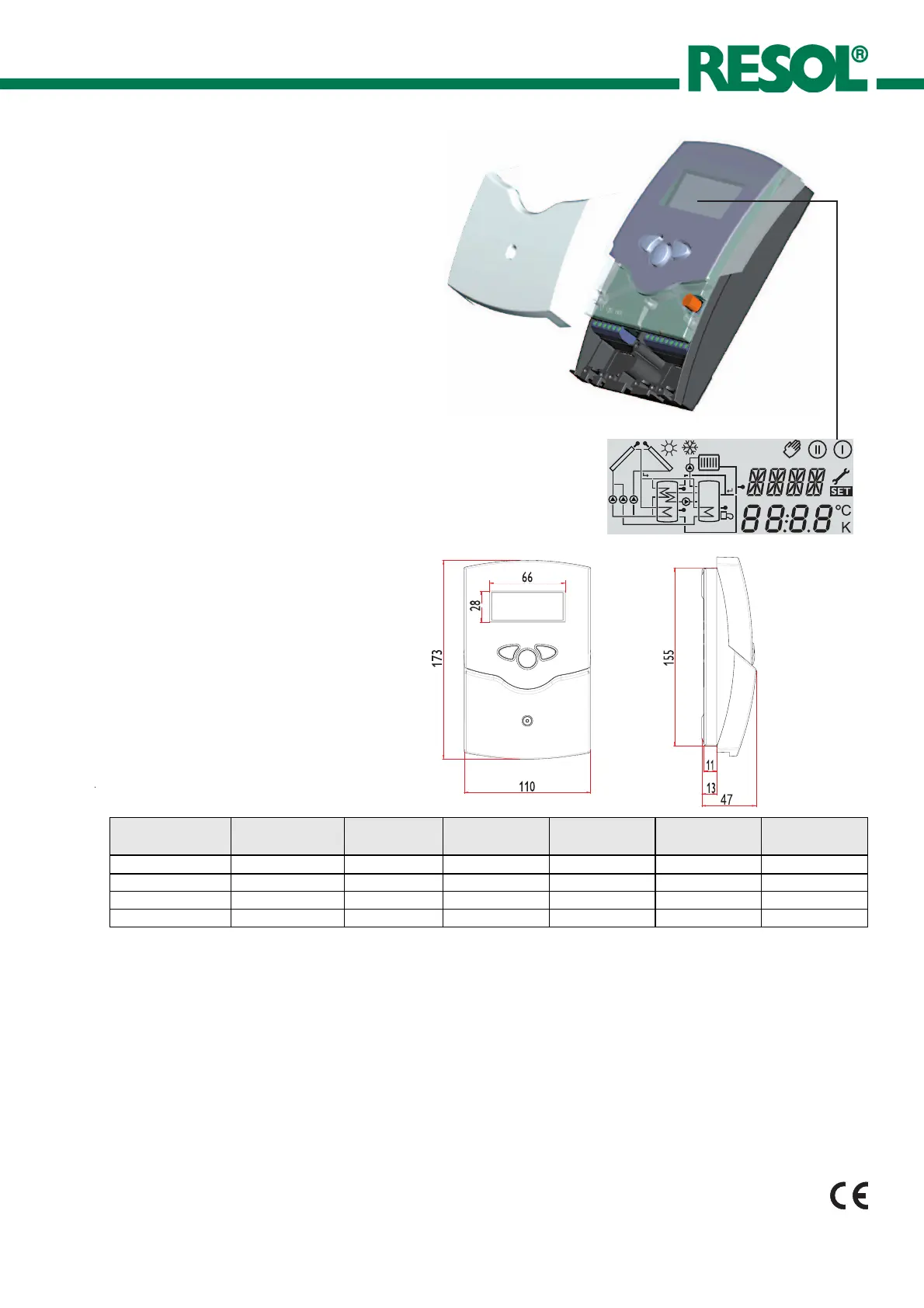

Technical data
Housing:
plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Environmental temp.: 0 ... 40 °C
Size: 172 x 110 x 46 mm
Mounting: wall mounting, mounting
into patch-panels is possible
Display: System screen for systems
visualisation, 16-segment display,
7-segment display, 8 symbols for system
status and operating control lamp
Operation: by 3 pushbuttons in the
front of the housing
Functions: Temperature differential
controller with optional add-on system
funtcions. Function control according
to BAW-guidelines, operating hours
counter for solar pump, tube collector
special function, pump speed control
(PG 67.30 and PG 69.30) as well as
heat quantity balancing.
Inputs: for 4 temperature sensors
Pt1000
Outputs: depending on version, see
survey „controller versions“
Power supply:
210 ... 250 V~
Total power supply:
4 (2) A 250 V~
Mode of operation:
Typ 1.b (version 66.30, 68.30)
Typ 1.y (version 67.30, 69.30)
Breaking capacity per relay:
semi-conductor relay:
1,6 (1) A 250 V~
electromechanical relay:
4 (2) A 250 V~
Scope of delivery:
1 x DeltaSol
®
BS
1 x accessory bag
1 x spare fuse T4A
2 x screws and dowels
4 x strain relief and screws
1 x condenser 4,7 nF
Additionally enclosed in the full kit:
1 x sensor FKP6
2 x sensor FRP6
Controller
version PG
Semiconductor
relay
Standard relais
Operation
hours counter
Speed control
Thermostat
function
Heat balancing
66.30 0 1
yes
no no
yes
67.30 1 0 yes yes no yes
68.30 0 2 yes no yes yes
69.30 1 1 yes yes yes yes
