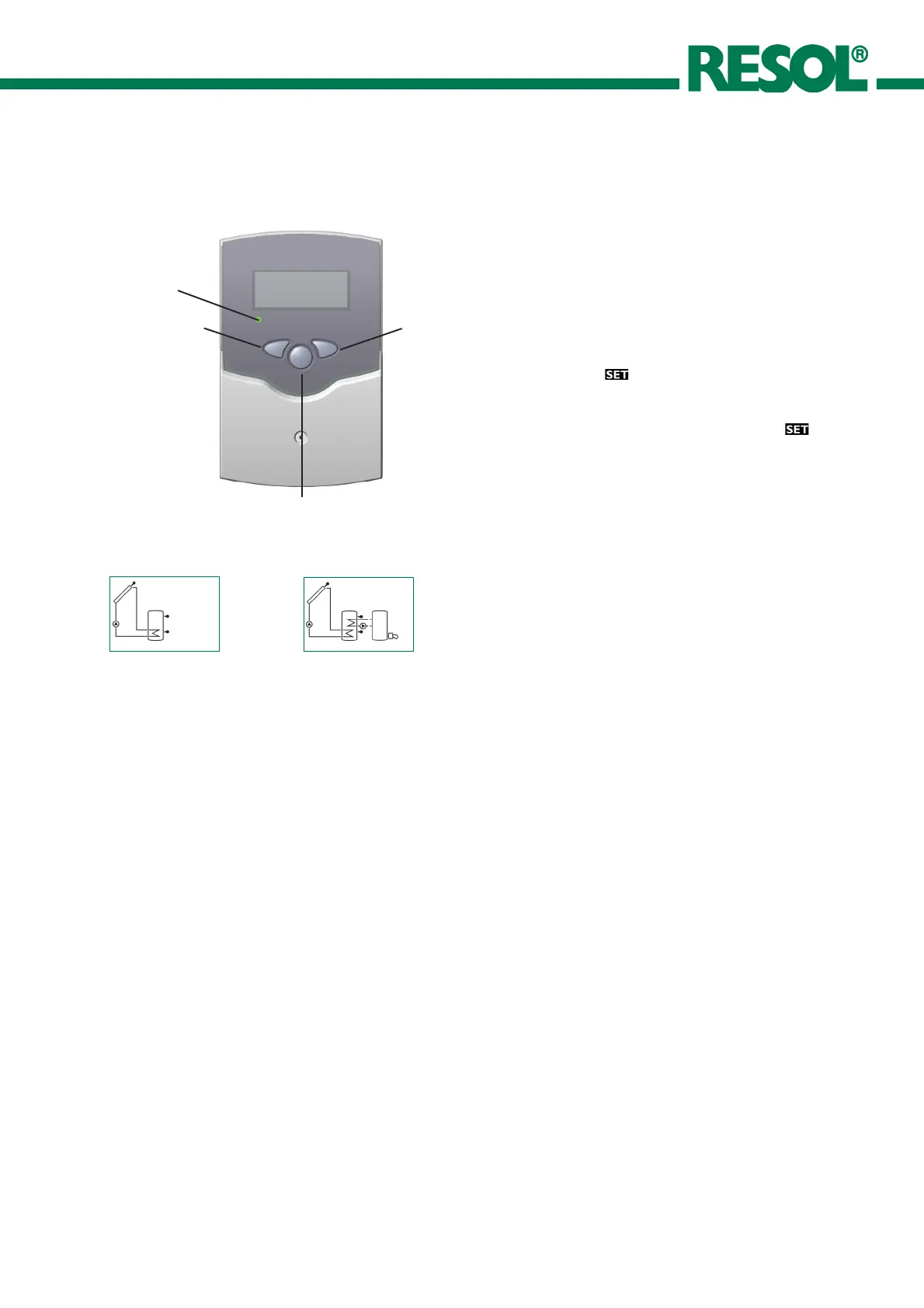

3. Commissioning
On commissioning you have to adjust primarily the system scheme
System survey:
Arr 1 : standard solar system
Arr 2 : solar system with after-heating
(PG 68.30 and PG 69.30)
1
3
2
backwards
forward
SET
(Selection / Adjustment mode)
Operation
control lamp
Arr 1
Arr 2
1. Ac power supply must be activated. The controller passes
an initialisation phase in which the operating control lamp
flashes red and green. After having finished the initialisation,
the controller is in automatic operation with factory
settings. The preadjusted system scheme is Arr 1.
2. - select Arr
- change into -mode (see 2.1)
- select the system scheme by Arr-characteristics
- adjustment is saved by pressing button
Now the controller is ready for operation and should
enable an optimum operation of the solar system by the
factory settings made.

Resol DeltaSol BS Specifications

General

Type	Solar Thermal Controller
Number of Inputs	4
Number of Outputs	2
Outputs	2 relay outputs
Enclosure Protection	IP20
Temperature Sensor Inputs	4 (Pt1000)
Mounting	Wall-mounted
Power Supply	220 … 240 V~
