Resol DeltaSol Plus User Manual

RESOL - Elektronische Regelungen GmbH • Heiskampstr. 10 • D-45527 Hattingen • Tel.:+49 (0) 23 24/96 48-0 • Fax: +49 (0) 23 24/96 48-55
eMail: technik@resol.de • Internet: http://www.resol.de
page 12/20

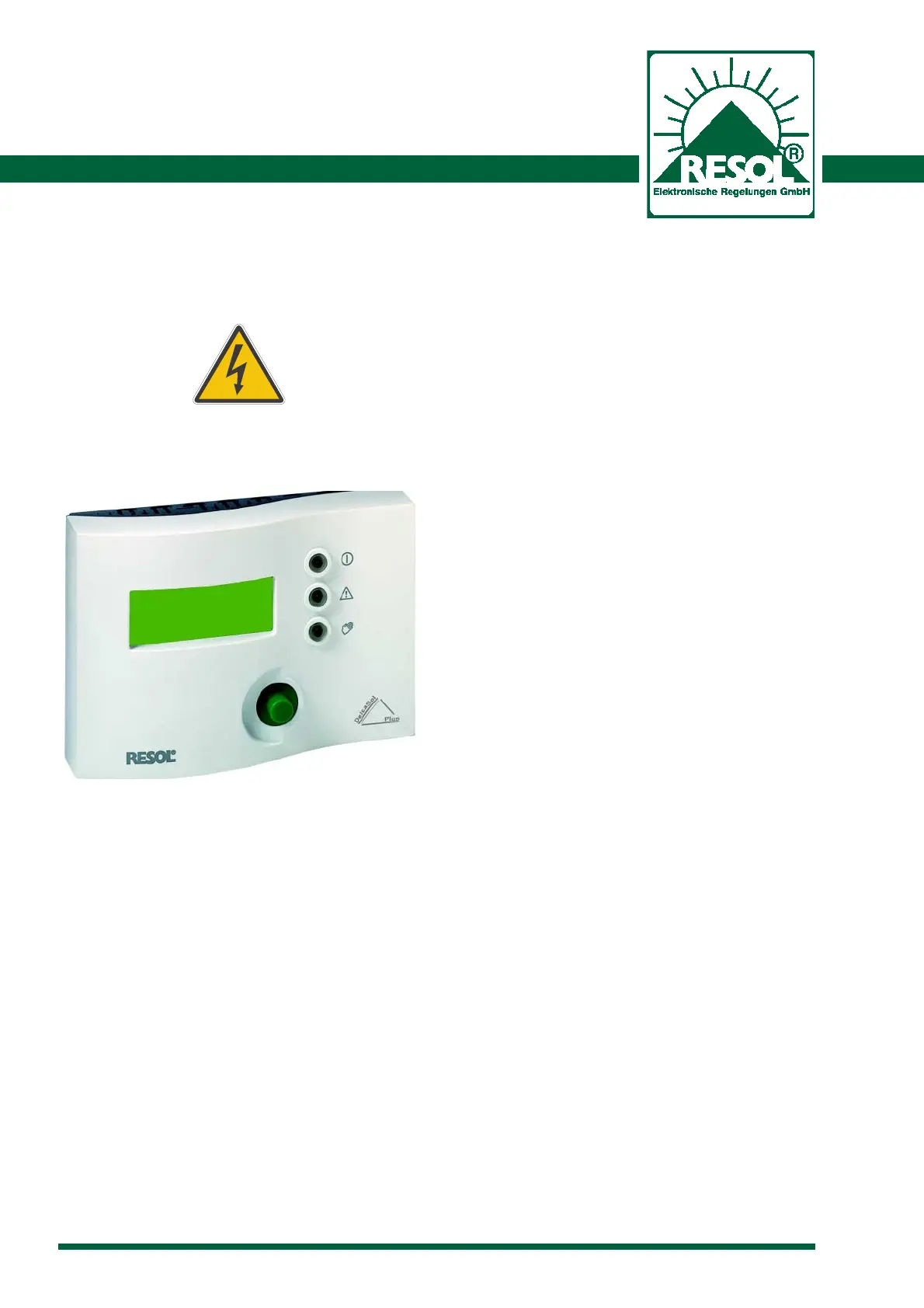

RESOL DeltaSol Plus
Universal temperature differential regulator with
integrated calorimeter
Mounting instructions
5.1. Mounting of the housing
The upper part of the housing must be plugged on the
socle. The AC power supply is effected by an external switch.
Warning: The snap connections of the housing must clearly
lock.
5.2. Switching on
The mode switch of the regulator must be set at 0
before the power connection can be swiched on. After an
initialisation phase of about 5 seconds,
the control lamps ...
and ... illuminate red for indication of the mode switch operation.
5.3. Adjustments
Please adjust now the desired options and the necessary
regulation defaults. Before finishing, please check all
adjustments.
5.4. Test running of the system and automatic
operation
If the switch is set to I, the control lamps ... and ... illuminate
green in order to indicate the mode switch operation and
the consumers connected to the terminals 11 to 14 are
supplied with power.
After having finished this test, the mode switch is to be
switched to Auto for automatic operation.
5. Commissioning

Resol DeltaSol Plus Specifications

General

Number of relay outputs	3
Controller Type	Solar thermal controller
Application	Solar thermal systems
Functions	heat quantity measurement
Inputs	Pt1000
Outputs	3 relay outputs
Operating temperature	0 °C to 40 °C
