RESOL DeltaSol Plus
Universal temperature differential regulator with
integrated calorimeter
Mounting instructions
The regulator RESOL DeltaSol Plus disposes of a RS232
interface for direct connection to a PC. By means of the free
evaluation tools DeltaSol Plus PC the values measured by
the regulator can be read-out, processed and visualized. The
software enables a comfortable balance and function control
of the system and also an editing of the data records for a
further processing in other application programmes. The
evaluation tool DeltaSol Plus PC can be downloaded free
of charge from the RESOL Homepage on the Internet
(www.resol.de) or can be directly ordered at RESOL Elek-
tronische Regelungen GmbH together with a patch cord
(see page 2).
You will find the location of the special plug jack imprinted
on the base/isolation plate at the position marked with
RS232.

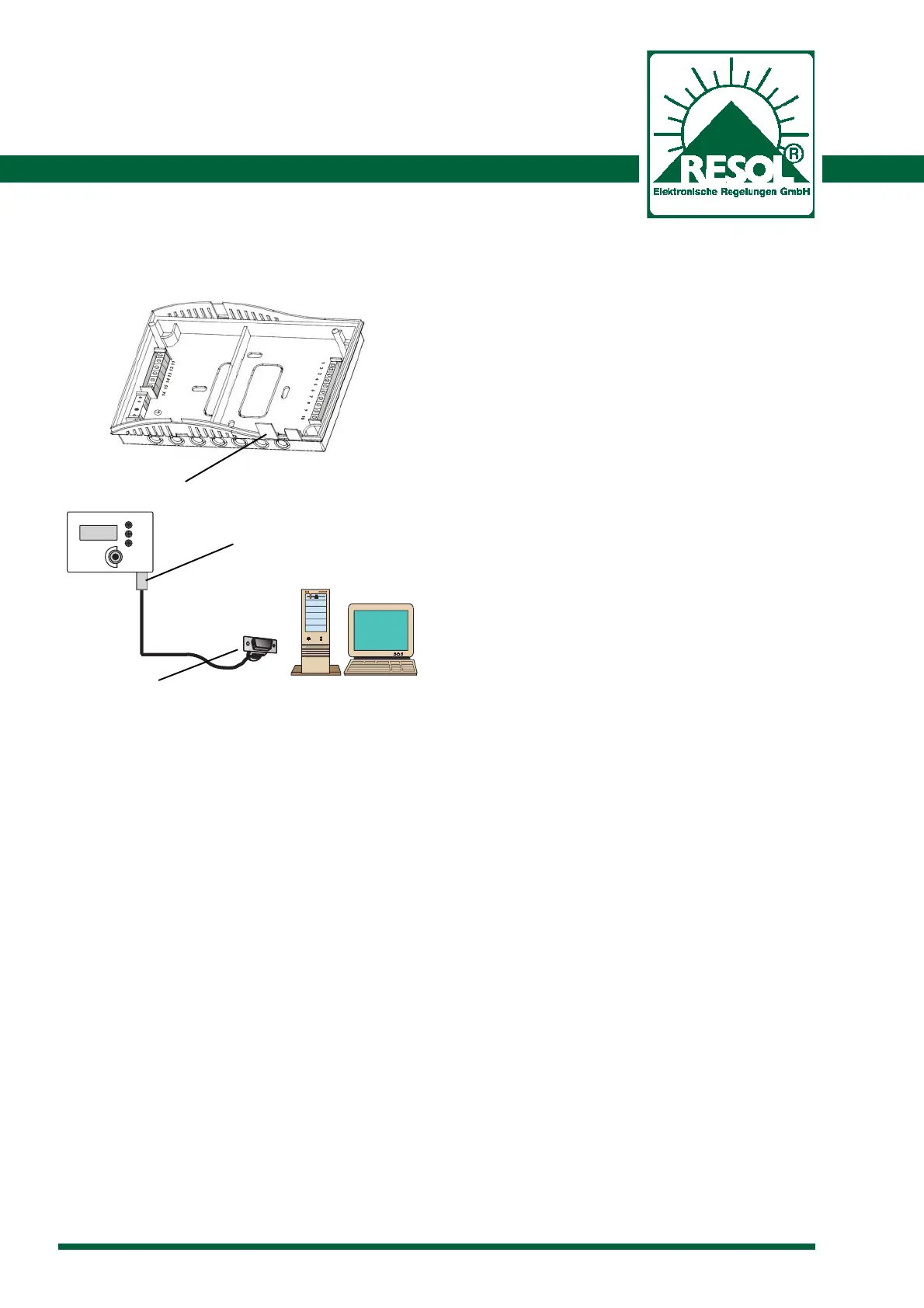

Western plug, RS232 (in the housing)
1.3 RS232 Interface
Sub-D-plug
Western plug
PC, COM-Port

Resol DeltaSol Plus Specifications

General

Number of relay outputs	3
Controller Type	Solar thermal controller
Application	Solar thermal systems
Functions	heat quantity measurement
Inputs	Pt1000
Outputs	3 relay outputs
Operating temperature	0 °C to 40 °C
