page 8/20
RESOL DeltaSol Plus
Universal temperature differential regulator with
integrated calorimeter
Mounting instructions

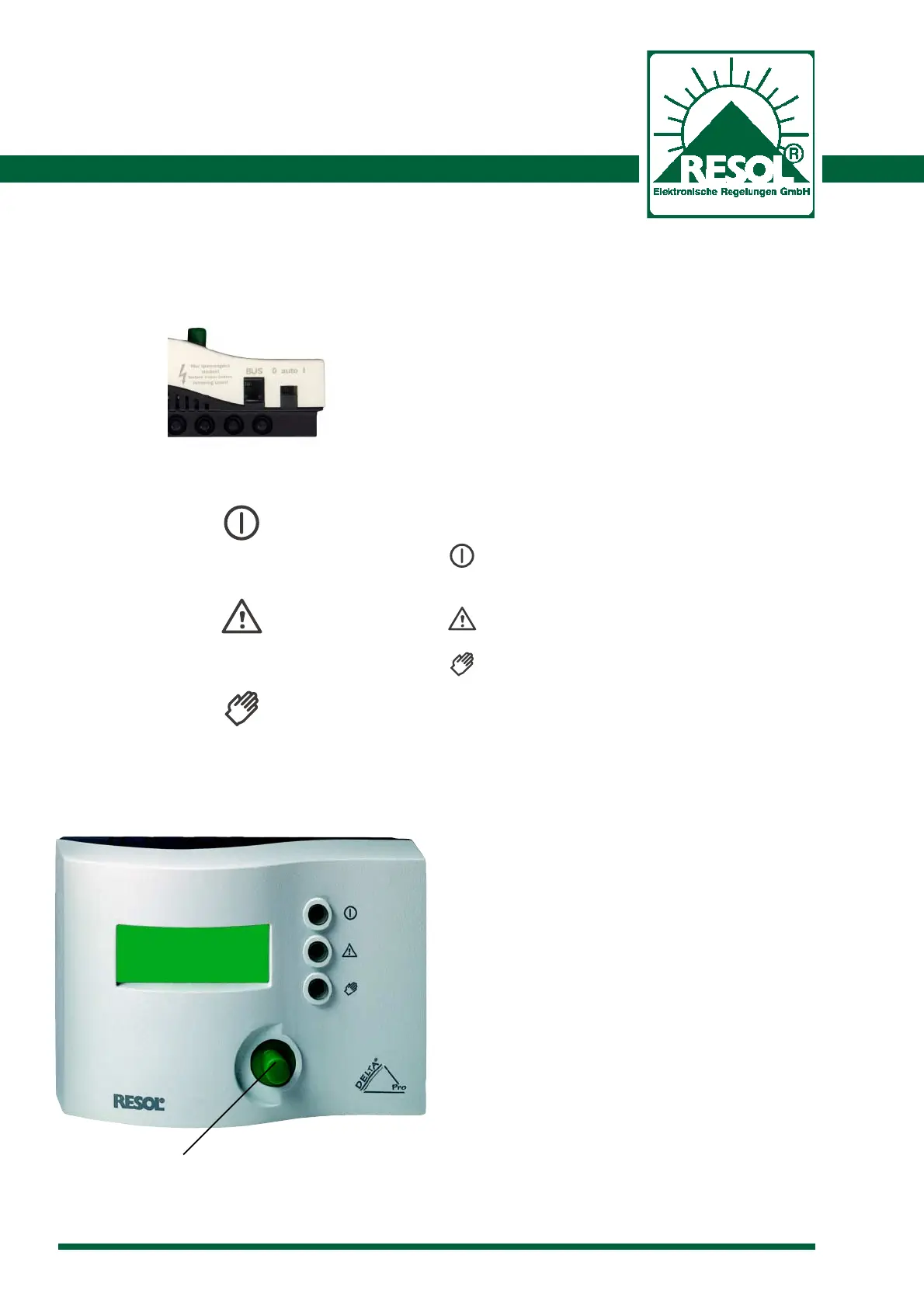

3. Operation
3.1 Mode switch:
The mode switch is positioned at the lower front side of the
housing and enables the following adjustments:
0 relay switched-off
Auto automatic operation for relay outputs
II
II
I relays (R1 and R2) switched-on, permanent
operation
3.2 Control lamps
3 light emitting diodes with the following symbols are
located at the front side of the regulator:
control lamp for relays
red: relays (R1 and R2) OFF
green: relay (R1 or R2) ON
control lamp for malfunctions
flashing: error message
control lamp for manual operation
green: mode switch in position
I I
I I
I
(R1 and R2 ON)
red: relays (R1 and R2) OFF
3.3 Rotary knob with integrated pushbutton and
the menu system
The regulator RESOL DeltaSol Plus is only operated by the
rotary knob with integrated pushbotton. The main menu is
shown on the display in the start position.
I5 menus can be selected in the MAIN menu:
1. MEASURED VALUES
2. MESSAGES
3. BALANCE VALUES
4. ADJUSTMENTS
5. OPTIONS
The plain text display shows a 4 line section of the chosen
menu. The flashing cursor shows the actual position within
this menu. By turning the rotary knob, the cursor runs
through the menu. By pushing the integrated pusbotton a
menu item can be choosen. By turning the rotary knob
again, the standard value can be changed. By pushing once
more the pushbotton, the modification is finished. A
maladjustment is avoided by a sequrity inquiry check, which
can be answered with (Y)es or (N)o.
rotary knob with integrated pushbutton
