Resol DeltaSol Plus User Manual

RESOL - Elektronische Regelungen GmbH • Heiskampstr. 10 • D-45527 Hattingen • Tel.:+49 (0) 23 24/96 48-0 • Fax: +49 (0) 23 24/96 48-55
eMail: technik@resol.de • Internet: http://www.resol.de
page 2/20
RESOL DeltaSol Plus
Universal temperature differential regulator with
integrated calorimeter
Mounting instructions

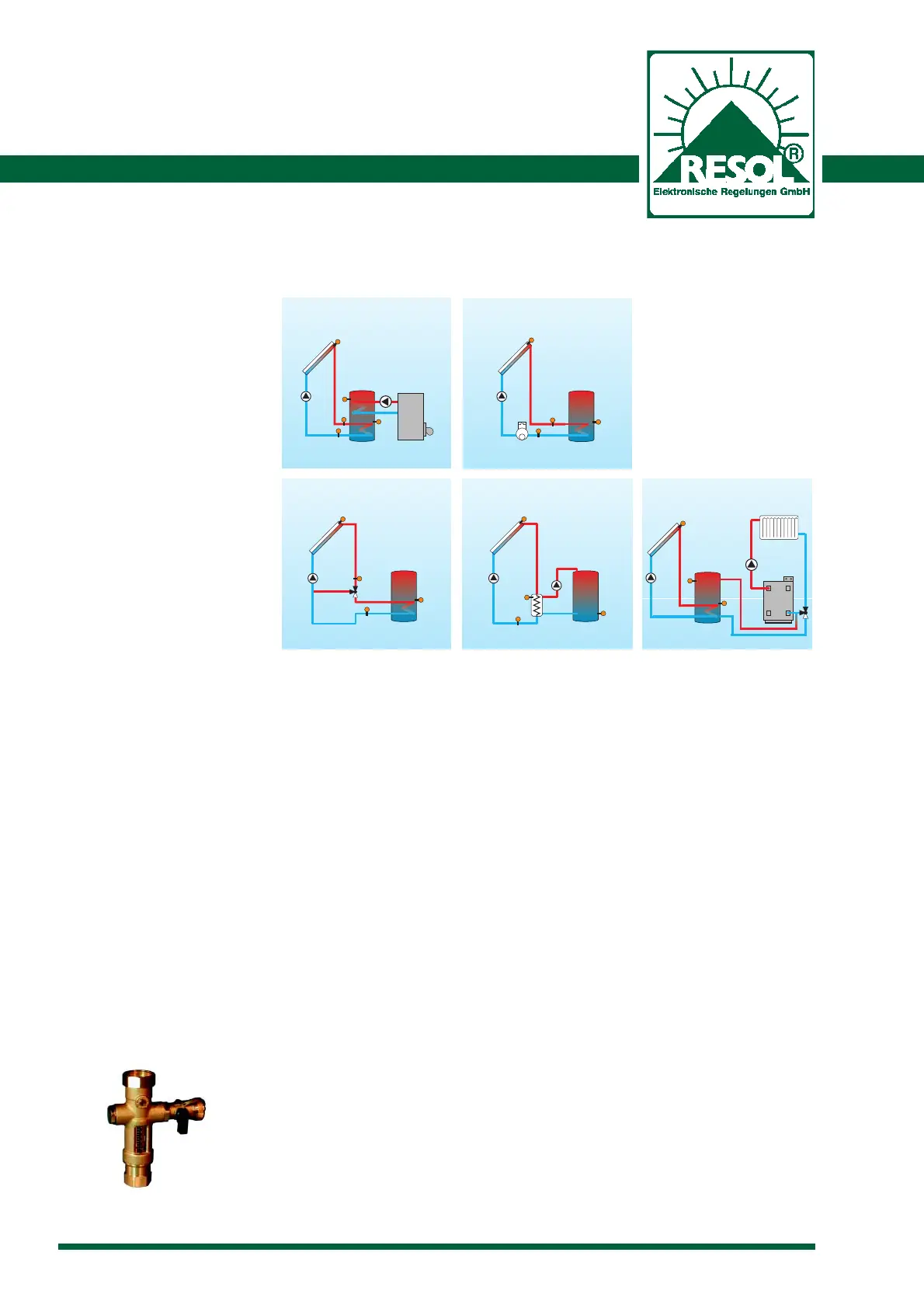

Anwendungsbeispiele DeltaSol Plus
The icons showed in this manual should only be used for information, they only
represent a choice of the possible applications.
RESOL DeltaSol Plus
Outputs:
2 relay outputs: 1 for speed
regulation and 2 for speed
regulation in version/Flowmeter
Total power supply max. 2 x 1,6 A
Power supply:
210 ... 250 Volt AC, 50...60 Hz
Power consumption:
max. 4 VA
Data output:
RS232
Heat quantity measuring:
(for mixtures of propylene-
glycol/water)
(Volumetric flow measuring
with)
- Flowmeter 0,5...5 or 1...13 l/min.
- Volumetric flowmeter V40
Order indication Article no.
RESOL DeltaSol Plus for Flowmeter - complete set
incl. 5 Pt1000 temperature sensors (1 x FKP6, 2 x FRP6, 2 x FRP30) 115 520 10
RESOL DeltaSol Plus/V40 - complete set
incl. 4 Pt1000 temperature sensors (1 x FKP6, 1 x FRP6, 2 x FRP30)
and volumetric flowmeter V40-0,6 (m³/h) 115 520 20
Patch cord/software
Connecting cable with special plug and 9-pole connection plug for the serial
PC-interface as well as the calculation software DeltaSol PC 180 001 10
RESOL Flowmeter
Flow meter 0,5...5,0 l/min 280 004 40
Flow meter 1,0...13,0 l/min 280 004 50
DeltaSol Plus / Flowmeter
DeltaSol Plus / V40
DeltaSol Plus / Flowmeter DeltaSol Plus / Flowmeter DeltaSol Plus / Flowmeter

Resol DeltaSol Plus Specifications

General

Number of relay outputs	3
Controller Type	Solar thermal controller
Application	Solar thermal systems
Functions	heat quantity measurement
Inputs	Pt1000
Outputs	3 relay outputs
Operating temperature	0 °C to 40 °C
