Retevis RT72 User Manual

03
1.2. Description of LCD Icons
Description of product status
The more signal bars, the stronger the signal is
The current channel transmits at high power
The current channel transmits at low power
The current sub-audio is CTCSS
The current sub-audio is CDCSS
Speaker is enabled, and reception is effective
The current transmission frequency is the reception
frequency plus a frequency bias (positive bias)
The current transmission frequency is the reception
frequency minus a frequency bias (negative bias)
Currently in offline state
The scan is on and is in normal mode
Scan stays on non-priority channel
Scan stays on priority channel 1
Scan stays on priority channel 2
The more bars, the more battery power
Voice control is turned on
Currently pointing to the main digital mode; press A/B
button to switch the main channel up and down.
When double-waiting is turned on and works in digital
sub-channel, the icon is
Currently pointing to the main analog mode; press
A/B button to switch the main channel up and down.
When double-waiting is turned on and works in
analog sub-channel, the icon is
Icon name
Signal strength icon
Transmission
power icon
Direct mode slot
icon
Speaker icon
Relay mode icon
Scan icon
Non-priority channel
Priority channel 1
Priority channel 2
Battery power icon
VOX icon
Pointer icon
H
L
+
-
D
A
D
A
Icon
1. Status Indication
1.1. LED Indicators
Indicator status
Product status
Red on Green on Green flash
Transmitting Receiving Scanning
P1
P2
V
This product has LED indicators so you can easily grasp
the current operating state.

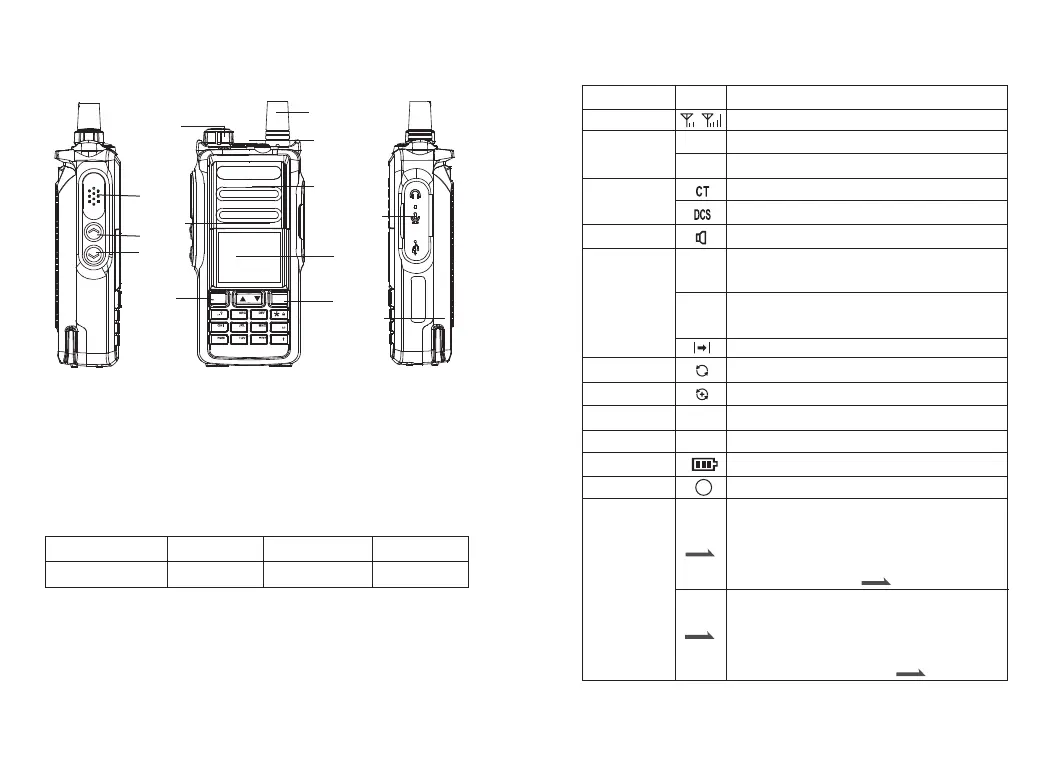

RADIO OVERVIEW
PTT
SK2
SK1
MENU
MENU
Mic/Spk/Write
Frequency Port
Battery Pack
Antenna
BACK
BACK
02
LED Indicator
LCD
Loudspeaker
Microphone
State indicator
lamp
1
4
7
2
5
8
3
6
9
0
#
