Retevis RT95 User Manual

9

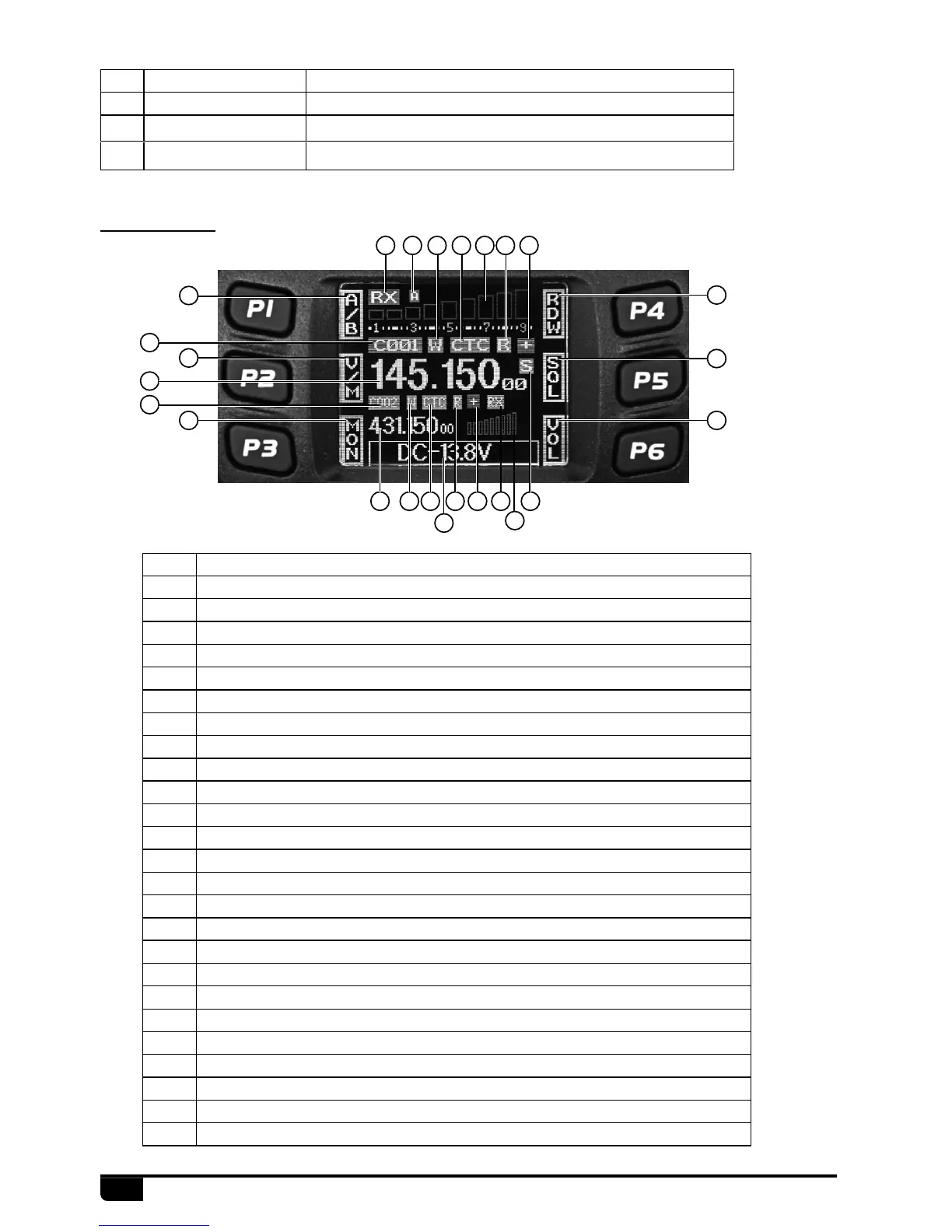

4.3 Display
NO. Key Functions
1 Antenna connector Connect a 50 ohm antenna
2 Ex-Speaker Jack Connect external speaker
3 Power cable Connect a standard DC power cable
NO. Functions
1 Displays the self dene function when press P1
2 Displays the self dene function when press P2
3 Displays the self dene function when press P3
4 Displays the self dene function when press P4
5 Displays the self dene function when press P5
6 Displays the self dene function when press P6
7 Displays the main channel TX or RX status
8 Displays when Automatic power off function is on
9 Displays the main channel eld strength
10 Displays main channel number in channel mode
11 Displays when set band width for main channel
12 Displays when main channel set CTCSS/DCS
13 Displays when main channel reverse function is on
14 Displays when main channel offset function is on
15 Displays when main channel is in scan list
16 Displays main channel frequency or name
17 Displays sub channel number in channel mode
18 Displays when setting band width for sub channel
19 Displays when current sub channel set CTCSS/DCS
20 Displays when sub channel reverse function is ON
21 Displays when sub channel offset function is ON
22 Displays when sub channel receive a signal
23 Display sub channel frequency or name
24 Displays signal strength of sub channel
25 Display voltage and menu setting
1
7 8 911
12 13 14
1518 19 20
21 2223
24
25
10
2
16
17
3
6
5
4

Retevis RT95 Specifications

General

Channels	200
Frequency Stability	±2.5ppm
Frequency Range	VHF:136-174MHz
Voltage	13.8V DC ±15%
Channel Spacing	25kHz/12.5kHz
Operating Temperature	-20°C to +60°C
