Operating the machine
19
Pos: 8.9 /00005 Üb erschriften/1.1 Ü berschriften/ 1.1 Überschrifte n BDA/11 Bedie nelemente u nd Funktionen @ 1\mod_12415 10466399_9.d oc @ 8819 @ @ 1
Pos: 8.10 /00010 Bedienungsa nleitungen Ka pitelsammlungen/ GM200 (2010)/00 15 GM200N B edienung/1506 GM 200_2010 M odul Grafisc he Ansicht Bedien elemente un d Anzeigen @ 3 \mod_128091 1038179_9.d oc @ 22270 @ @ 1

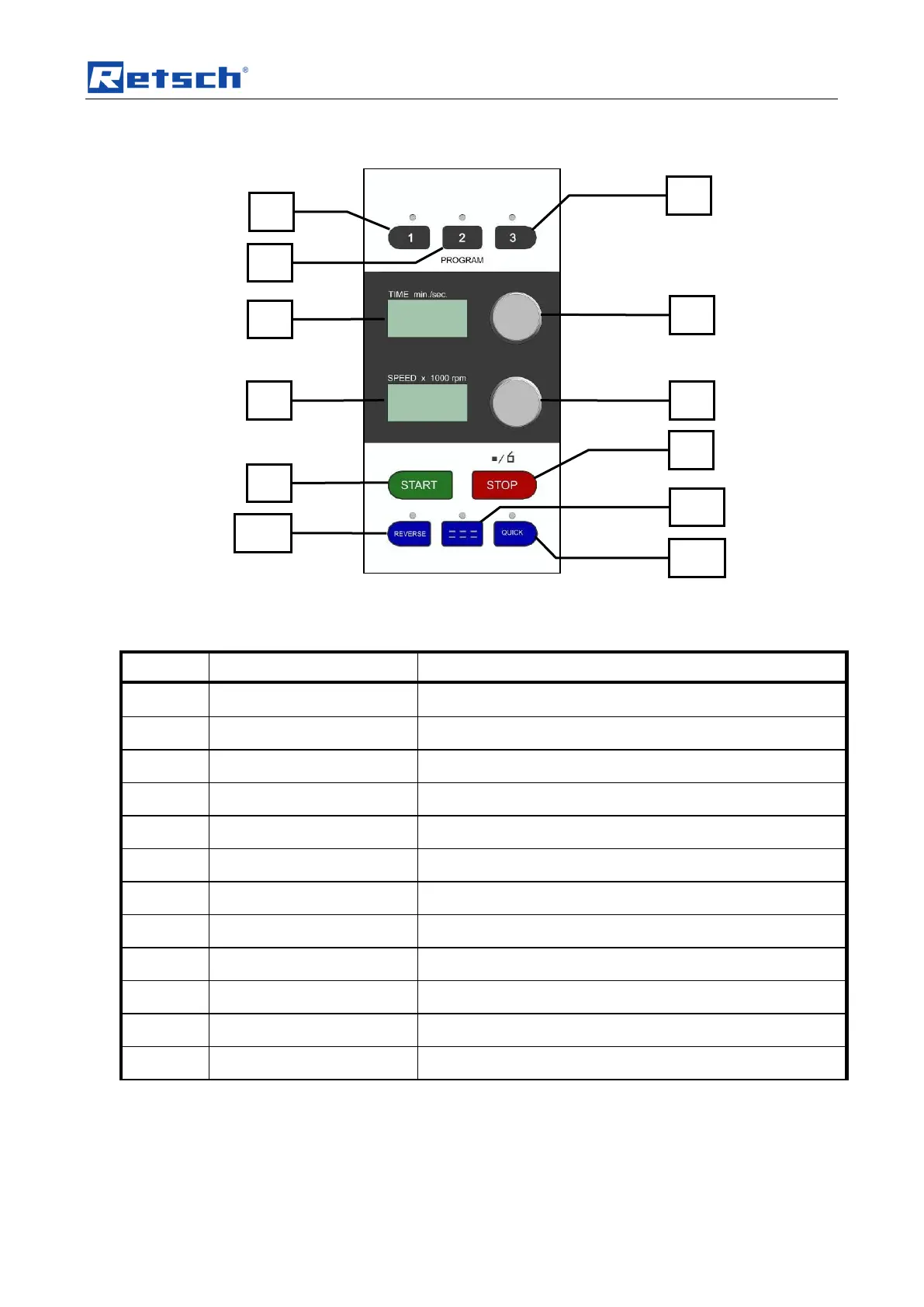

Fig. 5: Operating elements and displays
Pos: 8.11 /00005 Ü berschriften/ 1.1 Überschrifte n/1.1 Überschrift en BDA/11 Übersi chtstabelle der Bedieneleme nte und der A nzeige @ 0\mo d_122899069 7273_9.doc @ 4 978 @ @ 1
5.3 Overview Table of the Operating Elements and the Display
Pos: 8.12 /00010 Bedienungsa nleitungen Kapitels ammlungen/GM 200 (2010)/001 5 GM200N B edienung/1503 GM 200_2010 Mo dul Tabelle B edienfeldbene nnung @ 3\m od_1281606340 030_9.doc @ 2 2310 @ @ 1
Element
Description
Function
E1
Program 1
Memory for program function
E2
Program 2
Memory for program function
E3
Program 3
Memory for program function
E4
Time display
Display of the remaining grinding time
E5
Time knob
Grinding time setting (1 second to 3 minutes)
E6
Speed display
Display of the set speed
E7
Speed knob
Speed setting
E8
START button
Start of grinding
E9
STOP / open button
End of grinding / opening of the protective hood
E10
REVERSE button
Direction reversal
E11
INTERVAL button
Grinding with short intervals
E12
QUICK button
Manually controlled grinding
Pos: 8.13 /00010 Bedienungsa nleitungen Kapitels ammlungen/------- Seitenum bruch ----------- @ 0\mod_122234437375 8_0.doc @ 238 6 @ @ 1
E2
E3
E1
E4
E6
E8
E10
E5
E7
E9
E11
E12
