5.9.2 Lid 500ml
Pos: 8.34 /00010 Bedienungsa nleitungen Kapitels ammlungen/GM 200 (2010)/001 5 GM200N B edienung/1545 GM 200_2010 Mo dul Deckel 5 00ml @ 3\m od_12797217 05174_9.doc @ 21 604 @ @ 1
The 500ml lid is used for smaller quantities of small-piece material. The feed
quantity is a maximum of 300ml, depending on the material to be ground.
• Position the 500ml lid such that the edge is over the top edge of the jug.
During grinding the 500ml lid is held down by the hood.
NOTE
The 500ml lid can only be used with the plastic jug.

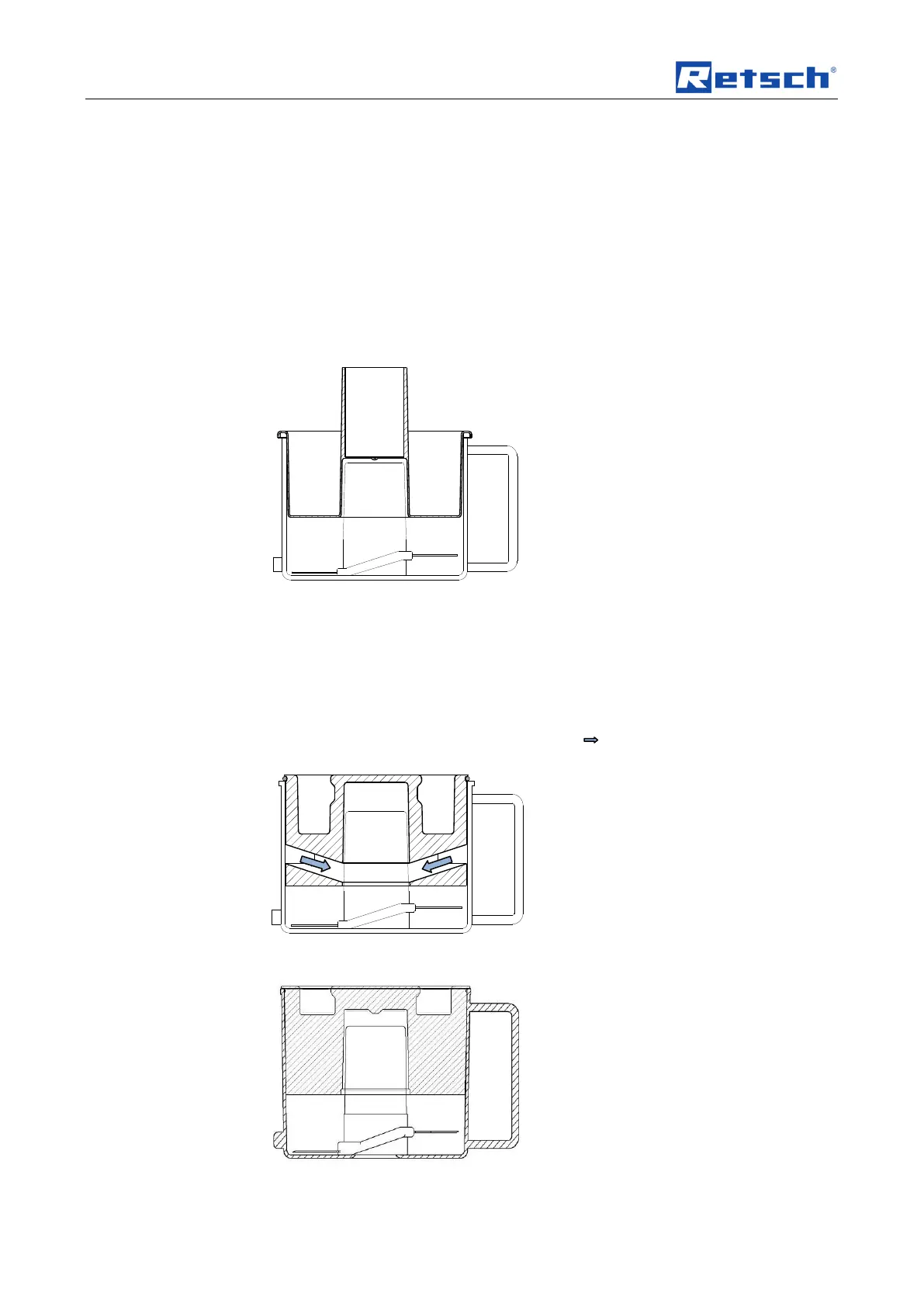

Fig. 3: 500ml lid
Pos: 8.35 /00005 Ü berschriften/ 1.1.1 Überschrift en/111 Schwer kraftdeckel @ 3\ mod_12797 16276921_9.doc @ 21461 @ @ 1
5.9.3 Gravitation lid
Pos: 8.36 /00010 Bedienungsa nleitungen Kapitels ammlungen/GM 200 (2010)/001 5 GM200N B edienung/1550 GM 200_2010 Mo dul Sch werkraftdeckel @ 3 \mod_127972 1705752_9.d oc @ 21613 @ @ 1
The gravitation lids permit an exact adjustment of the useful volume to the
respective feed quantity. They move downwards during grinding, thereby
optimising the grinding chamber volume. The feed quantity is a maximum of 300ml.
The gravitation lid with overcurrent channels ( ) is used for aqueous materials.
Fig. 4: Gravitation lid with overcurrent channels
Fig. 5: Graviation lid
