REVV GENERATOR - 3.3 Bias Test Points; 3.4 Power Tube Fault Fuses

Revv Generator 100w3.2
3.3
3.4
Bias Test Points
The amplifier is designed to allow the
user to set the bias of the power tubes
without taking the chassis out of the
head shell. Each pair of power tubes
needs to be set according to the tubes
being used. (See 5.4)
Power Tube Fault Fuses
The power tubes are fused in pairs.
Should a power tube fail, the fuse will
blow and take the pair of power tubes
out of service. This has the benefit of
protecting the amplifier, but also allows
for playability, so as to allow the user
to finish the gig on the remaining pair.
The volume and tone will change but the
show will go on.
Note: Should the amp be run with 2 power
tubes removed from service (Bad or blown
fuse), in order to get the same tone as 4
tubes, the amp should be run with an im-
pedance setting of half the speaker cabinet
rating. For example, if the speaker cabinet
is 8 ohms, set the amplifier to 4 ohms, and
if the speaker cabinet is 16 ohms, set the
amplifier to 8 ohms. This will improve tone
and run the tubes more comfortably when
2 are taken out of the mix!

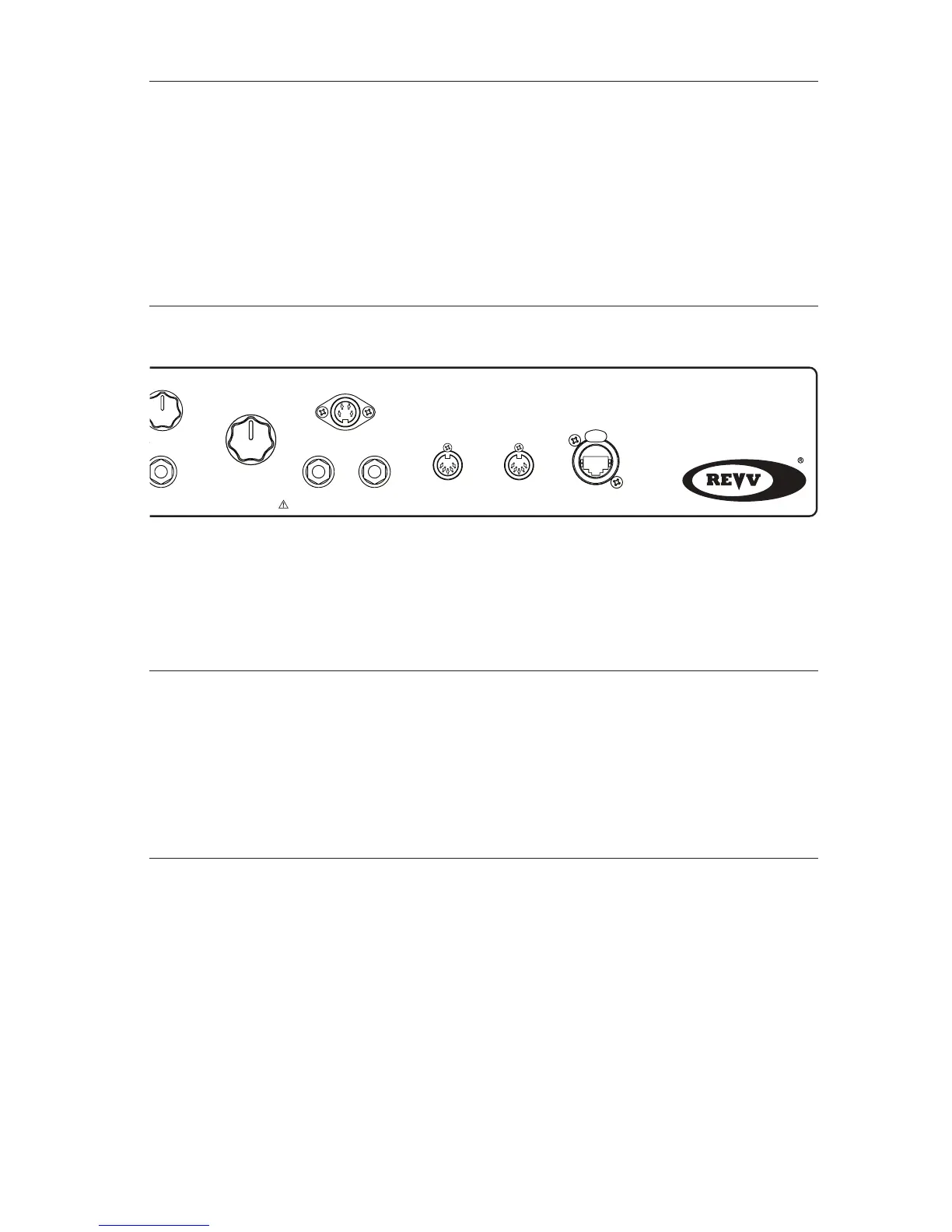

MAINS
SE
HT
T1A
BIAS
GND
FAULT
T.5A
V1/V3
V1/V3V2/V4
T.5A
V2/V4
Model # PC1G100
Serial #
Made in Canada by
The Generator 100 Watt Amplifier
CAUTION: Never power on amp wihtout speakers connected!
FOOTSWITCHMIDI THRUMIDI IN
SPEAKERS
SPEAKER CABINET
LIGHTING
CAUTION: Setting incorrectly
cl r  mge!
IMPEDANCE
FX LOOP LINE OUT
LE
VEL
LEVEL
SEND RETURN OU
T
4
16
8
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
100V / T4A
120V / T4A
230V / T2A
240V / T2A
MAINS / FUSE
WARNING: To reduce the risk of a lethal electric shock,
do not remove chassis. Service should be performed by
qualied personnel only. No user serviceable parts inside.
Do Not Open!
CAUTION: Unplug power before moving fuses.
Replace with same type and rating only!
