b. LIP SEAL (Figure 8) — Coat outside diameter of seal
with Permatex #3 or equivalent. Drive seal into seal
housing with the spring loaded seal lip away from the
driver. Wrap the keyway on tapered shank of drive shaft
with masking tape or light weight Kraft paper to protect
against damaging the seal lips. Coat the seal lips and
straight portion of the drive shaft with bearing grease.
Line up the keyway in the drive shaft with the hollow shaft
keyway and insert the drive shaft into the seal housing.
Remove the protective wrap and install the drive shaft
key. Insert the drive shaft into the hollow shaft. The seal
housing registers into the basic drive seal bore. Use the
thrust plate fastener Figure 7, to secure the drive shaft.
Refer to Table 3 for proper torque value. Install the seal
housing fasteners to secure the seal housing to the basic
drive. Refer to Table 4 for proper torque value. Reinstall
hollow shaft cover and proceed to Step 5.
c. PACKING GLAND SEAL (Figure 10) — First, wrap the
packing around the drive shaft adjacent to the tapered
portion of the drive shaft as shown in Figure 9. Cut the
packing to produce two complete split seal rings.
CAUTION: Do not mar the shaft’s seal surface.
Rexnord Industries, LLC 3001 W. Canal St., Milwaukee, WI 53208-4200 USA378-200 (PN-2128394)
Telephone: 414-342-3131 Fax: 414-937-4359November 2010
e-mail: info@rexnord.com web: www.rexnord.comSupersedes 6-07

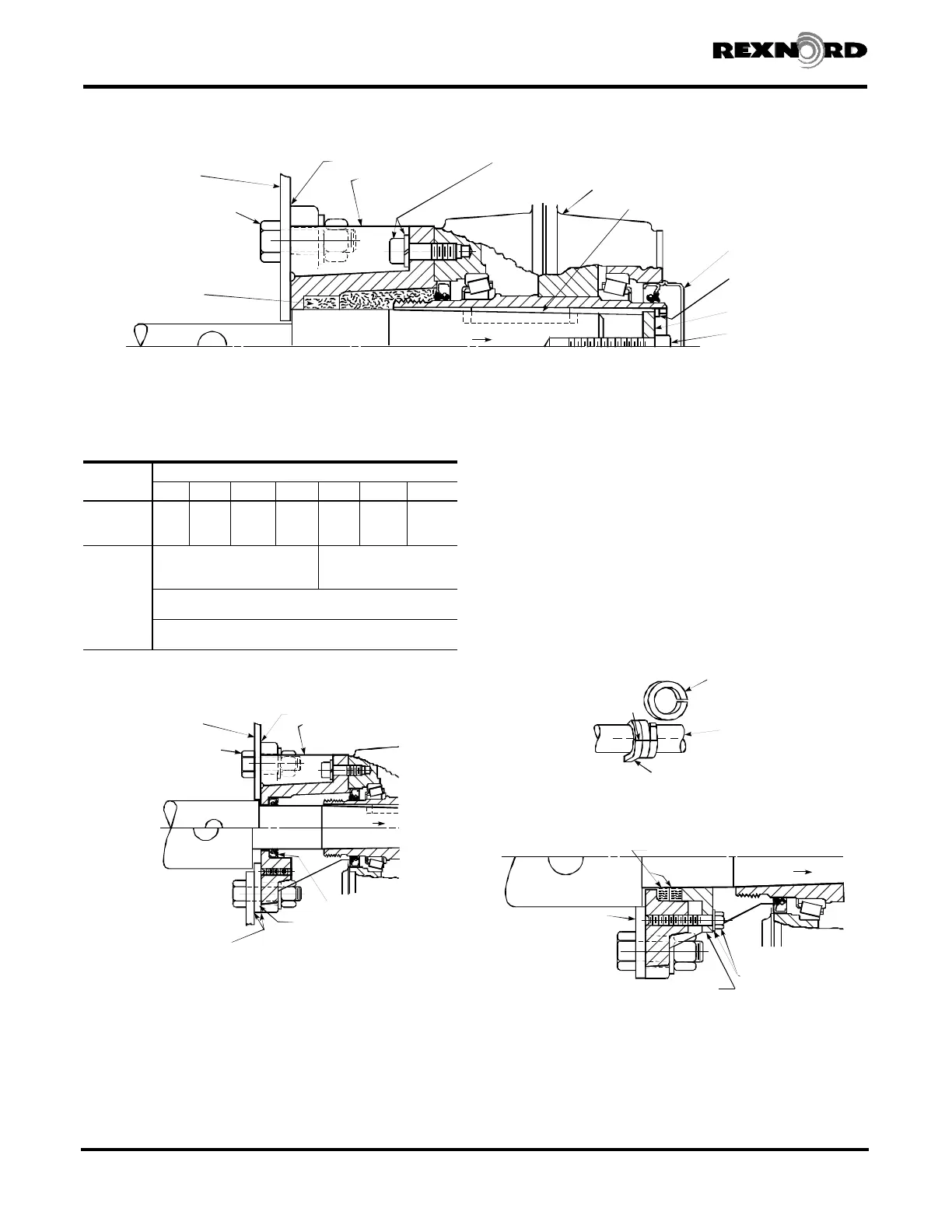

Shaft Mounted Drives Model A
(Page 6 of 44) Sizes 5107-5315
TROUGH END
TROUGH END
MOUNTING FASTENERS
WASTE PACKING
DRIVE SHAFT
TROUGH END GASKET
SEAL HOUSING
INSERT
SEAL HOUSING FASTENERS
WITH LOCKWASHERS
BASIC DRIVE
DRIVE SHAFT KEY
HOLLOW SHAFT COVER
THRUST PLATE
RETAINING RING
THRUST PLATE
DRIVE SHAFT THRUST
PLATE FASTENER
Figure 7
TABLE 4 — Seal Housing & Trough End Fastener
Size – UNC & Tightening Torque –
(Non-Lubricated Fasteners)
Fastener
Location
DRIVE SIZE
5107 5115 5203 5207 5215 5307 5315
Seal Housing
Fasteners
lb-ft (Nm)
.500-13
69 (94)
.625-11
137 (186)
.750-10
245 (332)
.875-9
380 (515)
1.000-8
567 (769)
1.000-8
792 (1074)
1.000-8
792 (1074)
Trough End
Fasteners
lb-ft (Nm)
1.500" Diameter Drive Shaft
.500-13 Fasteners
69 (94)
2.000" & 2.437" Diameter Drive Shafts
.625-11 Fasteners with Nuts — 137 (186)
3.000" & 3.437" Diameter Drive Shafts
.750-10 Fasteners with Nuts — 245 (332)
TROUGH END
TROUGH END
MOUNTING FASTENERS
TROUGH END GASKET
SEAL HOUSING
DRIVE SHAFT INSERT
MECHANICAL LIP SEAL
TROUGH END SPACER
(SIZE 5107 WITH 2.437" &
3.000" DRIVE SHAFTS ONLY
TROUGH END GASKETS
(SIZE 5107 WITH 2.437" &
3.000" DRIVE SHAFTS ONLY
Figure 8
PACKING GLAND RING
AFTER CUTTING
(TWO REQUIRED)
SHAFT
BUTT JOINT
PACKING GLAND ROPE
CUT
Figure 9
PACKING GLAND (TWO RINGS)
DRIVE SHAFT
TROUGH END
COMPRESSION RING
INSERT
COMPRESSION RING
FASTENER WITH
FLAT WASHER
Figure 10
