UL file no. E210730
However, there can be combinations or extension stages with limited or missing
certification. Thus, verify the registration according to the UL marking on the de-
vice.
Loss of UL/CSA conformity due to modifications to the device.
The UL and CSA marking is only valid for the device in its delivery
status. After modifying the device, the UL and CSA conformity is to
be verified.
9 Interfaces
9.1 View
S1
XVID
XSER
XUSB1/2
XUSB3/4
XUSBIN
X1S1
NC
GND 24V
+24V

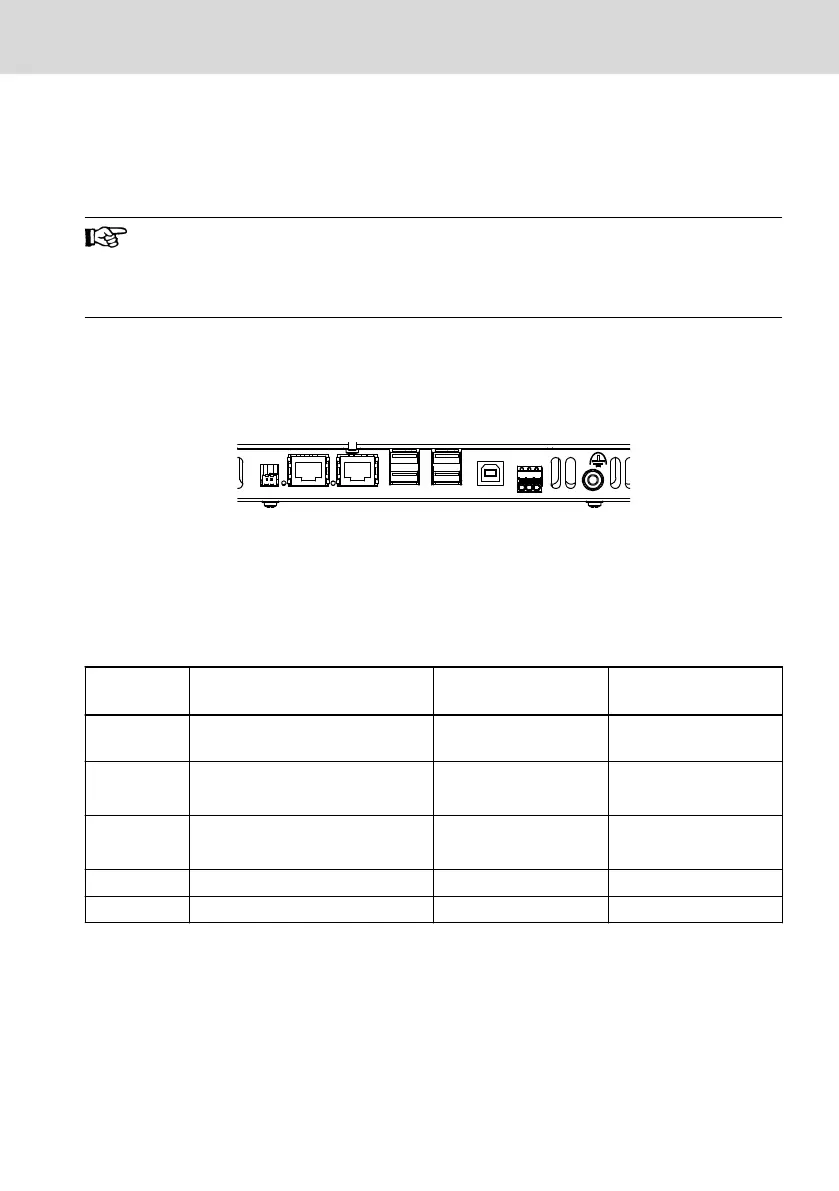

Fig. 9-1: Interfaces on the operating display
9.2 Overview
Designation at
the housing
Connection type Connector type, integra-
ted
Mating connector or ca-
ble (from outside)
X1S1 DC-24-V voltage supply 3-pin, MC1,5/3-
G-3,5THT
3-pin, FK-MCP 1,5/3-
ST-3,5
XUSB1/2 2 USB interfaces USB female connector,
Type A
USB connector,
Type A
XUSB3/4 2 USB interfaces USB female connector,
Type A
USB connector,
Type A
XSER CDI interface, data RJ45 female connector RJ45 connector
XVID CDI interface, screen RJ45 female connector RJ45 connector
VDP 16.3, VDP 40.3, VDP 60.3 Bosch Rexroth AG
Interfaces
DOK-SUPPL*-VDP*XX.3***-IT03-EN-P
13/53
