REXROTH IndraControl VDP 16.3 User Manual

12.5
137.5
137.5
M
4
15.5
41

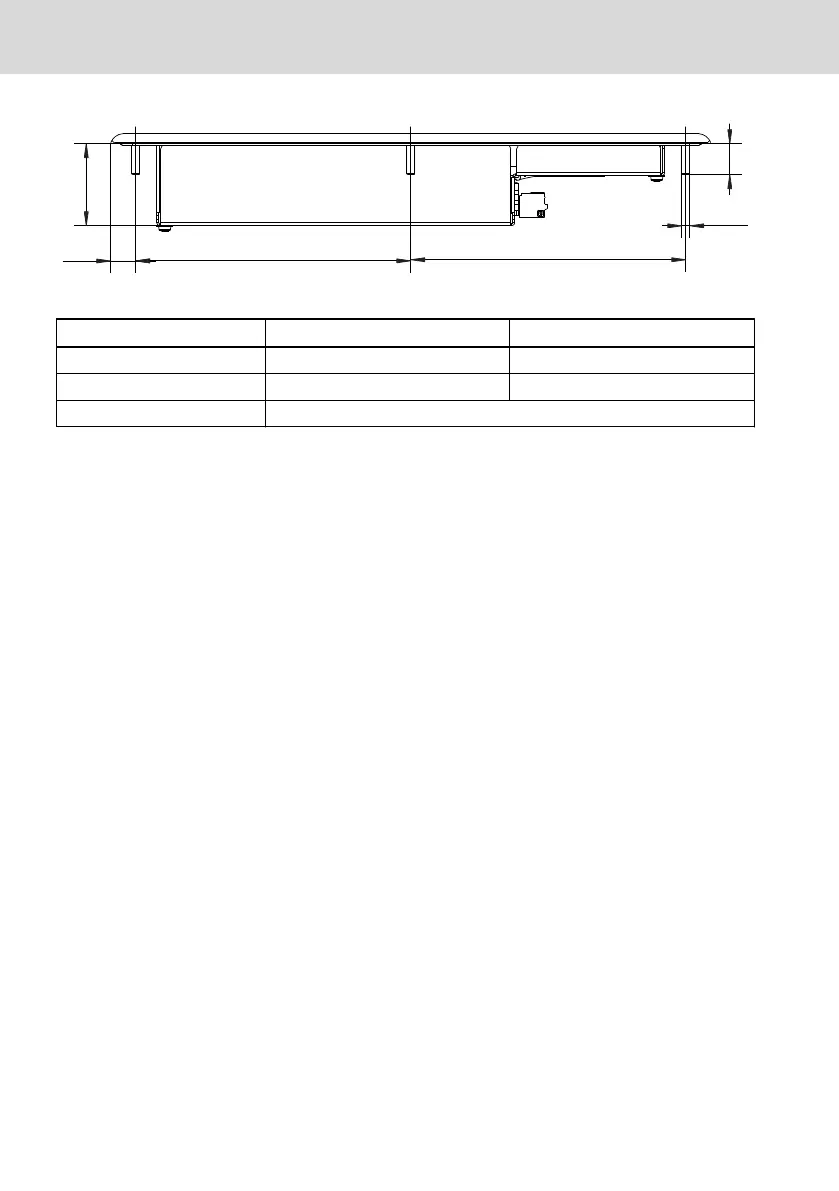

Fig. 10-6: VDP 16.3AK: Left view
VDP 16.3BK + DB VDP 16.3AK
Width 350 mm 360 mm
Height 290 mm 300 mm
Mounting depth 41 mm
Tab. 10-1: Dimensions of the VDP 16.3 devices
10.2.2 IndraControl VDP 40.3
VDP 40.3 standard version
Irrespective of the design of the VDP 40.3 standard variants with keys (M-keys)
or touch screen the front panel width is 407 mm and the height is 370 mm. All
values in the illustrations are given in mm.
Bosch Rexroth AG
Assembly, Disassembly and Electrical Installation
VDP 16.3, VDP 40.3, VDP 60.3
20/53
DOK-SUPPL*-VDP*XX.3***-IT03-EN-P
