INSTALLATION—CONTINUED
Vent Terminal Options
Vent terminal options CC2 (vertical vent configuration) and CC6 (horizontal vent configuration) are shown in Figure 10.

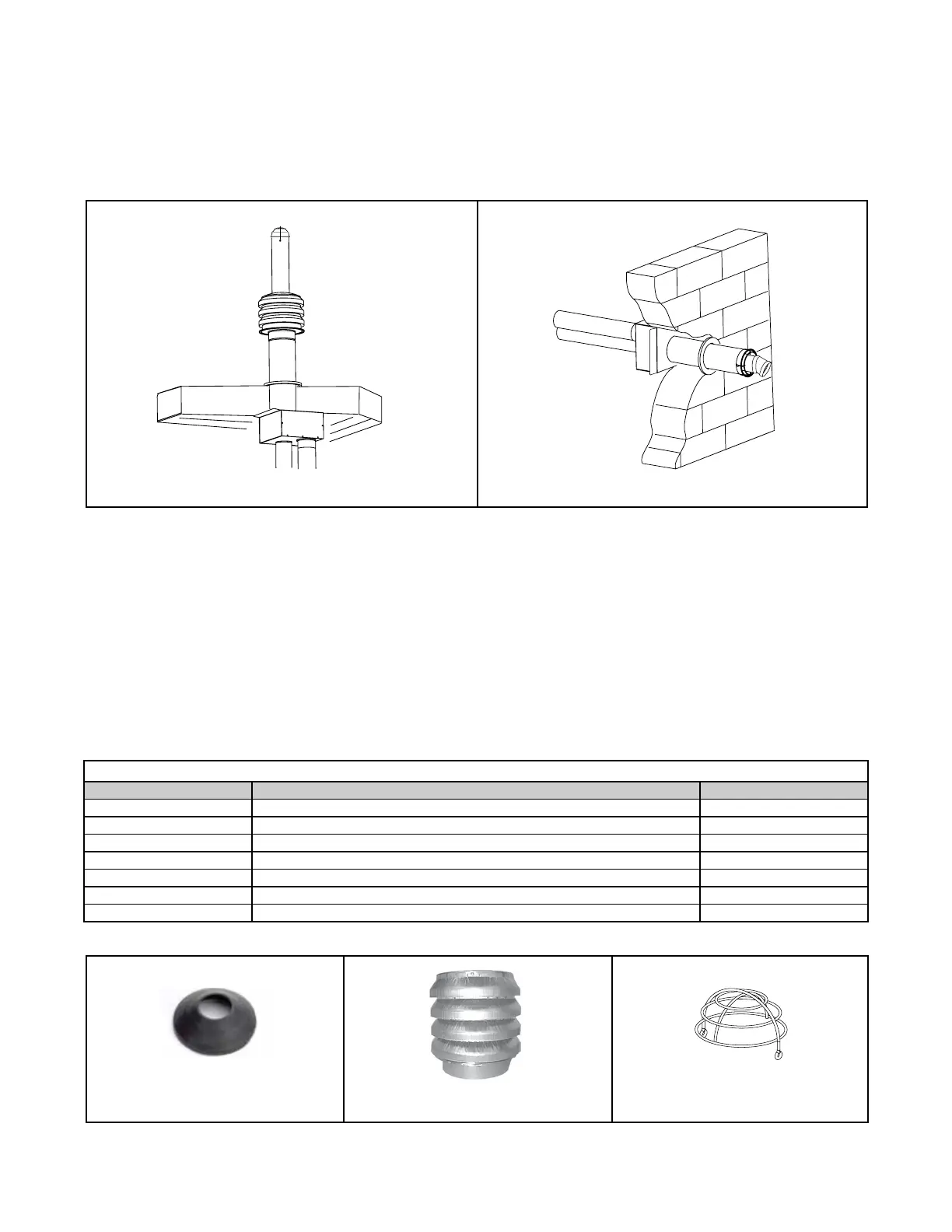

Figure 10. Vent Terminal Options
Vertical Vent Terminal (Option CC2) Installation
• Field-supplied components required for installation of the vertical vent kit are as follows:
• Vent and combustion air piping—6- and 8-inch single-wall galvanized pipe
• Tapered vent pipe diameter reducers and/or increasers, as required
• Thimble (not required if wall is of non-combustible construction)
• Flashing
• Sheet metal screws, tape, and sealant, as required
• Factory-supplied components for installation of the vertical vent kit are listed in Table 14 and shown in Figure 11.
VERTICAL (OPTION CC2)
HORIZONTAL (OPTION CC6)
Table 14. Vertical Vent Terminal/Combustion Air Package (Option CC2) Components
PN Description Qty
221248 Kit package 1
221069 Concentric adapter box with silicone sealing ring (see Figure 8 and Figure 9) 1
221185 Rain collar (see Figure 11) 1
221250 Combustion air inlet (see Figure 11) 1
221091 Cap, condensate drain connection, 4-inch PVC 1
221215 Bird guard (see Figure 11) 1
37661 Screw, self-drilling, #10-16 × 1/2, bird guard 2
Figure 11. Option CC2 Components
RAIN COLLAR
COMBUSTION AIR INLET BIRD GUARD
20
I-UEZ (04-21) 1034347-0
