1701ULSA(EC)--EN, p. 22/30

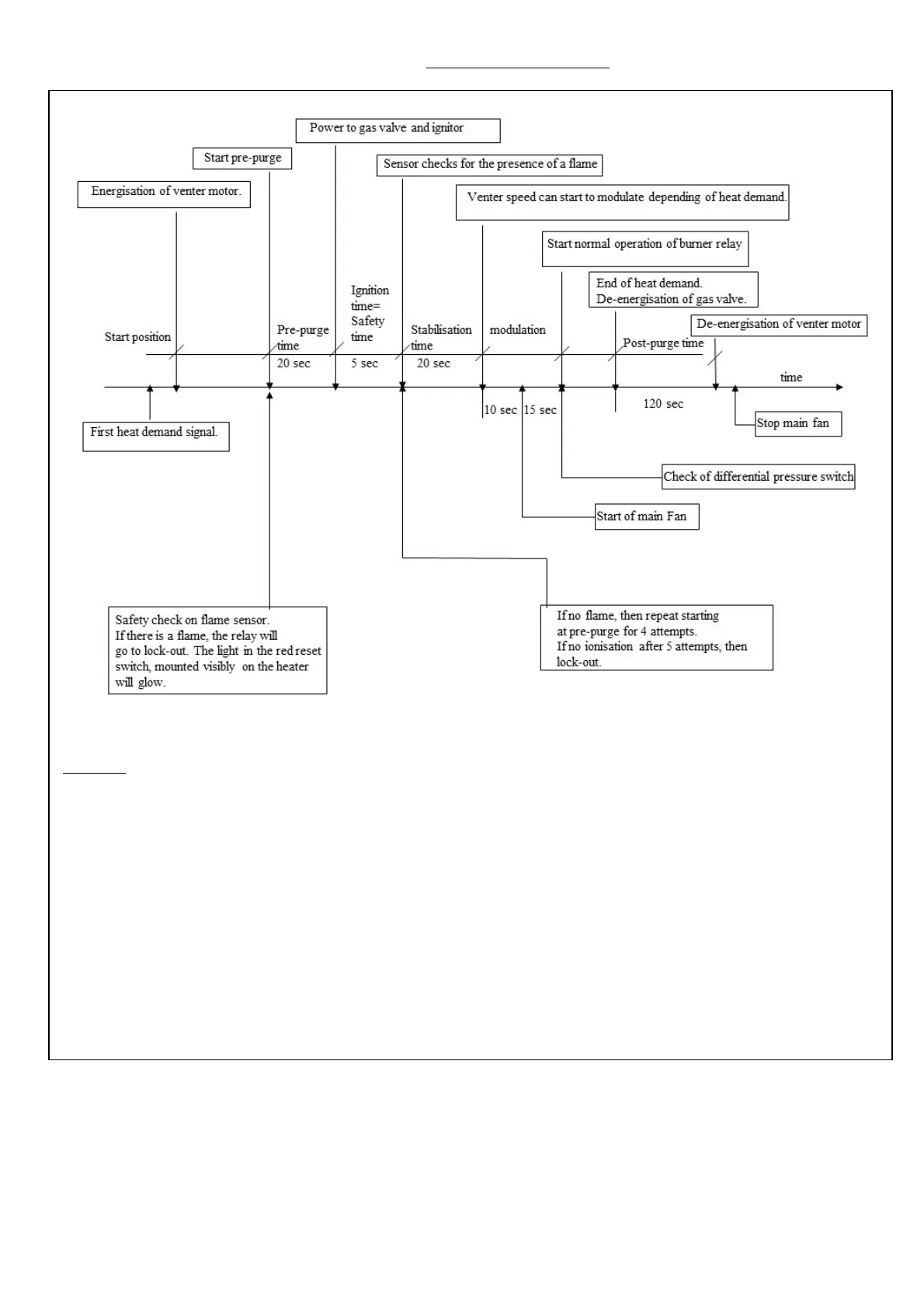

Ignition system – time table



Definitions

Startposition


Pre‐purgetime


Safetytime




Post‐purgetime


Thesystemisnotinlock‐outpositionandcanproceedwiththestart‐upsequenceuponademandfor
heat.

Thisisaperiodof20secduringwhichthecombustionfanoperatesprior
toactivationoftheignition
device.

Thesafetytimeisthedelaybetweenthegasvalvebeingenergisedandtheflamesensorcheckingforthe
presenceofaflame.Thisisaperiodof5seconds.
Note:ifnoflameissensed,theburnerrelaywillattemptignition5
timesbeforegoingintolock‐out
mode.

Thisisthetimeof10secondsbetweenburnershut‐downandthemomentthecombustionfan(venter)is
de‐energized.

