4.DIMENSIONS&CLEARANCES
4.1DIMENSIONS

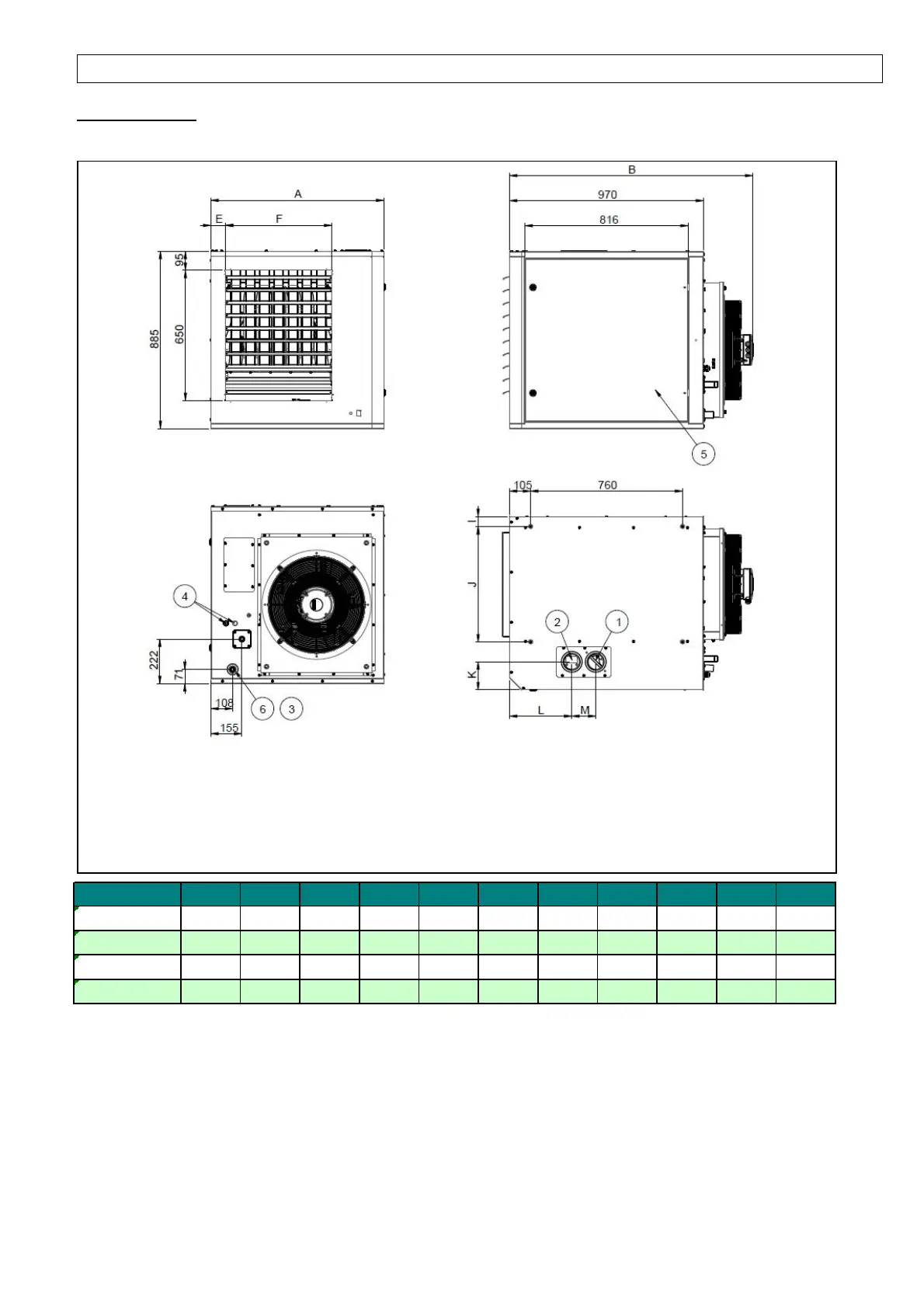

Figure1a:ULSA/ULSAEC025,035,050&075
(alldimensionsinmm,tolerance3mm)
1. Combustion air inlet (D) 4. Electrical connections
2. Flue connection (D) 5. Service panel
3. External gas connection (C) 6. Condensate drain
ULSA/ULSAEC A B C
DE F I J K L M
025 738 1217 1/2"G 80 82 405 55 449 135 311 120
035 738 1217 1/2"G 80 82 405 55 449 135 311 120
050 865 1216 3/4"G 80 74 531 50 576 140 311 120
075 1177 1274 3/4"G 100 129 760 78 860 143 294 140
