Reznor ULSA 035(EC) - Page 9

1701ULSA(EC)--EN, p. 9/30

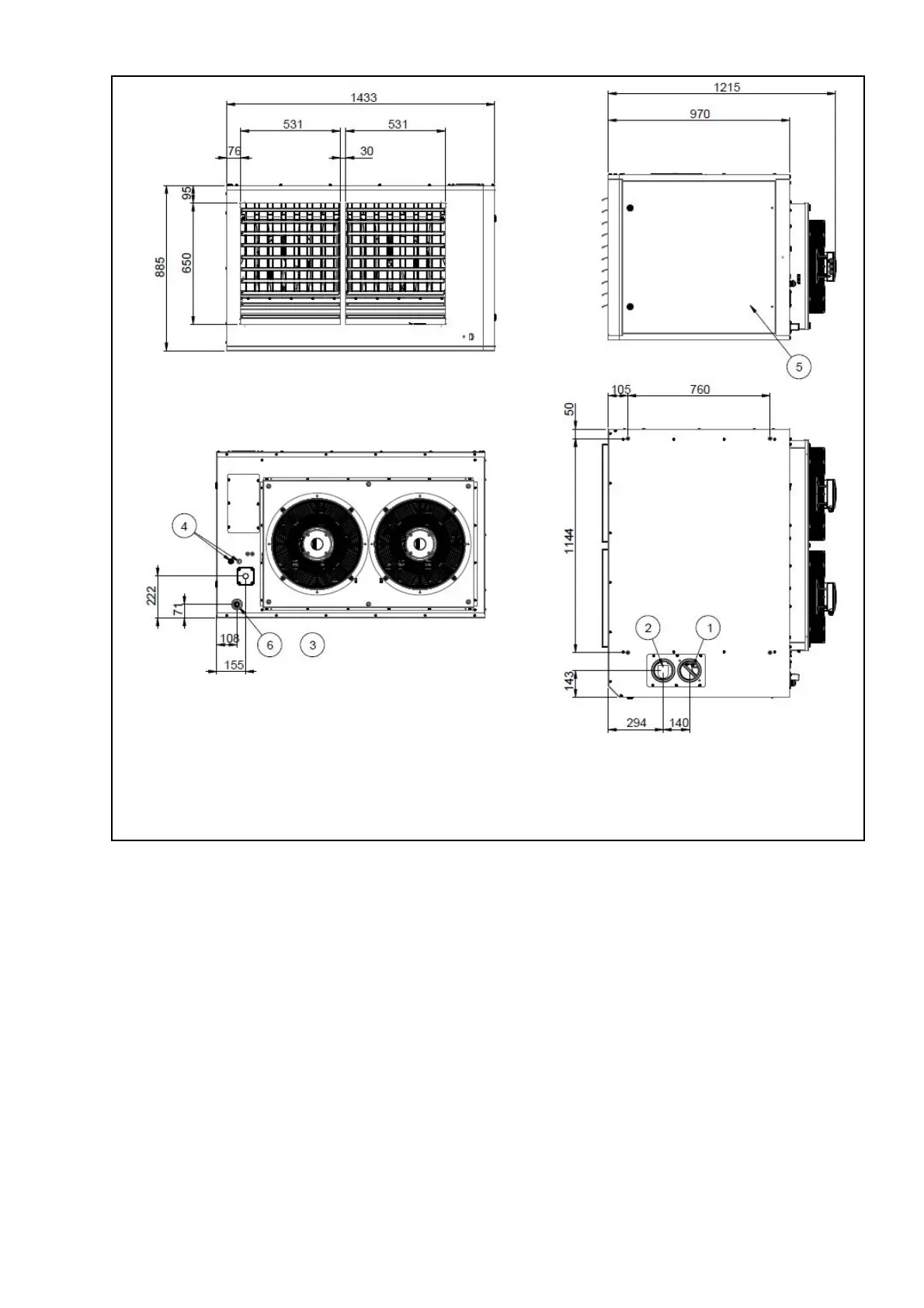

Figure1b:ULSA/ULSAEC100(alldimensionsinmm,tolerance3mm)








1. Combustion air inlet (  100mm) 4. Electrical connections
2. Flue connection (  100mm) 5. Service panel
3. External gas connection (3/4”G) 6. Condensate drain
