17. Attach the two (2) LNB Arm Stow Brackets on the inside of the LNB arm assembly (see diagram
below to determine direction arm brackets and LNB should be placed) using the screws provided and
then secure both the two inner and outer screws that hold the LNB into place.

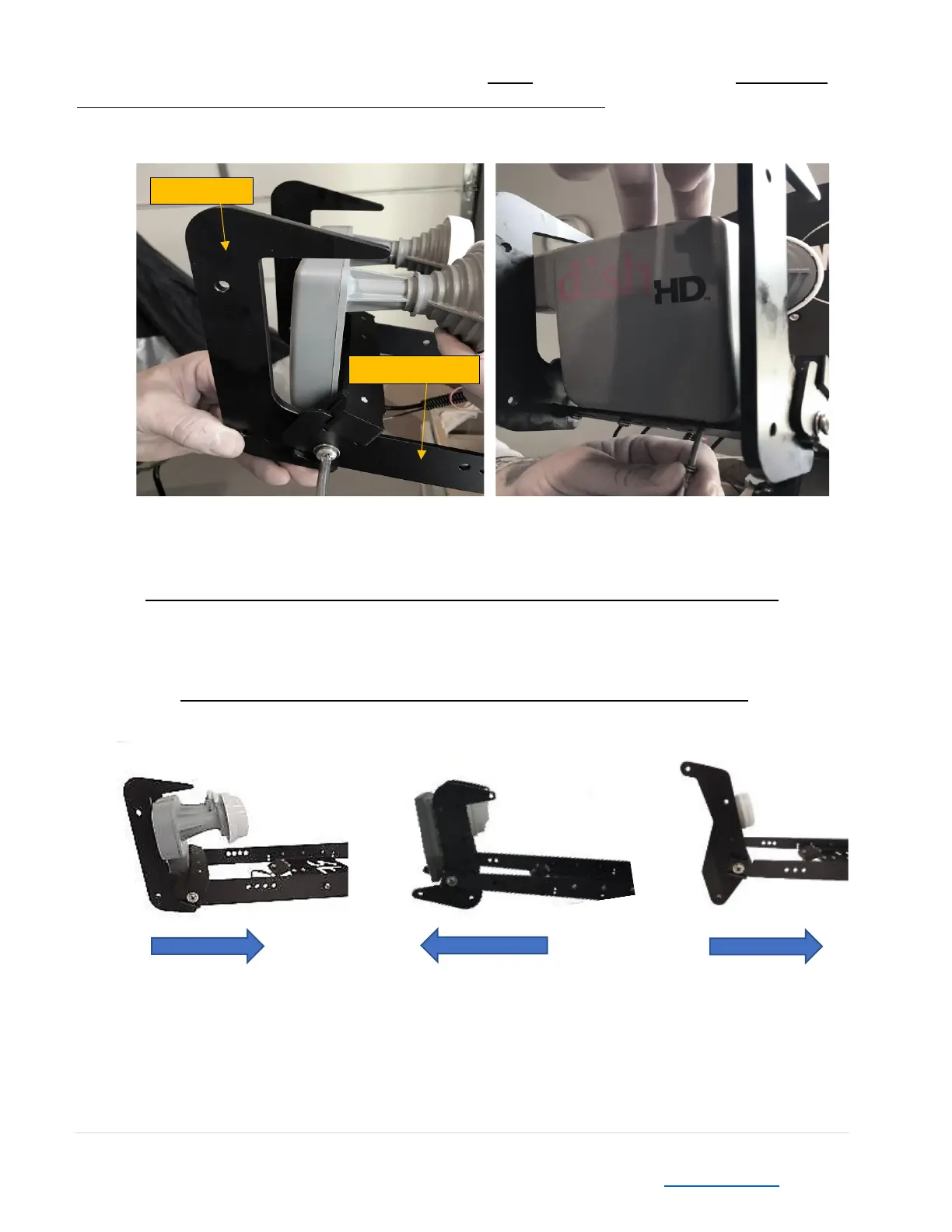

Direction of the Stow Brackets into LNB Arm Assembly
When the dish is STOWED it will apply pressure to these brackets to prevent it from vibrating while
traveling. Slide the Stow Bracket in the direction of the arrow into the LNB Arm Assembly.
It is important that the brackets are properly orientated during assembly.
