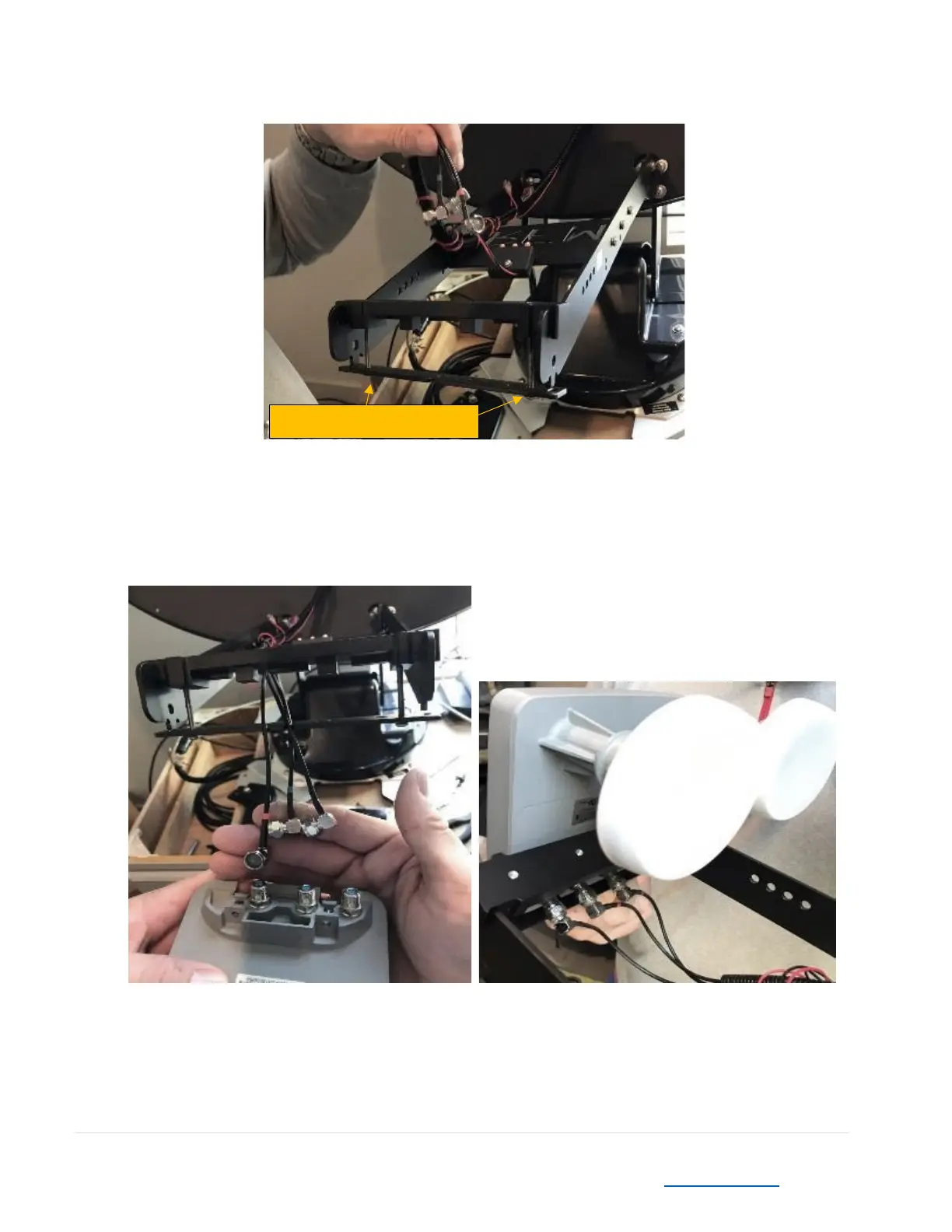

15. Loosen the two (2) outer screws of the LNB Bracket. Do not remove, just loosen to accommodate
the insertion of the LNB between the brackets.
16. Route the LNB cables “through” the LNB brackets and attach to the LNB securely, but do not use
excessive force to tighten these connectors or damage to the coax cable may occur. Slide the LNB
into the LNB Brackets and insert the two (2) screws back into the LNB.
Loosen the 2 outer screws
