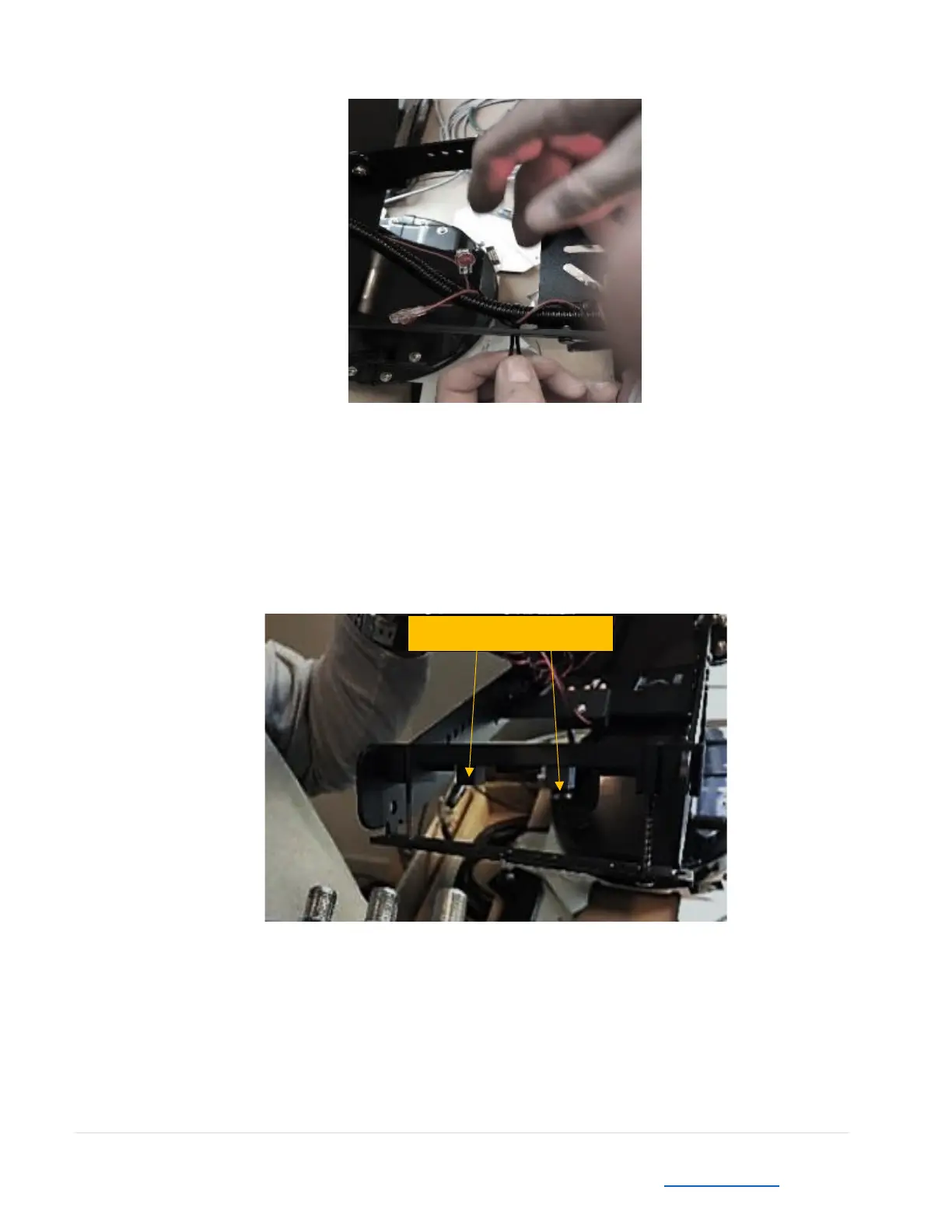

11. Route the Cable Loom down either side of the LNB Arm and secure with Cable Ties (provided).
12. Tuck any excess Cable Loom back through the Reflector. Leave enough out to prevent binding.
13. Lift on the LNB Arm making sure there is no stress on the Cable Loom as the arm is lifted into the
center of the dish.
14. Remove and save the two (2) inner screws on the LNB Bracket located at the end of the LNB Arm.
(Applies to DirecTV may differ w/ Dish Slimline Eastern & Western Arc LNB) These screws are used to
attach the LNB.
Remove two inner screws
