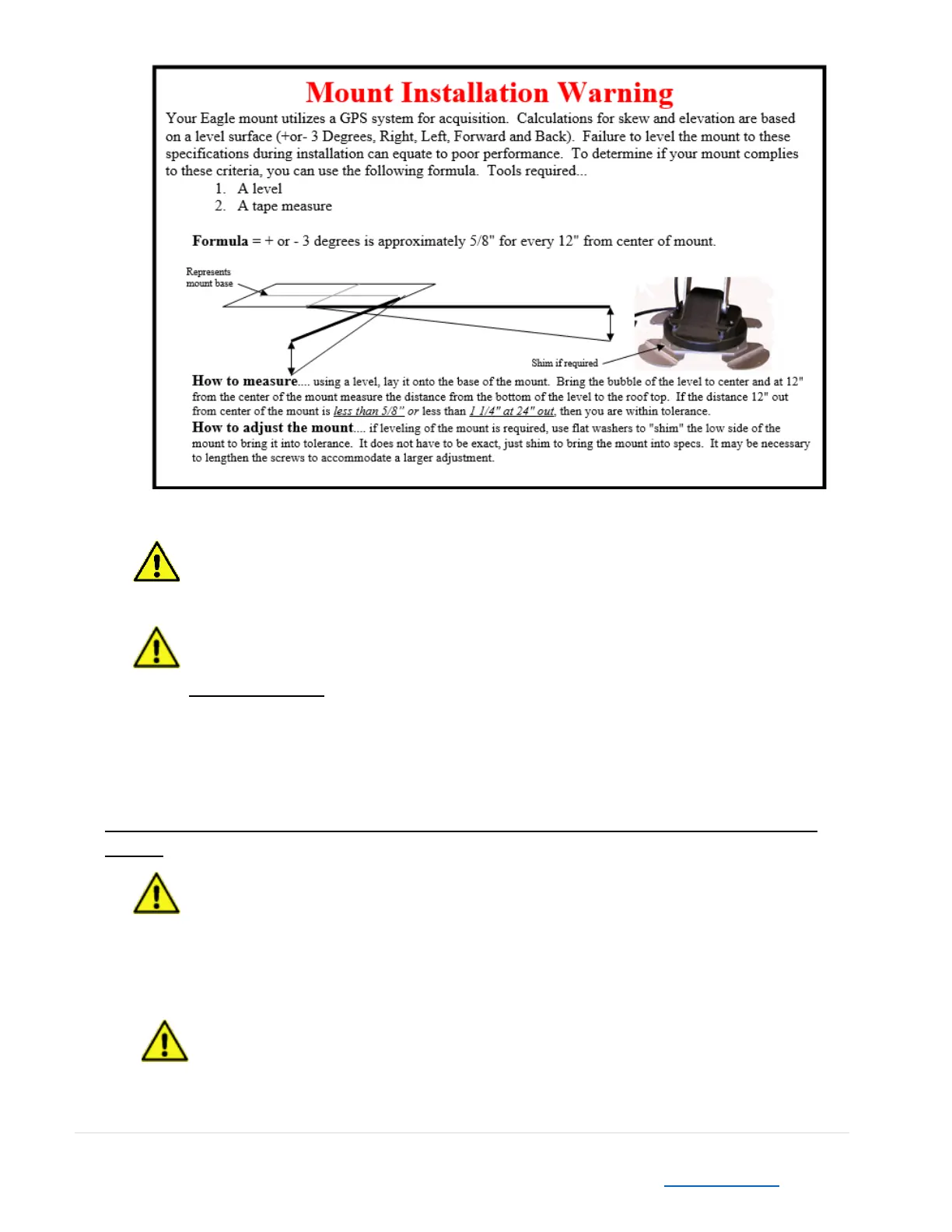

1) Identify the install location and verify the area is clean and clear of debris.
Caution: Mounting surface must be clean for the antenna to properly seal to the roof.
This will help prevent water penetration and allow the antenna to sit level.
Caution: The Eagle antenna must be oriented toward the front of the vehicle. The
antenna reflector must face the rear of vehicle it is being installed on (see photo
after step 12) to prevent damage to the antenna system due to wind forces while
the vehicle is in motion.
2) Identify a cabinet location in the vehicle where the electronics (Controller) will be housed and
where the pass thru hole to the roof will be cut.
3) Verify at least 2 of the mounting feet are over and able to secure to the support beams on the
vehicle.
Caution: A mounting surface that is not strong enough to support the weight of the
antenna may cause structural damage to your vehicle.
4) Inspect the interior structure for existing wires or tubing where the screws will penetrate the roof
of the vehicle.
Caution: Screws that penetrate any existing wires or tubing in the vehicle may cause
damage to existing equipment or be a hazard to personnel.
5) Carefully lift the Antenna on to the roof of the vehicle and to the area of install.
