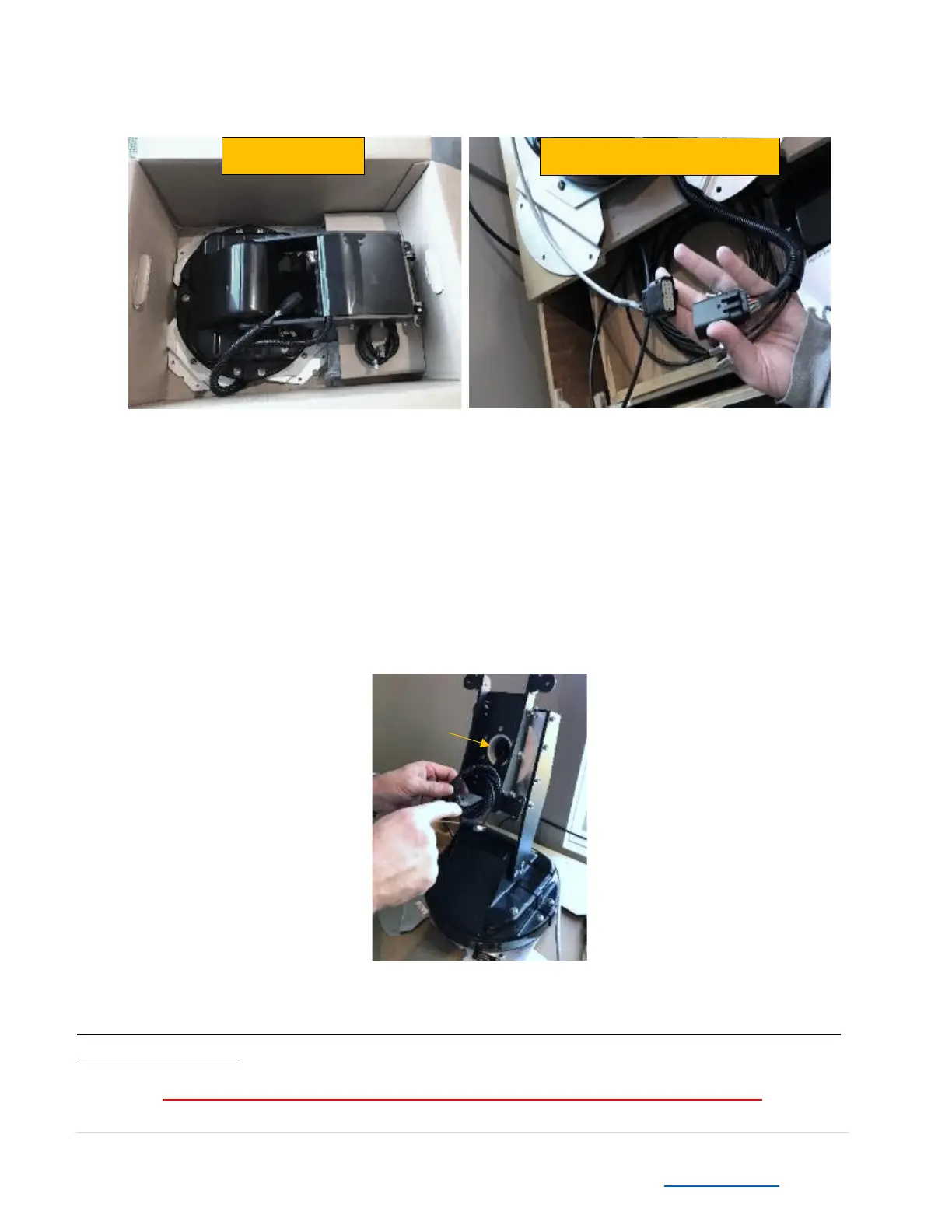

4. Remove the Mount Assembly from the Mount box and position it onto a level surface. Plug the Control
Cable into the Mount Cable as shown.
5. Using a drill battery or a 9 Volt battery for a power source, locate the RED and ORANGE wires on
the Control Cable end. (Refer to instructions in Figure 1 page 27)
a. Touch the RED and ORANGE wires to the Plus and Minus poles on your 9 Volt battery
or power source.
b. Upon touching the DC power source, if the mount arms do not move upward, then
reverse the wires on the contacts of the DC voltage source.
6. Raise the mount to about 20 degrees past vertical (this will make attachment of the Reflector
easier).
Note: If using DirecTV or Dish DPH LNB only a single coax is needed for the install. To protect the
other 2 coaxes (included on the antenna mount) you can tuck them into the skew mechanism.
Make sure the color code of the coax connected to the LNB is the same as the color code connected
at the antenna base.
Fill all coax connectors with dielectric grease to prevent corrosion!
