Chapter 3 – Mounting Raceway Hardware
9450 Duolink Exit Alarm Receiver Hardware Installation Guide Page 25 of 30
0510-1103-G
Chapter 3 – Mounting Raceway Hardware
When all the DuoLinks have been tuned, tested, and permanently
mounted, the next step is to use raceway to conceal any wires that have
not been run inside of the wall.
If the Exit Alarm System is surface-mounted, 1/2” x 3/4” PVC raceway is
used for containing and concealing wires from the DuoLinks. Six-foot long
sections with corners, pieces, and tees are supplied with the purchase of
the system. Double-sided tape is on the six-foot long sections for easy
installation. Additionally, one six-foot 11/2” x 3/4” section of PVC raceway
is supplied for containing wires from the ceiling down to the surface mount
box of the TEC.

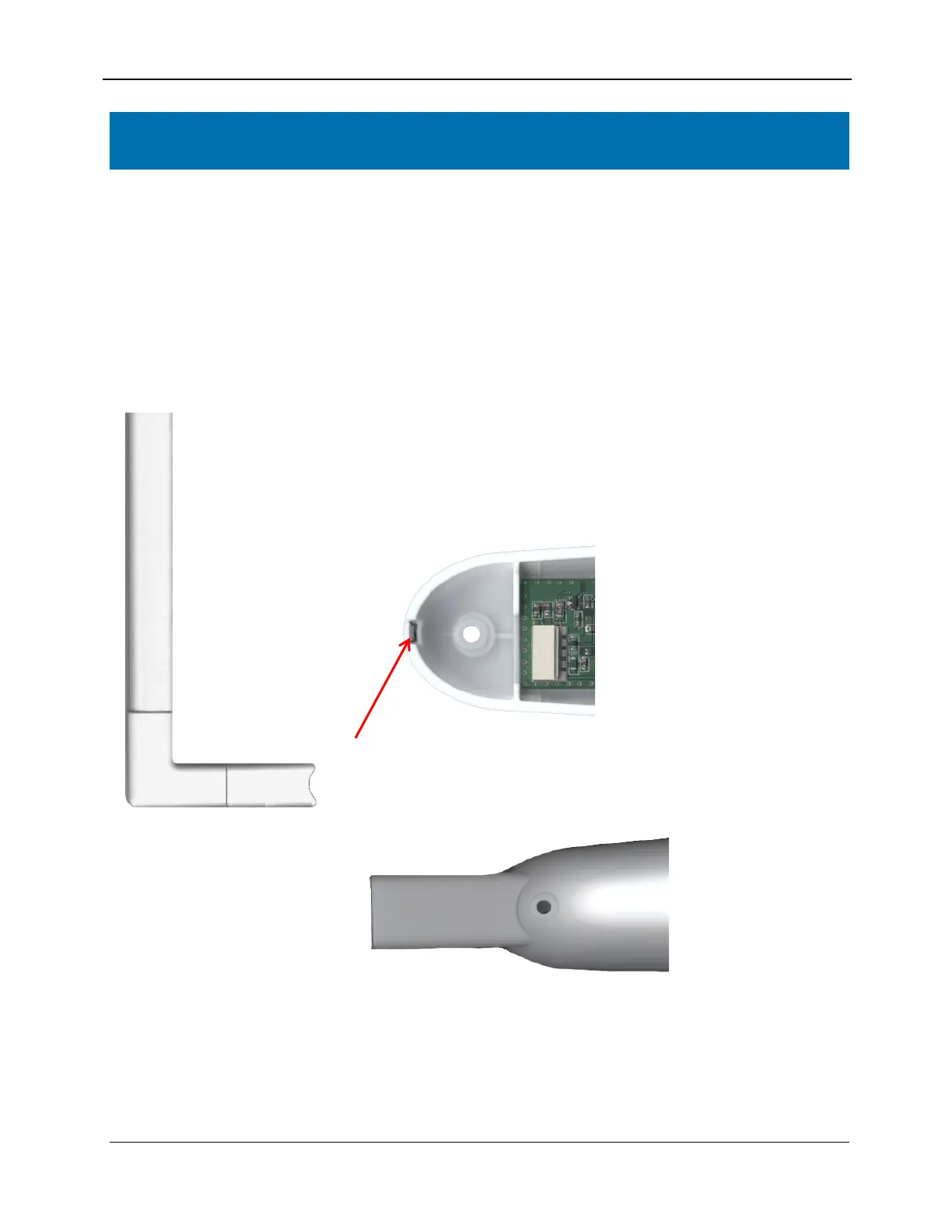

When using the Antenna Splice Adapter
1. Cut out the notch located on the inside of the DuoLink’s plastic
housing
2. Run the wires through the notch, being sure to avoid blocking the hole
used for securing the metal mounting bracket to the plastic housing
Notch
3. Position the Antenna Splice Adapter at the end used to mount the
housing to the metal mounting bracket
