Chapter 1 – Installation
Page 18 of 30 9450 Duolink Exit Alarm Receiver Hardware Installation Guide
0510-1103-G

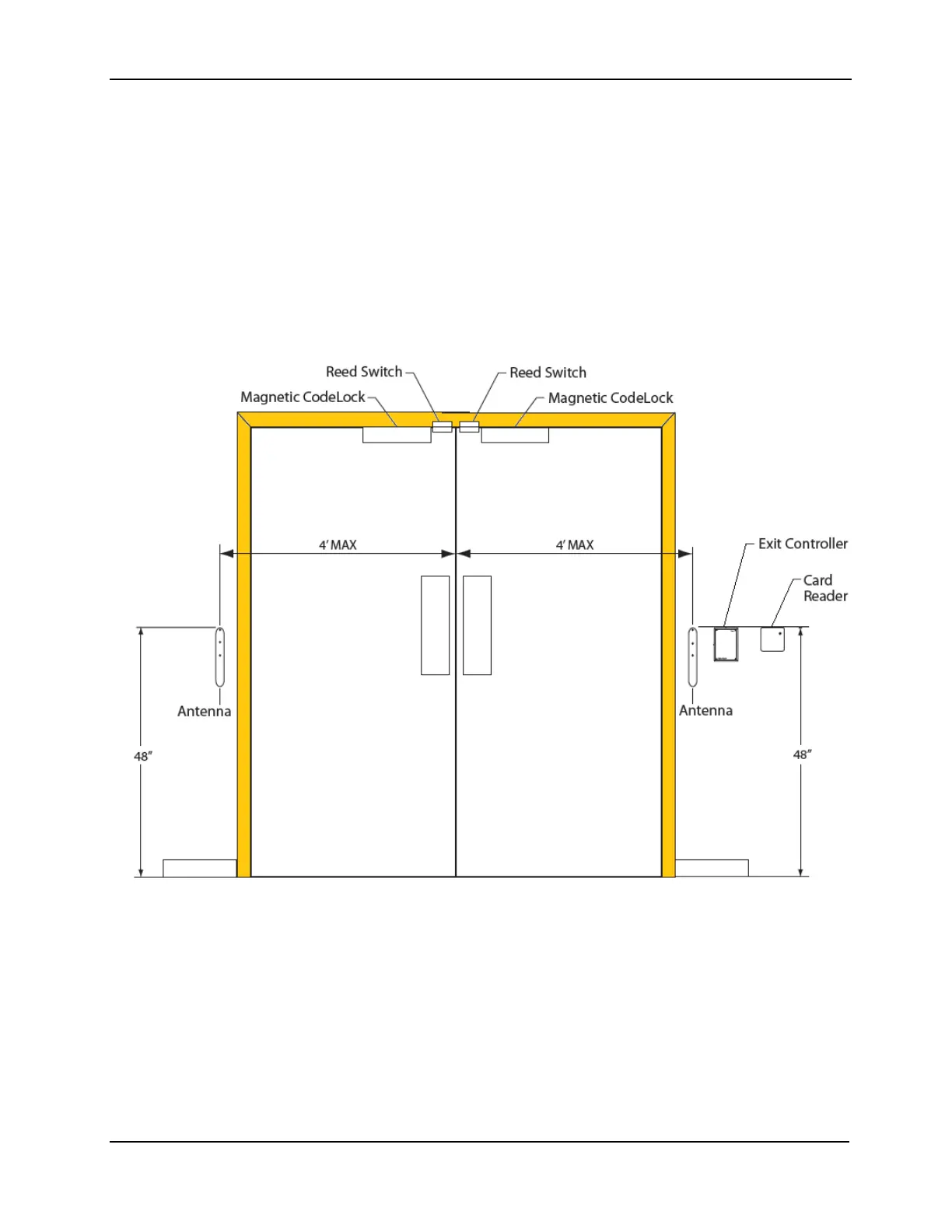

To mount DuoLinks for double doors in a facility with adult
transmitters:
1. Mount the top of the first DuoLink approximately 4' 0'' (according to
the location determination assessment) from the floor in a vertical
direction on the left side of the doorway
2. Mount the top of the second receiver approximately 4’0” (according to
the location determination assessment) from the floor in a vertical
direction on the right side of the doorway
3. Mount the metal mounting bracket first and then mount the plastic
assembly to the metal bracket with the supplied hardware
