Chapter 1 – Installation
9450 Duolink Exit Alarm Receiver Hardware Installation Guide Page 15 of 30
0510-1103-G

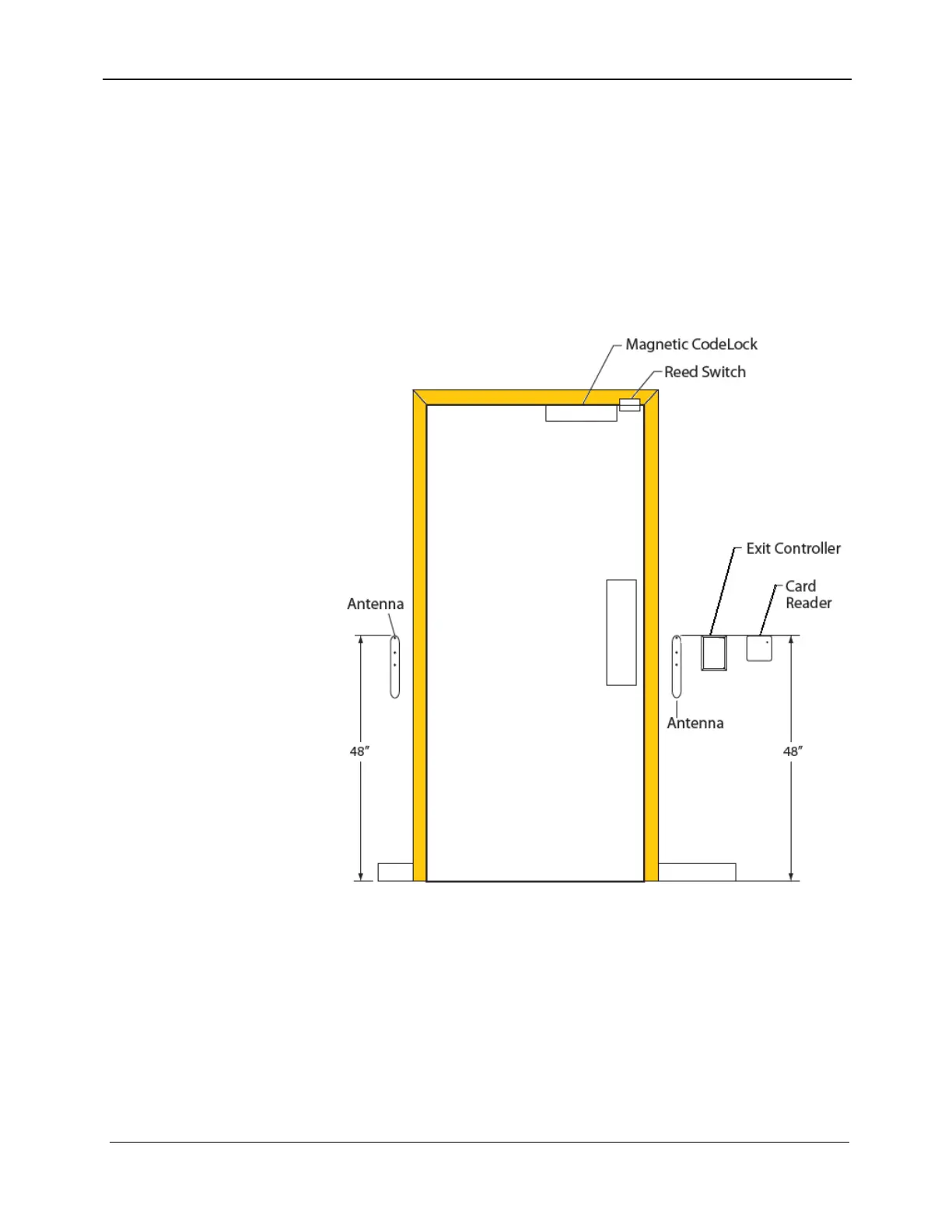

To mount DuoLinks for a single door in a facility with adult
transmitters:
1. Mount the top of the first receiver approximately 48”(according to the
location determination assessment) from the floor in a vertical
direction on the left side of the door
2. Mount the top of the second receiver approximately 48” (according to
the location determination assessment) on the right side of the door
3. Mount the metal mounting bracket first and then mount the plastic
assembly to the metal bracket with the supplied hardware
