Chapter 1 – Installation
Page 16 of 30 9450 Duolink Exit Alarm Receiver Hardware Installation Guide
0510-1103-G
To mount DuoLinks for a single door in a facility with infant and
patient transmitters:

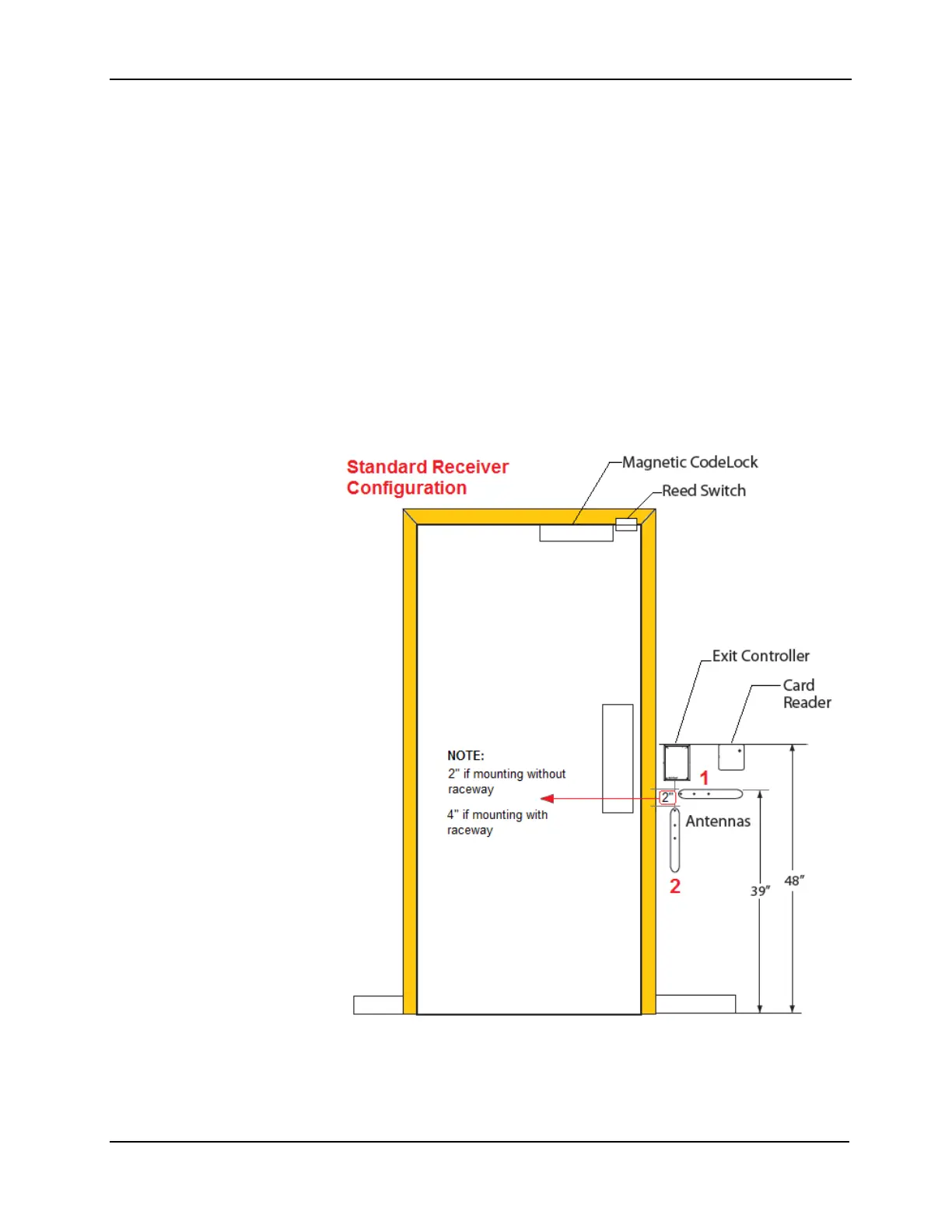

Standard Receiver Configuration
If adequate space is available on one side of the doorway, mount the
receivers as follows:
1. Mount the top of the first receiver approximately 39” (according to the
location determination assessment) from the floor in a horizontal
direction on the side of the door with adequate space
2. Mount the top of the second receiver approximately 3’ (according to
the location determination assessment) from the floor in a vertical
direction on the same side of the door
3. Mount the metal mounting bracket first and then mount the plastic
assembly to the metal bracket with the supplied hardware
