RGBlink RMS 8424S User Manual

Chapter 3: Using Your Product
RMS 8424S User Manual
3.2 Using the Menu

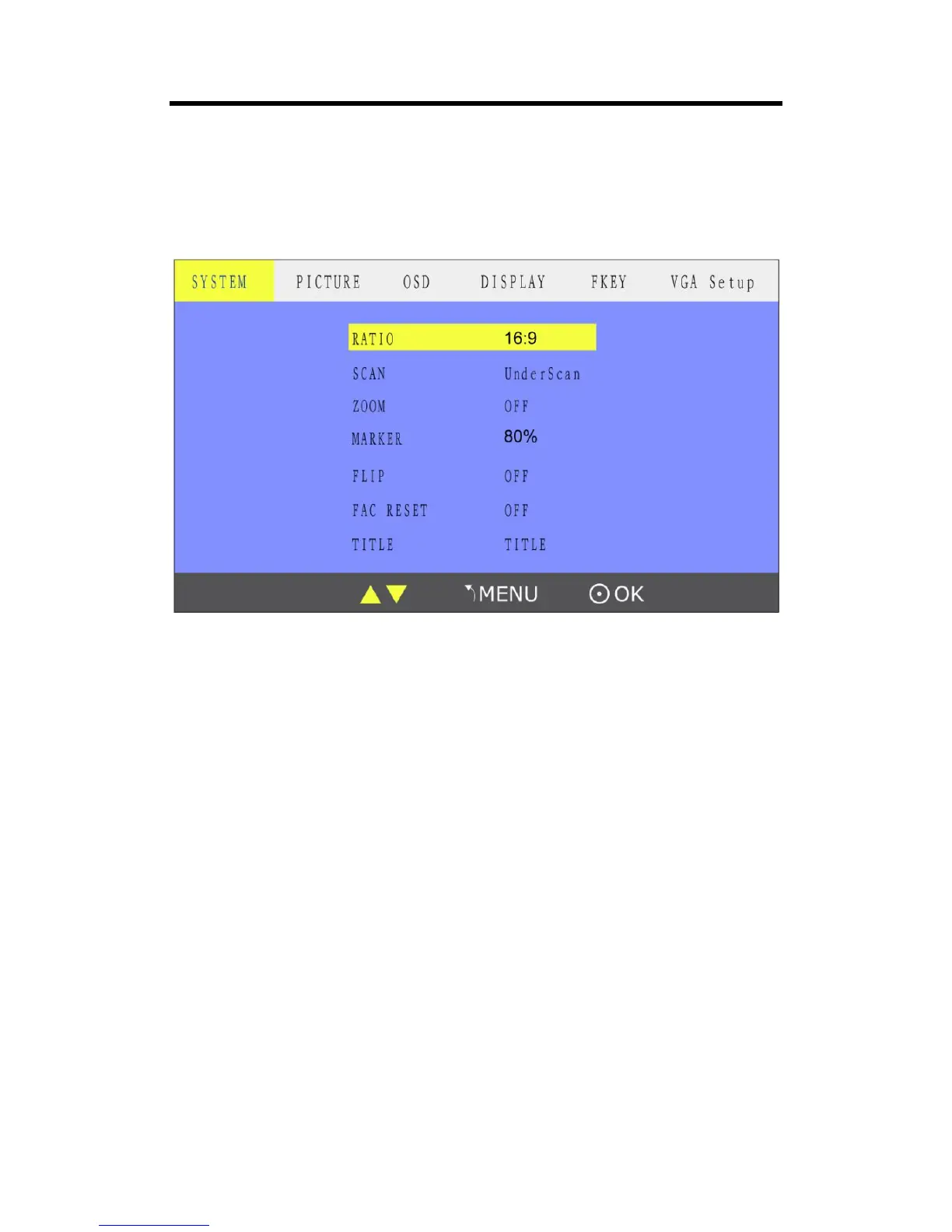

3.2.1 System Submenu
The System Submenu includes:
1. RATIO: Aspect ratio has two options, 16:9 and 4:3.
2. SCAN: “UnderScan” / “OverScan” selection.
3. ZOOM: “OFF”, “Zoom1” and “Zoom2” selection.
Zoom1: Canon DSLR scale zoom-in.
Zoom2: Pixel to Pixel zoom-in.
4. MARKER: Select and set the safe area scale from 80%, 85%, 90% 95% and user. In user mode,
user can adjust the width, height, POS X and POS Y of the marker.
5. FLIP: Select “ON” and push the knob to flip the picture by 180°.
6. FAC RESET: Select “ON” to recover all to factory setting.
7. TITLE: User defined title.
Yellow is the selected letters, rotate the knob to select the letters, and push the knob to input.
Max 10 letters are supported. After setting, push the knob to confirm, the system will display
the user defined title.
