Chapter 1: Your Product
RMS 8424S User Manual

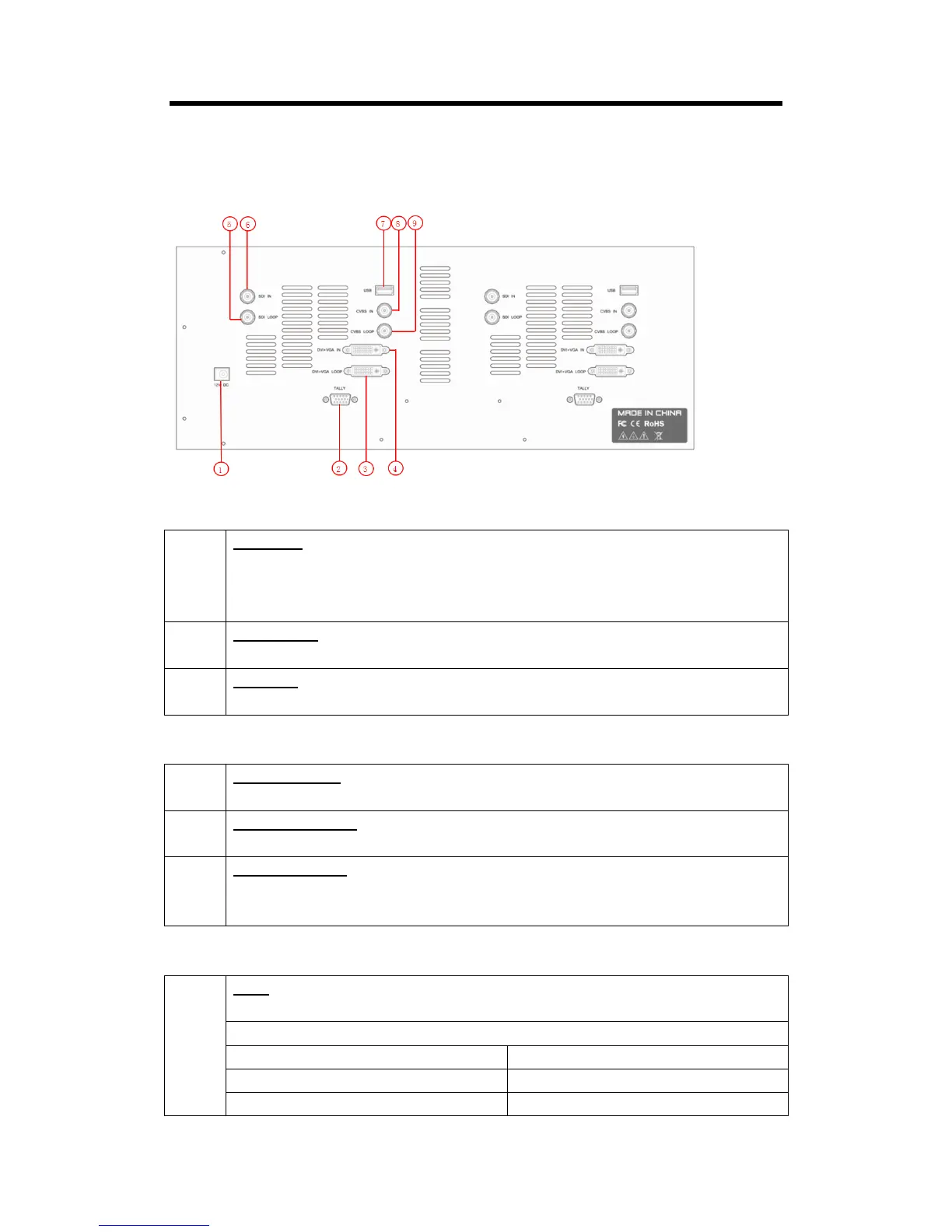

1.2.1 Back Panel
Input Connectors
DVI-I DVI
Standard DVI signals can input. Additionally this DVI port supports VGA with the use of
a DVI to VGA adapter.
The DVI port supports up to HDMI 1.3 if the port format is set to HDMI.
BNC 3G-SDI
Standard 3G-SDI signals can input.
BNC-CVBS
Standard CVBS signals can input.
Output Connectors
DVI-I DVI LOOP
Connect to the DVI input of the next RMS 8424S or the device with DVI input.
BNC 3G-SDI LOOP
Connect to the SDI input of the next RMS 8424S or the device with SDI input.
BNC CVBS LOOP
Connect to the CVBS input of the next RMS 8424S or the device with CVBS input.
Note: it is valid only when switch the signal to AV channel.
Control Connectors
TALLY
TALLY control port (RS-232). The electrical level is as follows:
Electrical level: ≤5V
Voltage
Tally light condition
≤0.5V
ON
≥1.3V
OFF
