Chapter 6: Appendix
RMS 8424S User Manual
6.2 Installing Input Options
SDI is the optional module for RMS 8424S Rack Mount Monitor, it can be installed based on
user’s requirements.

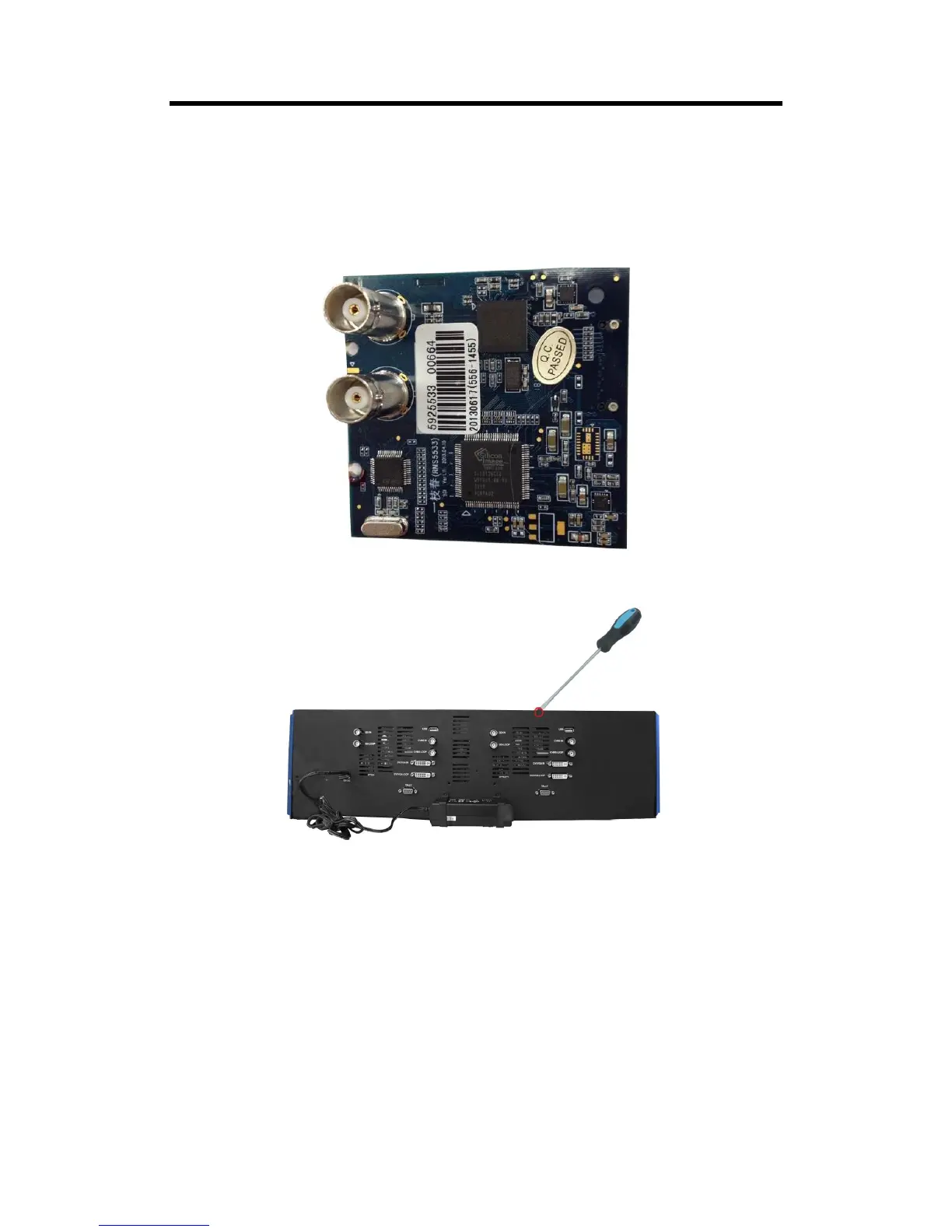

The following is the picture of SDI input module:
Specific installation steps are as follows:
Step 1: Unscrew the screw above the rear panel with the screwdriver, take the rear panel apart.
Step 2: Take two circuit boards inside apart respectively, the red box in circuit board is the area
for SDI input module installation.
