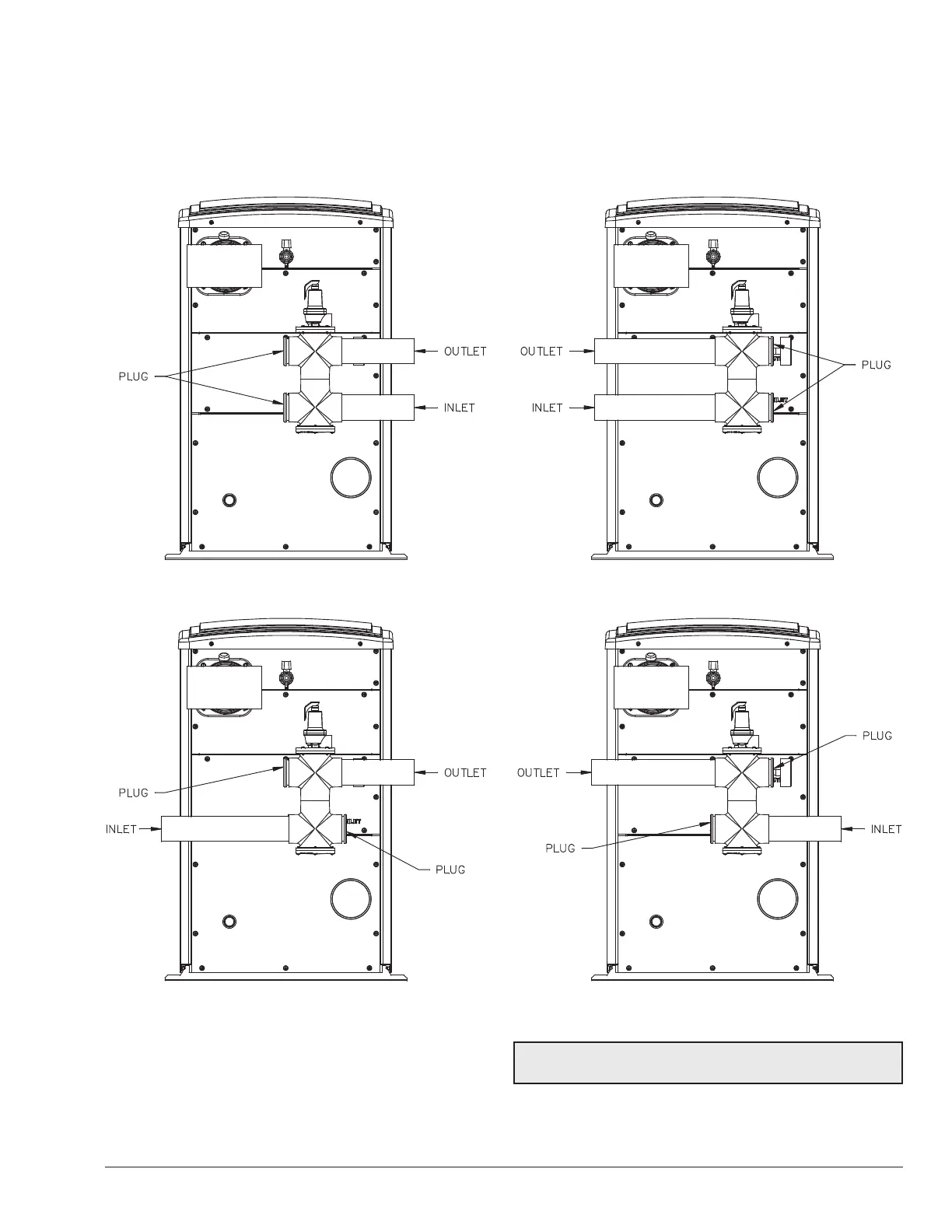

STANDARD RIGHT-HAND CONNECTIONS LEFT-HAND CONNECTIONS
LEFT-IN / RIGHT-OUT CONNECTIONS RIGHT-IN / LEFT-OUT CONNECTIONS
F10334
Plumbing—Water Connections


below.
Loose Plumbing Parts Setup
The loose parts bag contains the pieces needed to connect
          
options are recommended for the installer as shown in the
following images.
Figure 22. 
NOTE: Use appropriate CPVC or CPVC to PVC transition
primer and glue for attachments.
