Unpacking
21
2

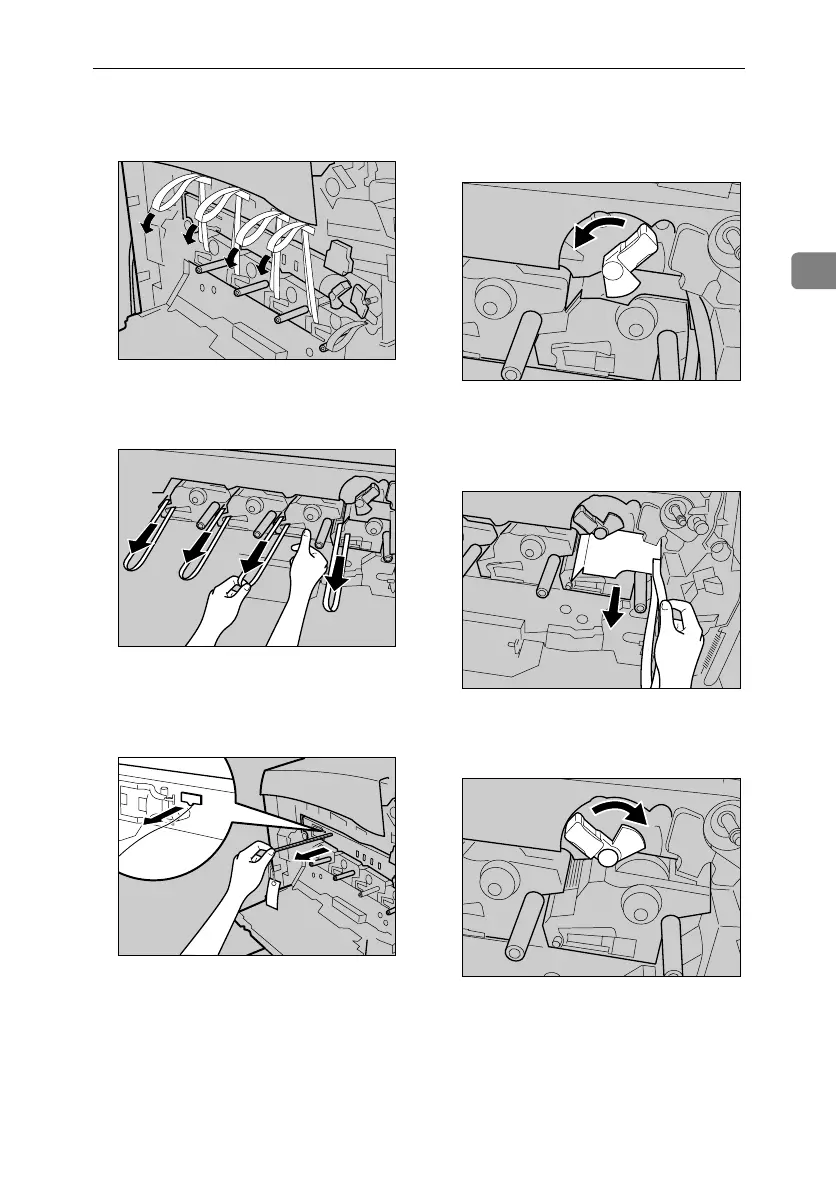

F Remove the end of the tape from
the printer.
G Remove the four pieces of tape
from the photo conductor unit.
H Remove the securing pin, as
shown, from the transfer unit.
Pinch it, and then pull it out.
I Turn the green lever of the trans-
fer unit counterclockwise to un-
lock the unit.
J Remove the protective sheet, as
shown. Pinch the orange tape,
and then pull it out.
K Turn the green lever clockwise to
lock the unit.
AET802S
AET803S
AET804S
AET805S
AET806S
AET146S
GaiaP1GB_Setup-F4_FM_forPaper.book Page 21 Friday, June 3, 2005 7:50 AM
