Installing Options
40
3

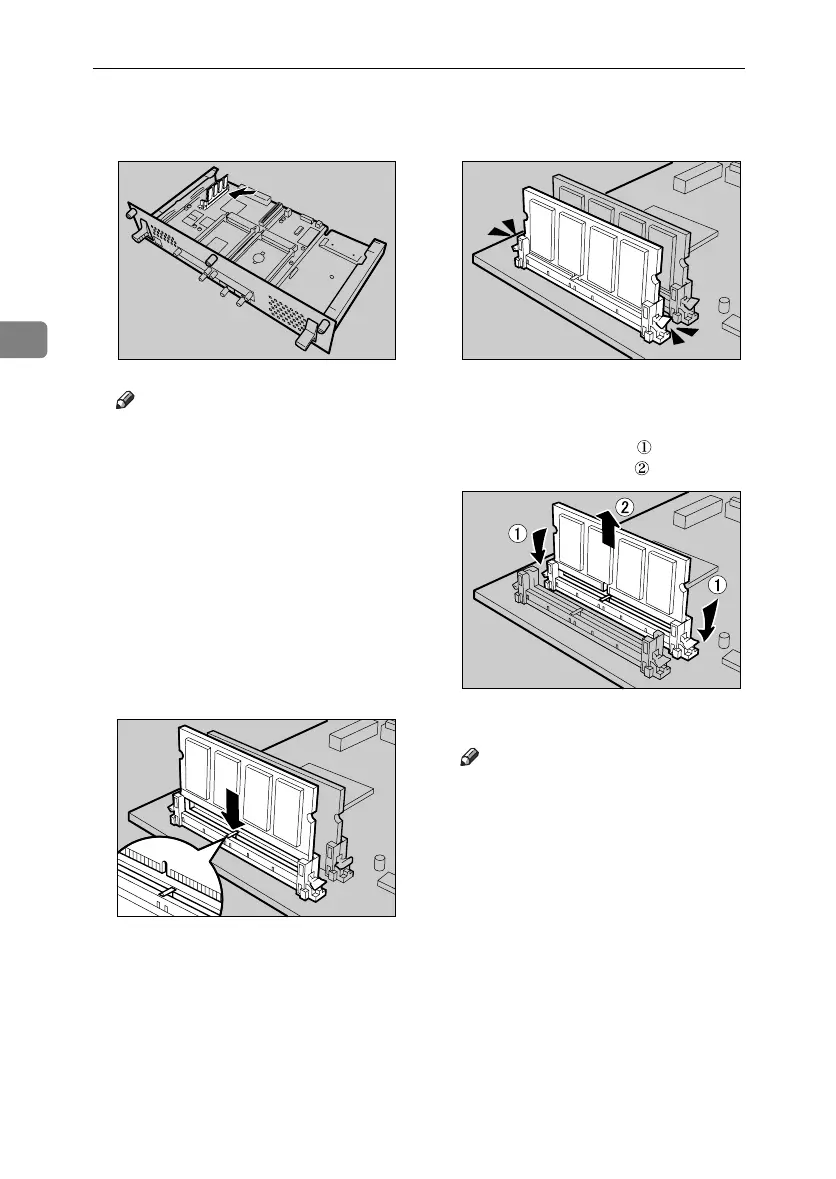

E You must install the SDRAM
module as shown.
Note
❒ Two slots are provided for the
SDRAM modules. The default
SDRAM module is installed in
the inner slot. To install addi-
tional memory, attach an addi-
tional SDRAM module to the
outer slot, or replace the default
SDRAM module.
F When installing an SDRAM mod-
ule in a vacant slot, align the notch
of the SDRAM module with the
slot, and then insert the module
vertically.
G Press down the SDRAM module,
until it clicks into place.
H When replacing the default
SDRAM module, press down the
levers on both sides ( ) to remove
the default module ( ).
Install a new SDRAM module.
Note
❒ To increase memory capacity to
the maximum of 512 MB, re-
move the default SDRAM mod-
ule, and then install two 256 MB
SDRAM modules.
I To install other options on the
controller board, follow the ap-
propriate installation proce-
dure(s), and then screw down the
controller board cover.
AET067S
AET076S
AET077S
AET078S
GaiaP1GB_Setup-F4_FM_forPaper.book Page 40 Friday, June 3, 2005 7:50 AM
To Next Page
